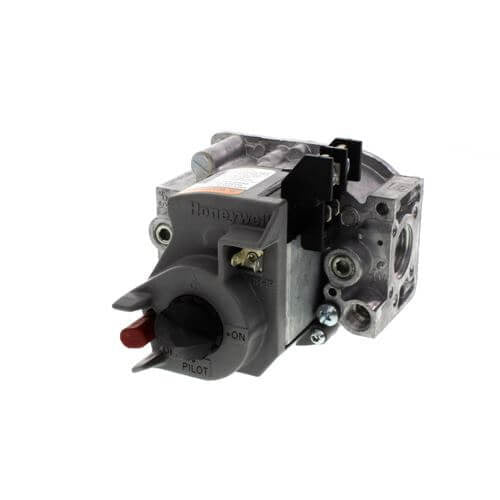

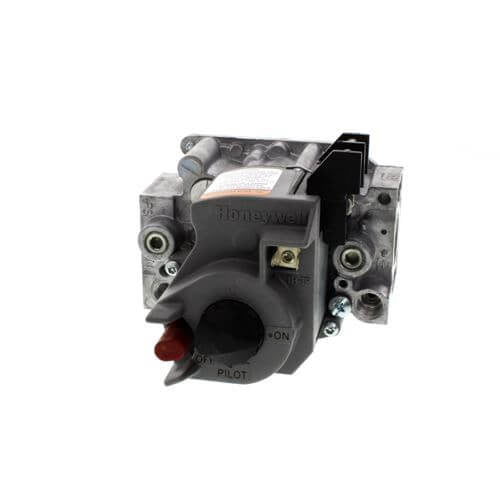

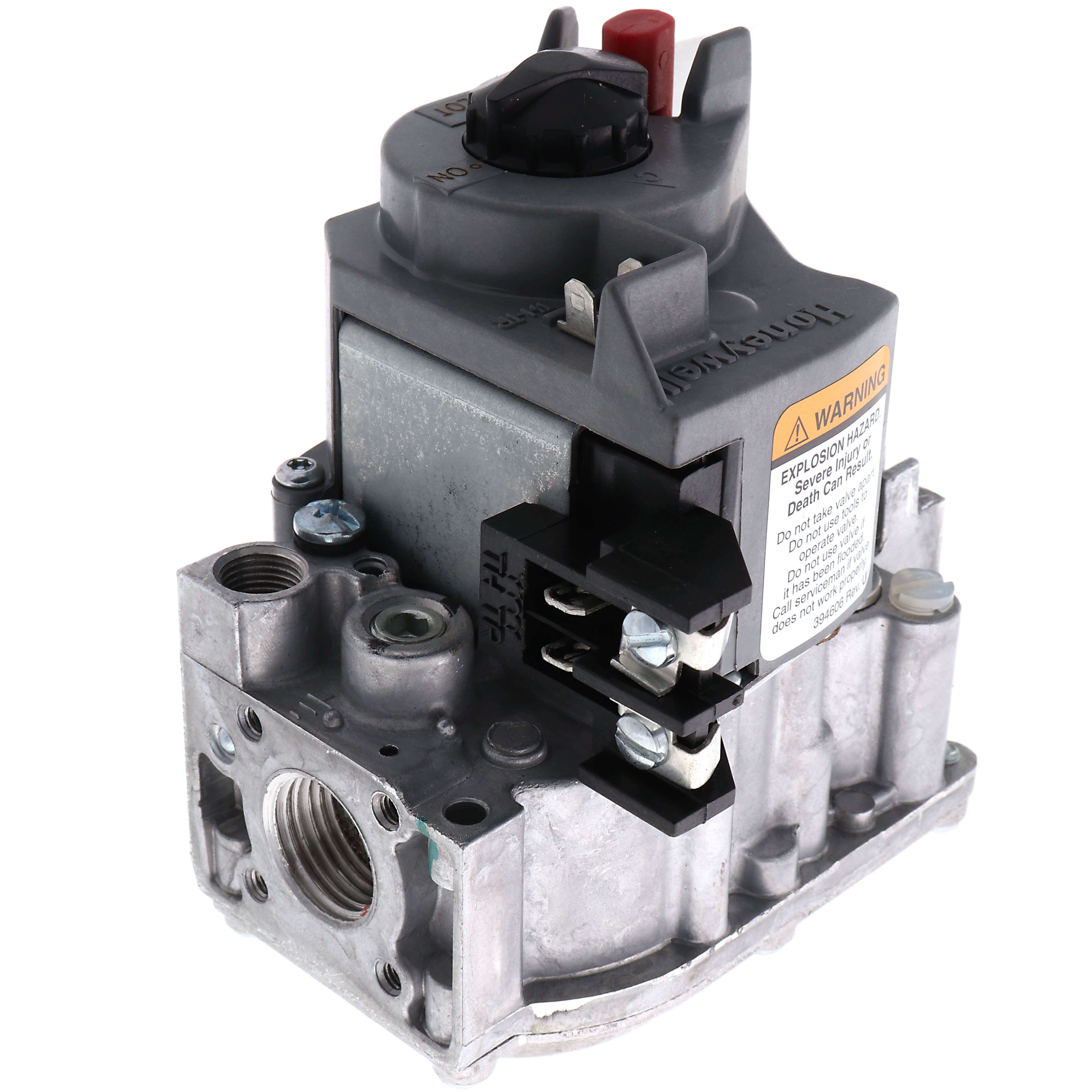

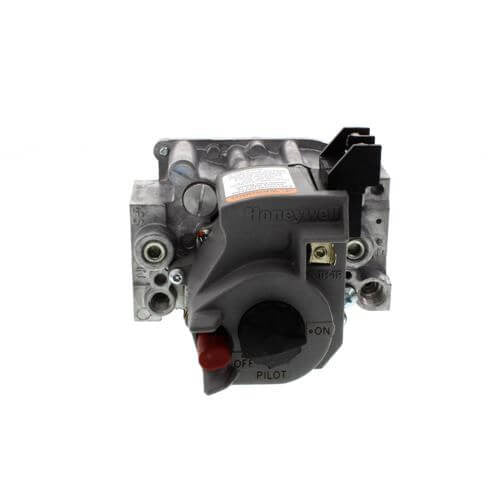

Resideo VR8200H1251 Gas Control Valve 24 Vac 1/2 Inch Slow Opening

Product Description

The Resideo VR8200H1251 Gas Valve is an essential component for 24 Vac, gas-fired, standing pilot appliances. Engineered for safety and efficiency, this model is designed for a slow opening operation and comes with a natural to LP conversion kit.

• Equipped with dual automatic operators and a servo pressure regulator.
• Features a compact, sturdy design with manual valve operation.
• Supports natural and LP gas with simple conversion capabilities.

Product Highlights

The valve's servo regulator ensures consistent gas output pressure despite fluctuating supply pressures, making it highly reliable in various operating conditions. Its slow opening characteristic reduces system shocks, enhancing equipment longevity.

Product Information

Standard Information

• Temperature Range: 0 to 175°F
• Ignition Type: Standing Pilot

Technical Specifications

• Pressure Ratings: 0.5 psi
• Inlet/Outlet Size: 1/2 inch
• Capacity: 130,000 BTU/hr maximum
• Electrical Ratings: 24 Vac
• Mounting Options: Flexible mounting up to 90 degrees from upright
• Approvals: AGA, CGA Design Certified
