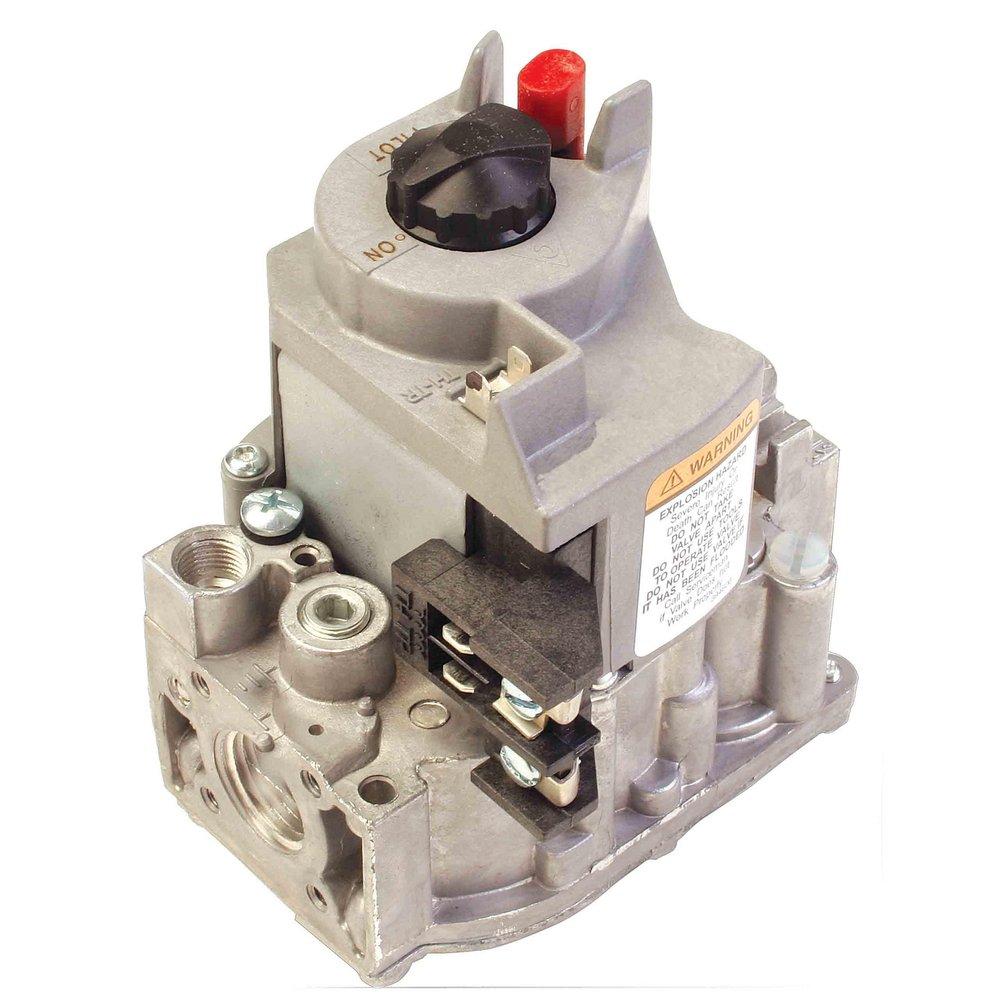

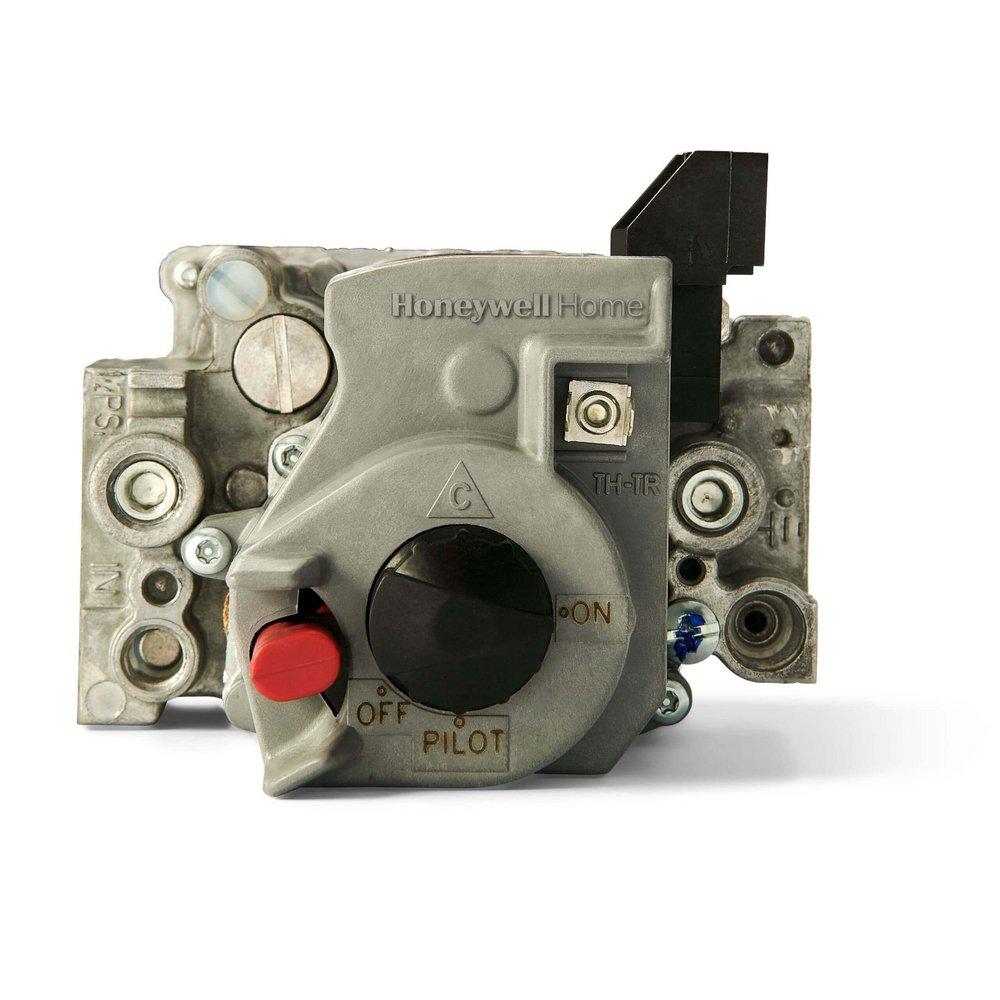

Resideo VR8200A2744 1/2 In 24V Standing Pilot Gas Valve - 24V

Product Description

The Resideo VR8200A2744 is a 24V standing pilot gas valve with a half inch inlet and outlet. This gas valve is designed for use in gas-fired appliances with capacities ranging from twenty to two hundred CFH. It features two automatic valves and includes safety features to meet codes requiring dual safety shutoff.

• Compact design for easy installation.
• Manual control with two automatic operators for enhanced safety.
• Conversion kits available for natural gas to LP and vice versa.

Product Highlights

This valve is suitable for various heating applications and provides consistent performance under varying gas supply pressures.

Product Information

Standard Information

• Manufacturer: Resideo
• Type: Single Stage

Technical Specifications

• Input Voltage: 24 Vac
• Inlet/Outlet Size: 1/2 in. x 1/2 in.
• Pressure Regulator Setting: 3.5 in. wc
• Capacity: 130,000 BTU/hr (max)
• Dimensions: 5.85 in. (Length) x 4.85 in. (Width) x 4.1 in. (Height)
• Weight: 2.39 lb
• Operating Temperature Range: 0°F to 175°F
• Mounting Orientation: 0 to 90 degrees
