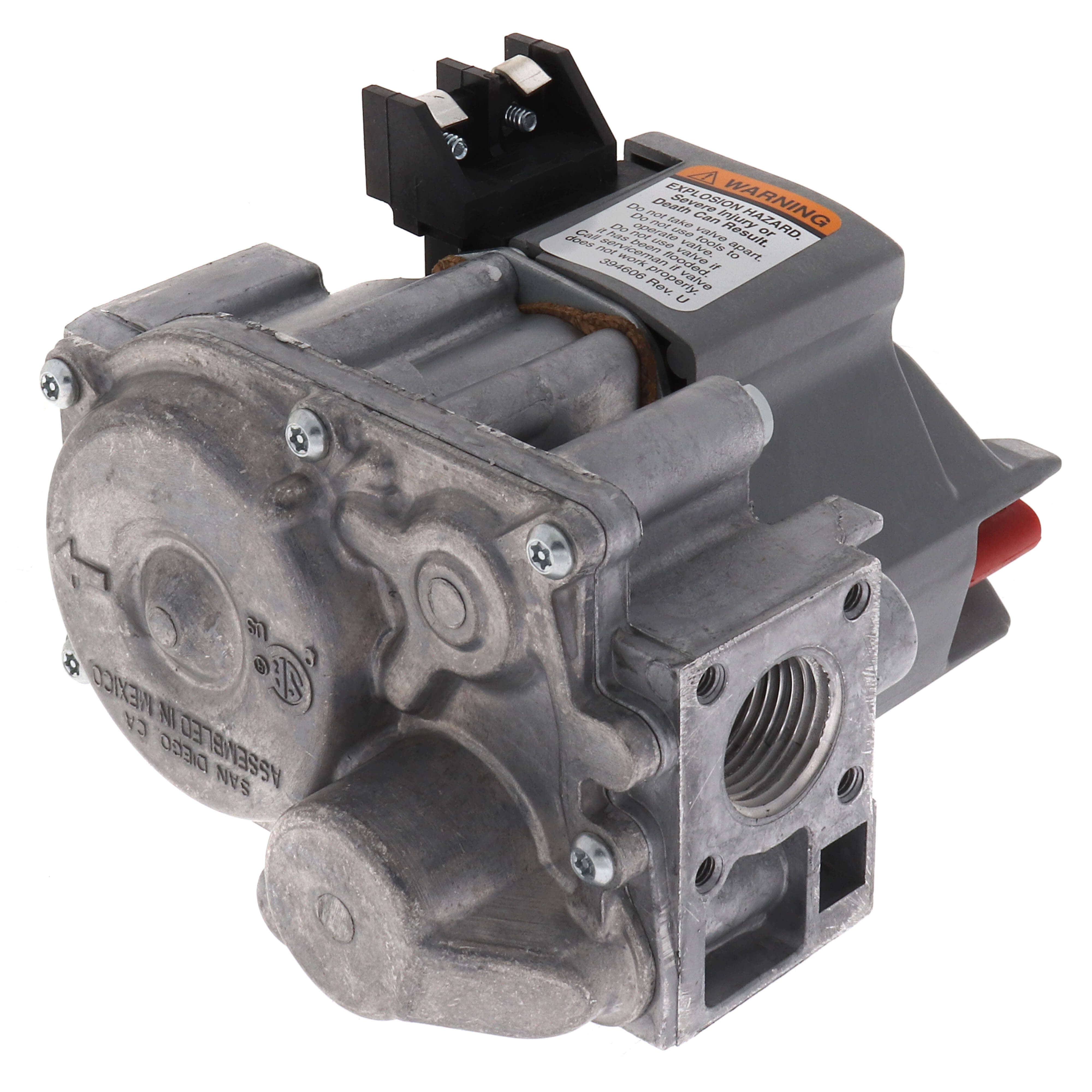

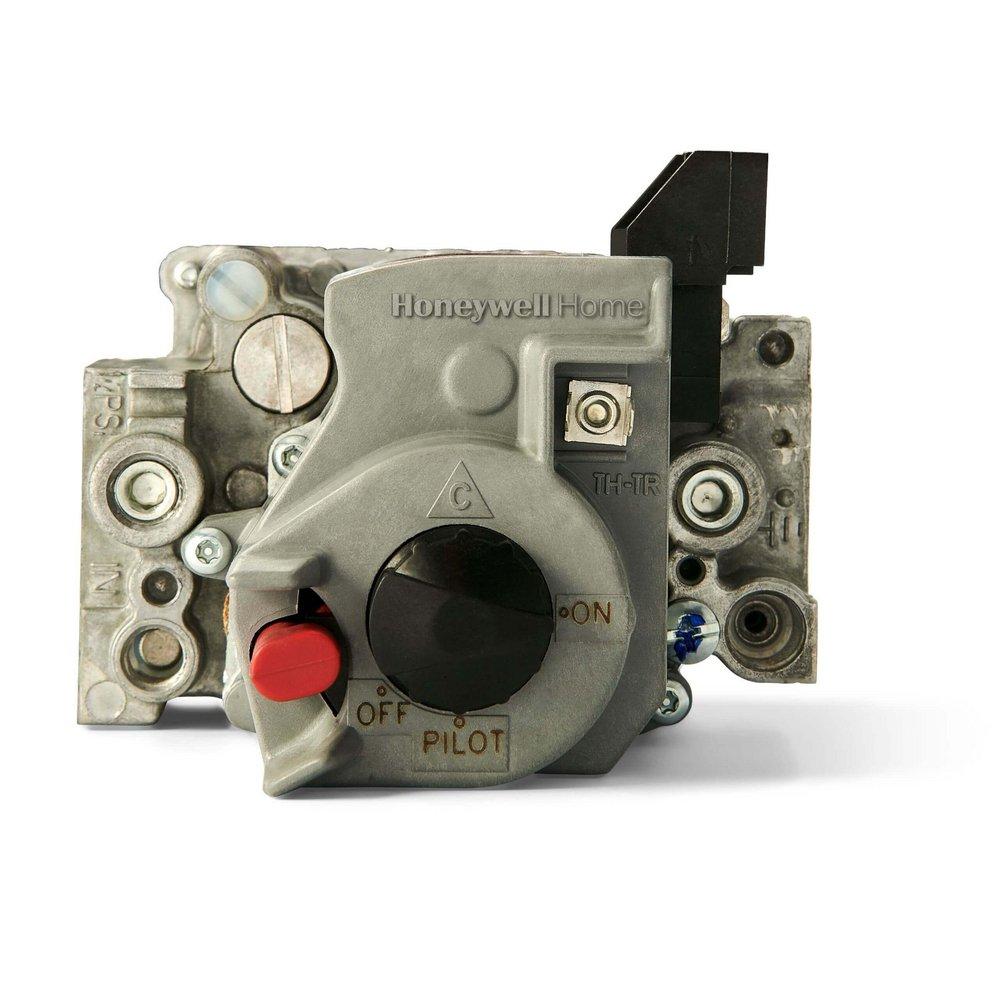

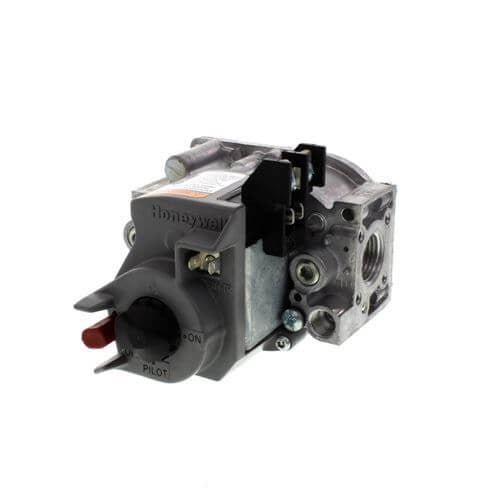

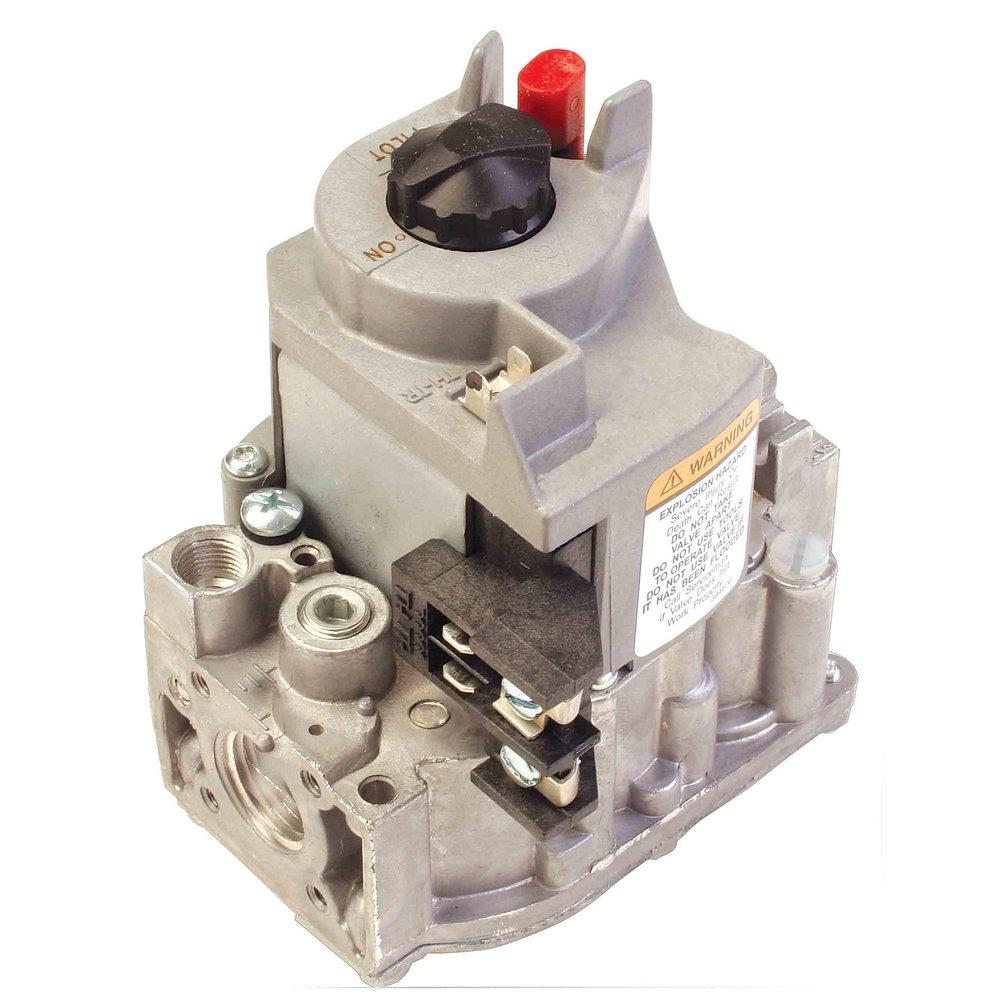

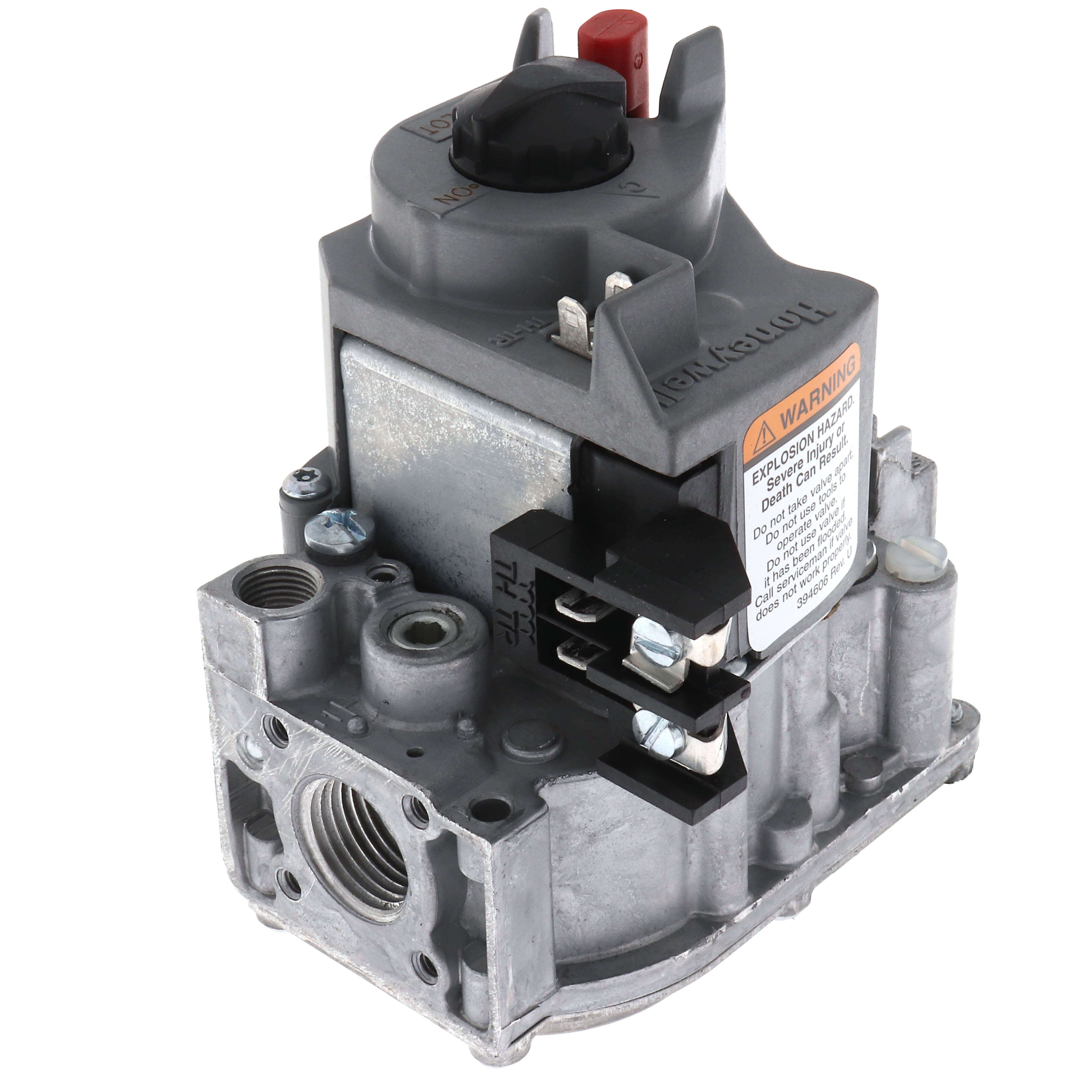

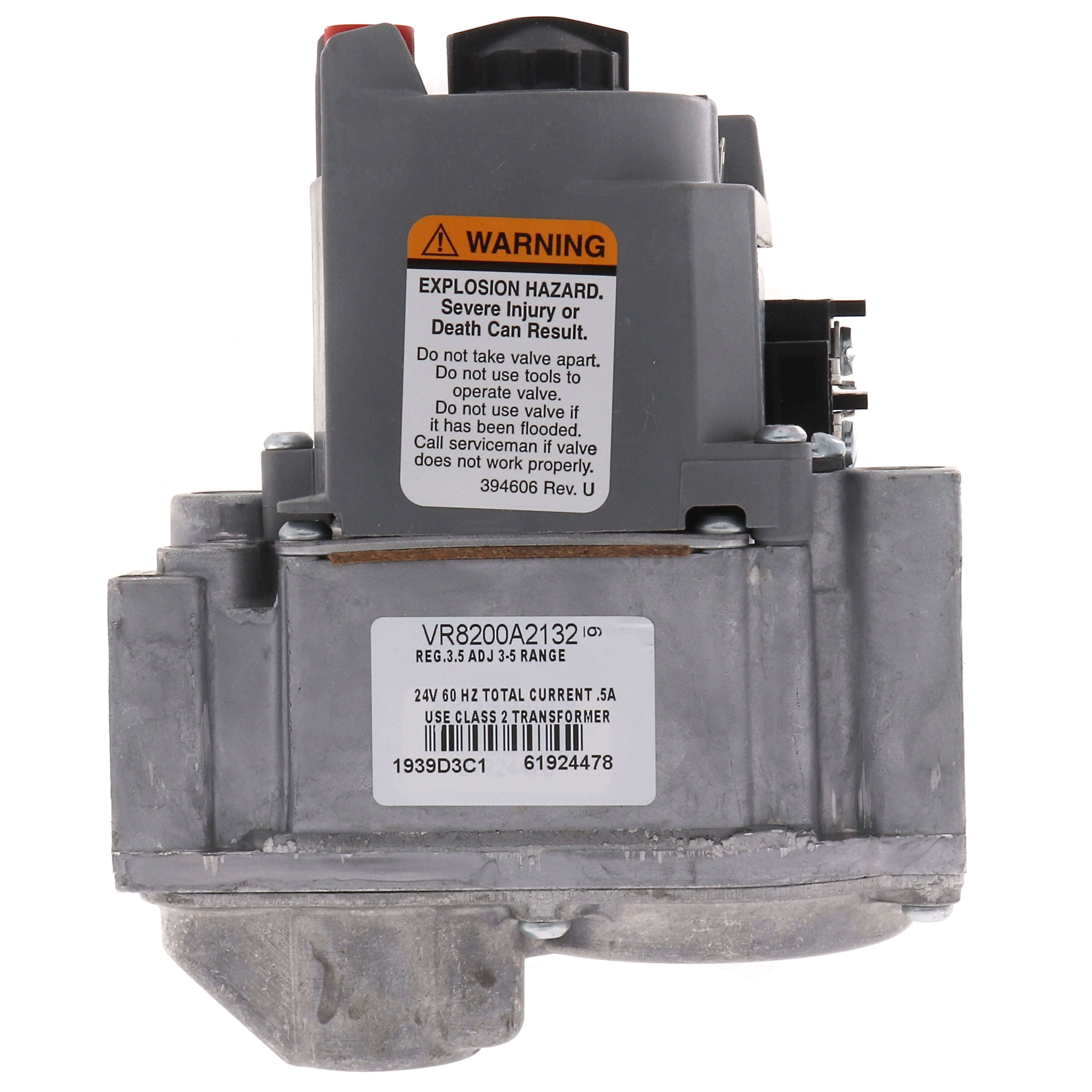

Resideo VR8200A2132 VR8200 Series Single Stage 1/2 in Inlet x 1/2 in Outlet Standing Pilot Gas Valve - 24V

Product Description

The Resideo VR8200A2132 is a standing pilot gas valve with a half-inch inlet and outlet. This 24-volt gas control valve is essential for gas-fired heating appliances. It combines several safety features including a manual shutoff and two automatic valves for enhanced control and safety.

• Compact design that fits in tight spaces.
• Includes a natural gas to LP conversion kit.
• Adjustable pressure regulator for consistent gas output.

Product Highlights

This gas valve meets safety standards and provides reliable operation for heating systems.

Product Information

Standard Information

• Brand: Resideo
• MPN: VR8200A2132

Technical Specifications

• Voltage: 24V
• Fuel Type: Natural Gas
• Inlet Size: 1/2 NPT
• Outlet Size: 1/2
• Body Pattern: Straight-Through
• Ignition Type: Standing Pilot
• Capacity: 130000 BTU
• Weight: 2.19 lbs
• Dimensions: 5.2 x 6.2 x 4 inches
• Shipping Dimensions: 5.88 x 4.63 x 4 inches
