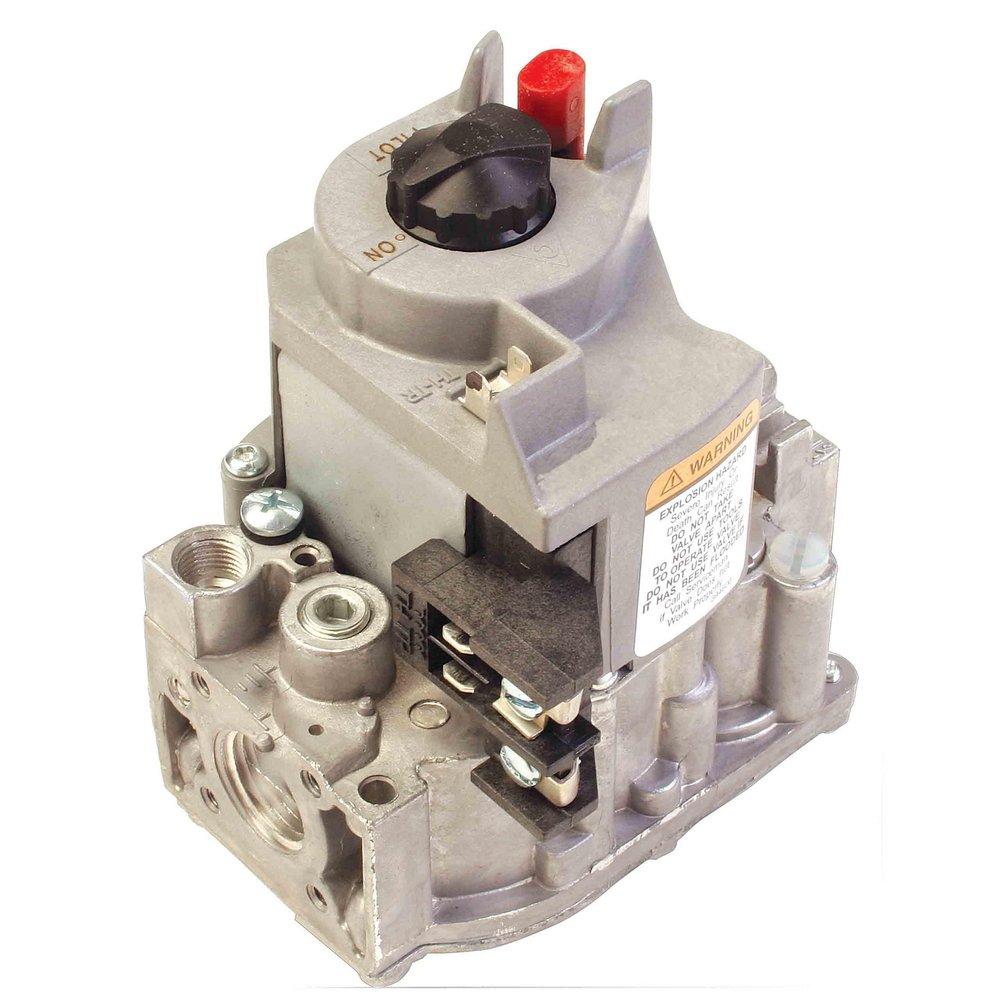

Resideo VR8200A2132 Comb Gas Ctrl 24V AC 1/2 Inch x 1/2 Inch

Product Description

The RESIDEO VR8200A2132 is a standard opening, straight-through, 1-stage diaphragm gas control valve designed for gas-fired, standing pilot appliances. It operates on a 24 Volt AC, 60 Hertz input supply and features a 1/2 Inch x 1/2 Inch female threaded end connection. This control includes a safety shutoff, manual valve, two automatic operators, and a servo pressure regulator, ensuring safe and consistent gas output pressure. It is suitable for low voltage applications and has a temperature rating of 0 to 175 Deg F.

• Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.

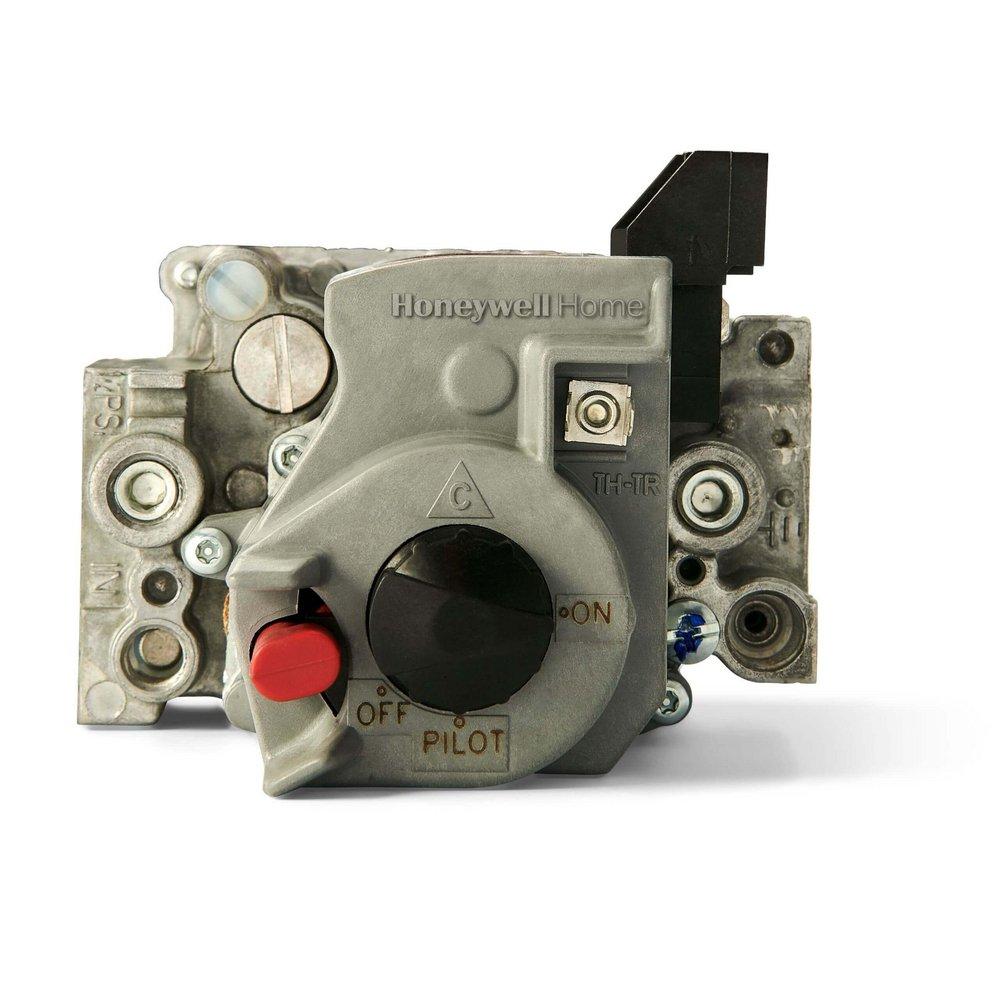

• All adjustments, wiring connections, and pilot outlet are accessible from the top of the control.
• Closes if gas or power supply is interrupted, ensuring safety.

Product Highlights

This gas control valve features a compact size, dual safety shut-off, and a Lite-Rite lighting sequence for standing pilot applications.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: VR8200A2132
• Country of Origin: United States

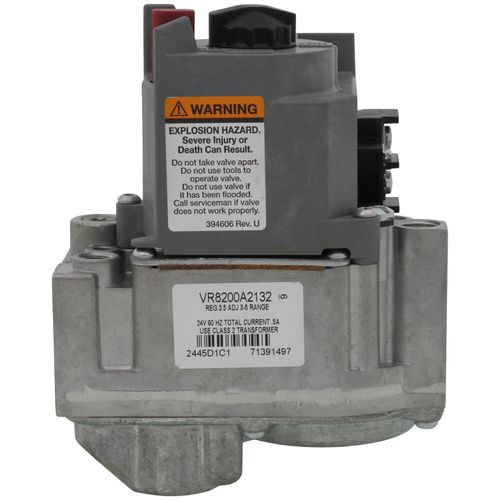

Technical Specifications

• Type: Standard Opening, Straight-Through, 1-Stage, Diaphragm
• Nominal Pipe Size: 1/2 Inch x 1/2 Inch
• Inlet Connection: 1/2 Inch NPT Female Threaded
• Outlet Connection: 1/2 Inch Female Threaded
• Input Voltage: 24 Volt AC
• Frequency: 60 Hertz
• Operating Temperature: 0 to 175°F (-18° to +79°C)
• Pressure Rating: 1/2 PSI

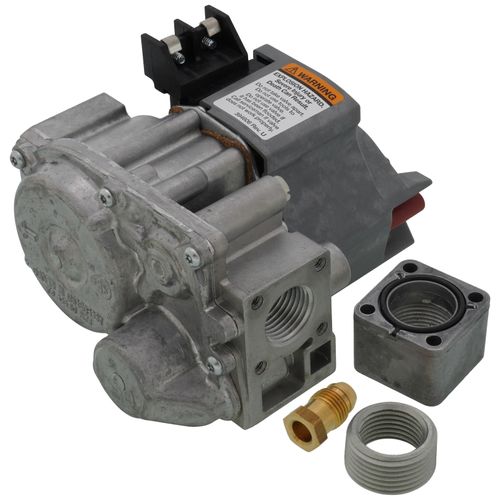

• Included Components: (1) 3/4 Inch Straight Flange, (1) 1/2 Inch x 3/8 Inch Reducer Bushing, Natural to LP Conversion Kit, Safety Shutoff, (1) Manual Valve, (2) Automatic Operator, (1) Servo Pressure Regulator, (1) Pilot Adjustment
• Application: Gas-Fired, Standing Pilot Appliance
• Applicable Standard: UL, CSA, AGA
• Fuel Type: Natural Gas
• Ignition Type: Standing Pilot
• Pressure Regulator Setting: 3.5 Inch WC
• Pressure Tapping: 1/8 Inch Threaded with Plug
• Flow Capacity: 30 to 300 CFH
• Pilot Gas Outlet: Compression Fitting for 1/4 Inch Outer Diameter Tubing
• Capacity: 20000 BTU/Hour to 200000 BTU/Hour
• Electrical Connection: Combination screw and 1/4 in. male quick connects
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
• Series: VR8200
• Anticipator Setting: 0.5 A
• Material: Aluminum
• Compatible Appliance: Central Heating Radiator
