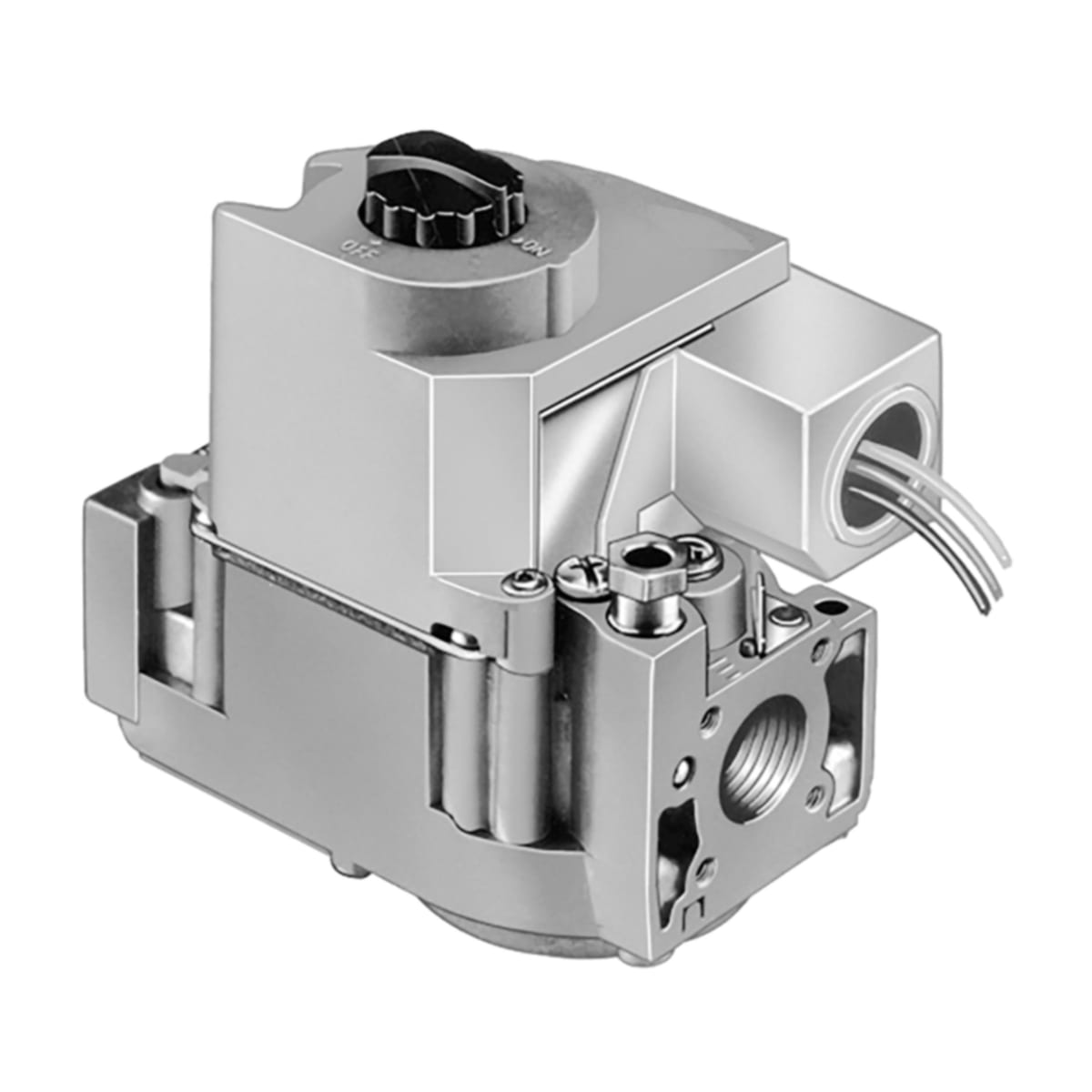

Resideo VR4304M4519/U Single Stage Gas Controls for Intermittent Pilot Appliance, 3/4 in x 3/4 in, Standard Opening, 120 V AC, Natural Gas/LP with Included Conversion Kit

Product Description

The Resideo VR4304M4519/U is designed for use in 120 Volt AC gas-fired intermittent pilot appliances. It serves capacities ranging from thirty to four hundred fifteen cubic feet per hour. The control includes safety shutoff, manual valve, two automatic operators, pressure regulator, and pilot adjustment.

• Compatible with various control modules such as S86F, S860D, and S90A.
• Feature dual automatic valves for safety and efficiency.
• All adjustments and connections are accessible from the top of the unit.

Product Highlights

This compact gas control unit effectively maintains gas output under varying supply pressures and includes a conversion kit for LP and natural gas.

Product Information

Standard Information

• Brand: Resideo
• MPN: VR4304M4519/U

Technical Specifications

• Type: Gas Valves
• Application: Single Stage
• For Use With: S86F Control Modules, S86H Control Modules, S860D Control Modules, S8600F Control Modules, S8600H Control Modules, S8610 Control Modules, S90A Control Modules, S90B Control Modules
• Compatible With: 120 V AC, gas-fired, intermittent pilot appliances with capacities from thirty to four hundred fifteen cfh
• Pressure Rating: 3.5 kPa, 1/2 psi
• Approvals and Standards: UL Component Recognized, CSA International Approved, AGA and CGA Design Certified
• Includes: Two 3/4 x 1/2 in Reducer Bushings, Natural to LP Conversion Kit, One 1/2 in x 3/8 in Reducer Bushing
