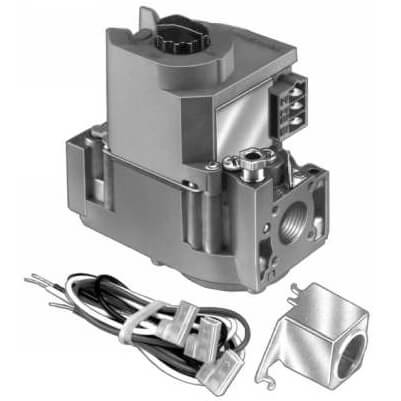

Resideo VR4304M4519 Dual Intermittent Pilot Gas Valve 120 Vac Single Stage

Product Description

The Resideo VR4304M4519 Dual Intermittent Pilot Gas Valve is engineered for optimal performance in 120 Vac, gas-fired appliances. This versatile valve can handle capacities ranging from 30 to 415 cubic feet per hour, making it suitable for a variety of heating applications.

• Enhanced safety features including dual automatic valves and safety shut-off.
• Includes a natural to LP gas conversion kit and various reducer bushings.
• Compact design with accessible adjustments and connections from the top of the control unit.

Product Highlights

Equipped with a pressure regulator and pilot adjustment, this gas valve ensures reliable operation and consistent gas flow. The solenoid-operated valve opens upon the thermostat's heat call and closes when the call ends. Its second valve, operated by a diaphragm and controlled by the regulator, also closes during interruptions in gas or power supply, adhering to strict safety codes requiring dual shutoff.

Product Information

Standard Information

• Ignition Type: Intermittant Pilot
• Type of Gas: Natural

Technical Specifications

• Inlet/Outlet Size: 3/4 in. x 3/4 in.
• Pressure Regulator Setting: 3.5 in. wc
• Capacity: Up to 300,000 BTU/hr
• Temperature Range: -40 F to +175 F
• Electrical Ratings: 120 Vac, 60 Hz, 0.1 A
• Certifications: AGA, CGA Design Certified
