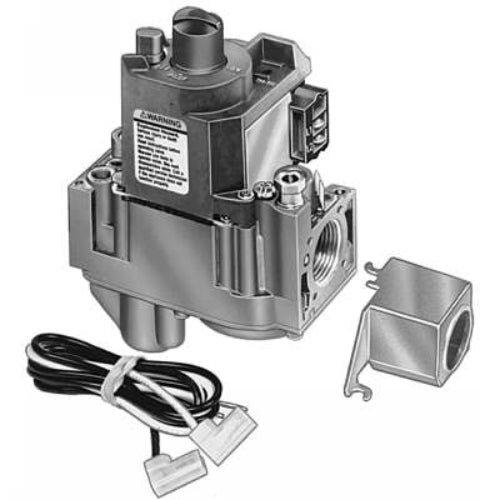

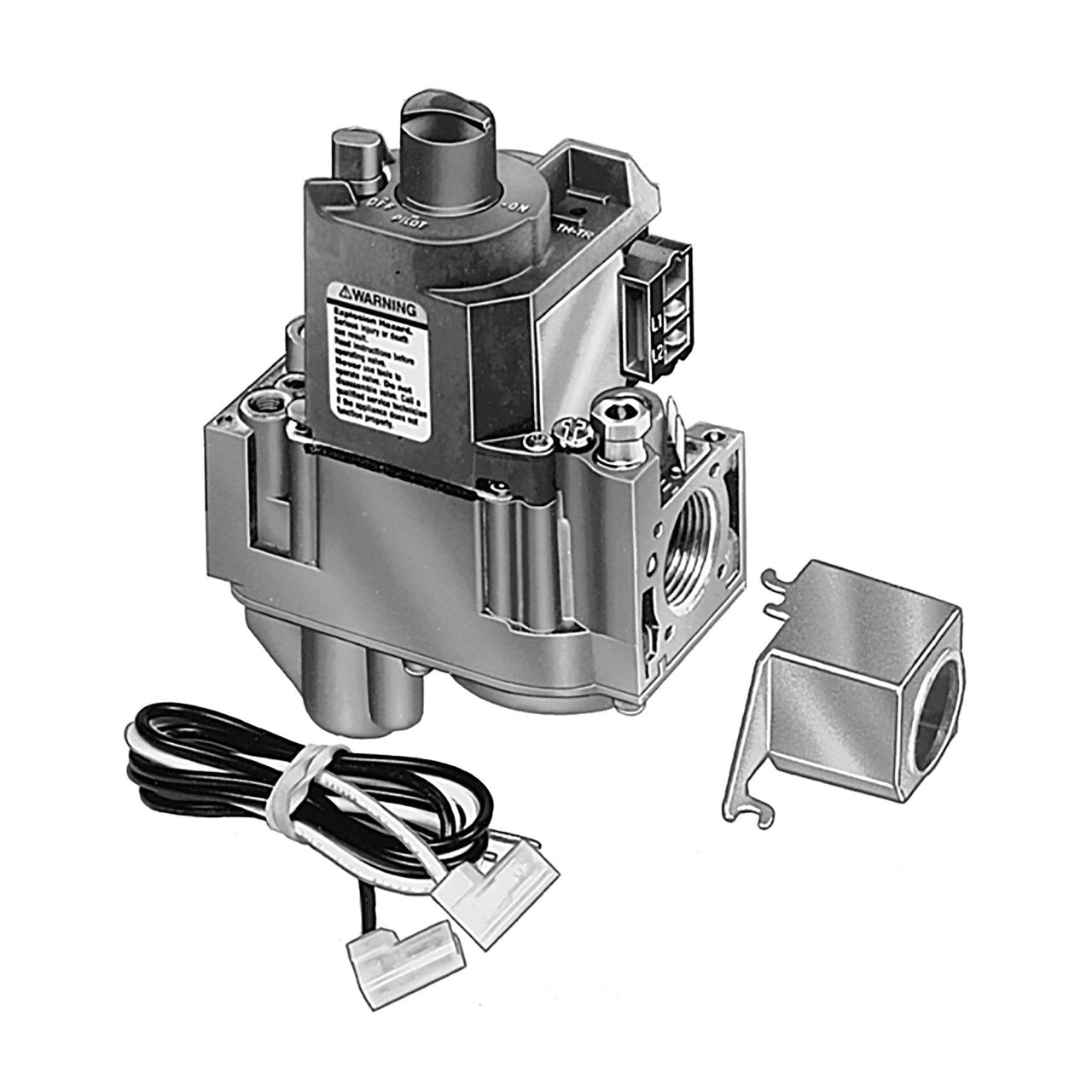

Resideo VR4300A4502/U Gas Valve VR4300 1 Stage Dual Standing Pilot Standard Opening 120 V AC 3/4 x 3/4 Inch NPT

Product Description

The RESIDEO VR4300A4502/U Gas Valve is a high-performance gas valve designed for industrial and automation applications. Its 1-stage dual standing pilot design provides precise control of gas flow, ensuring smooth operation in critical systems. With its standard opening size of 3/4 x 3/4 inch NPT, this gas valve offers easy installation in various configurations. Operating at a pressure range of 0.5 psi, it delivers consistent performance in low-pressure environments. The temperature range of 0 to 175 degrees Fahrenheit makes it suitable for a wide range of industrial processes. Constructed from durable materials and featuring a commercial-grade build, the VR4300A4502/U Gas Valve is built to withstand the demands of industrial environments. Its reliable design and versatility make it an essential component for any industrial setup requiring precise and efficient gas flow control.

• 1-stage dual standing pilot design for precise gas flow control.
• Standard opening size of 3/4 x 3/4 inch NPT for easy installation.
• Operates at 0.5 psi pressure and 0 to 175 degrees Fahrenheit temperature range.

Product Highlights

High-performance gas valve for industrial and automation applications, featuring durable, commercial-grade construction.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: VR4300A4502/U

Technical Specifications

• Brand: RESIDEO
• MPN: VR4300A4502/U
• Product Type: Gas Valve
• Stage: 1 Stage
• Ignition Type: Dual Standing Pilot
• Opening Size: 3/4 x 3/4 Inch NPT
• Pressure Rating: 0.5 psi
• Temperature Range: 0 to 175 °F

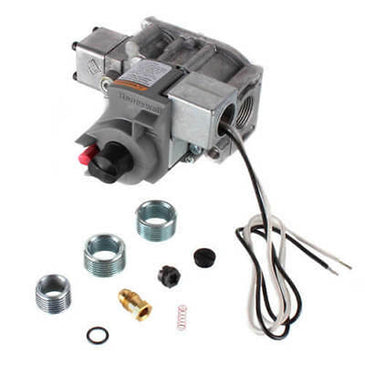

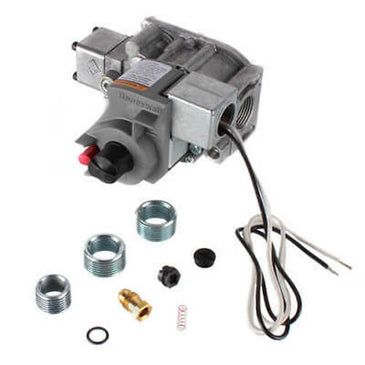

• Includes: Two 3/4 x 1/2 in Reducer Bushings, 393691 Natural to LP Gas Conversion Kit, One 1/2 in x 3/8 in Reducer Bushing
• Application (Control): Single Stage
• Application (Use): Industrial and Automation
• Compatible With: 120 V AC, gas-fired, standing pilot appliances (30-300 cfh capacity)
• Certifications: UL Component Recognized MCCZ2.MH5323, CSA International: 112395, AGA Design Certified: L2025006, CGA Design Certified: L2025006, Australian Gas Assoc. Design Certificate: 4717
• Nominal Capacity (BTU/hr): 30,000 to 300,000 Btu/hr
• Coil Voltage: 120 V 60 Hz
• Electrical Connections: 21 in Lead Wire
• Fuel Type: Natural Gas
• Manufacturer: Resideo Technologies
• Series: VR4300
• Body Pattern: Straight-through with flange
• Mounting Position: 0 to 90 deg in any direction from upright position of gas control knob mounting
• Pressure Regulator Setting: 3.5 Inch WC (0.87 kPa)
• Gas Valve Type: Standard Opening
• Capacity (cfh): 30 to 300 cfh
• Product Category: Combustion & Flame Safety
• Product Subcategory: Gas Valves & Actuators
