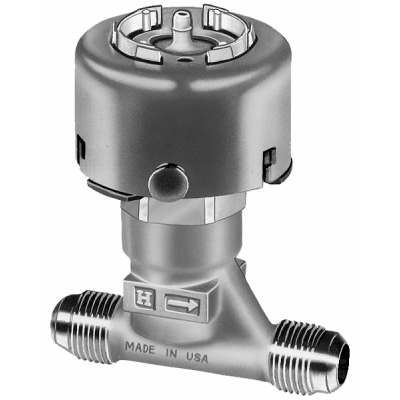

RESIDEO VP527A1034 VP527 Series Water Valve, Two-Way, Unitary, OD: 1/2 / Nominal: 3/8 Connection Size, 1.6 Cv

Product Description

The RESIDEO VP527A1034 is a two-way water valve designed for efficient control in HVAC systems. It has a connection size of one-half inch outer diameter and a nominal three-eighths inch. The valve features a capacity of 1.6 Cv, making it suitable for various applications in pneumatic systems.

• Compact design allows for installation in tight spaces.
• Forged brass construction ensures durability.
• Replaceable Buna-N V-ring packing simplifies maintenance.

Product Highlights

This valve is ideal for controlling water flow in HVAC applications, ensuring reliable performance and easy maintenance.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer: RESIDEO

Technical Specifications

• Logo: Honeywell.tif
• Type: Unitary
• Dimension: 4-1/8 H x 3-1/8 W
• Body Pattern: Two-Way
• Spring Range: 3 psi to 10 psi
• Valve Action: Proportional Normally Open
• Body Pressure: 250 psi
• Capacity (Cv): 1.6
• Air Connection: Push on for 1/4 O.D. Plastic Tubing
• Controlled Fluid: Water
• End Connection Size: O.D.: 1/2 ; Nominal: 3/8
• Operating Humidity Range: 5 to 95% RH
• Ambient Temperature Range: 35°F to 250°F (2°C to 121°C)
• Maximum Diaphragm Pressure: 30 psi
• Close-off Ratings at Branch Line Pressure: 45 psid at 13 psi
• Maximum Safe Actuator Diaphragm Temperature: 230°F (110°C)
