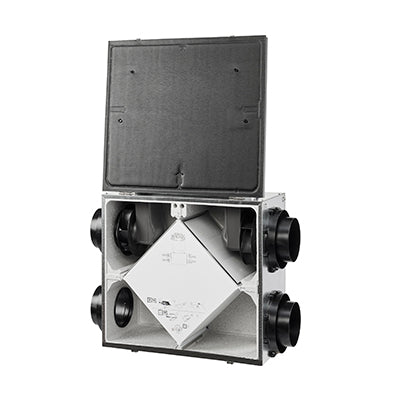

Resideo vnt5200h2000/u Heat Recovery Ventilator 200 Cfm

Product Description

The RESIDEO vnt5200h2000/u is a 200 CFM heat recovery ventilator (HRV) designed to deliver balanced fresh-air ventilation in residential and light-commercial buildings. Running on 120 volts at 60 Hz with a current draw of 1.4 amps, it recovers heat from outgoing stale air and transfers it to incoming fresh air, reducing heating load while maintaining indoor air quality. The polypropylene heat recovery core achieves 75% sensible effectiveness at 32 degrees F, and an integrated defrost control protects performance in cold-weather operation. Licensed HVAC technicians and mechanical contractors typically specify and install this unit.

The vnt5200h2000/u is suited for applications where balanced ventilation is required without the complexity of traditional overhead duct balancing. The unit is designed to simplify installation by eliminating the need to adjust dampers during commissioning, making it a practical choice for new construction and retrofit projects alike. It fits residential settings where fresh-air ventilation codes require controlled mechanical ventilation, and can also serve light-commercial occupancies with similar ventilation requirements.

Key Features

• 200 CFM airflow capacity supports whole-home ventilation needs
• Polypropylene heat recovery core for durable, corrosion-resistant heat exchange
• 75% sensible effectiveness at 32 degrees F for efficient cold-weather performance
• Integrated defrost control maintains operation in freezing conditions
• 120V / 60 Hz electrical rating compatible with standard residential power
• Simplified installation eliminates overhead duct balancing and damper adjustment

Compatibility

Designed as an OEM-style replacement or new-installation heat recovery ventilator for residential and light-commercial balanced ventilation systems requiring 200 CFM capacity.

Installation Notes

Installation should be performed by a licensed HVAC technician or mechanical contractor familiar with residential ventilation codes, including ASHRAE 62.2 and applicable local mechanical codes. Disconnect and lock out all electrical power before servicing or connecting wiring. Ensure duct connections are properly sealed to prevent short-circuiting of supply and exhaust airstreams. Verify condensate drainage provisions are in place before startup in climates where the unit will operate near or below freezing.

Technical Specifications

• Application: Heat Recovery Ventilator
• Airflow Capacity: 200 CFM
• Voltage: 120 volts AC
• Frequency: 60 Hz
• Current Draw: 1.4 amps
• Sensible Effectiveness: 75% at 32 degrees F
• Defrost Control: Integrated defrost
• Core Material: Polypropylene

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: vnt5200h2000/u
