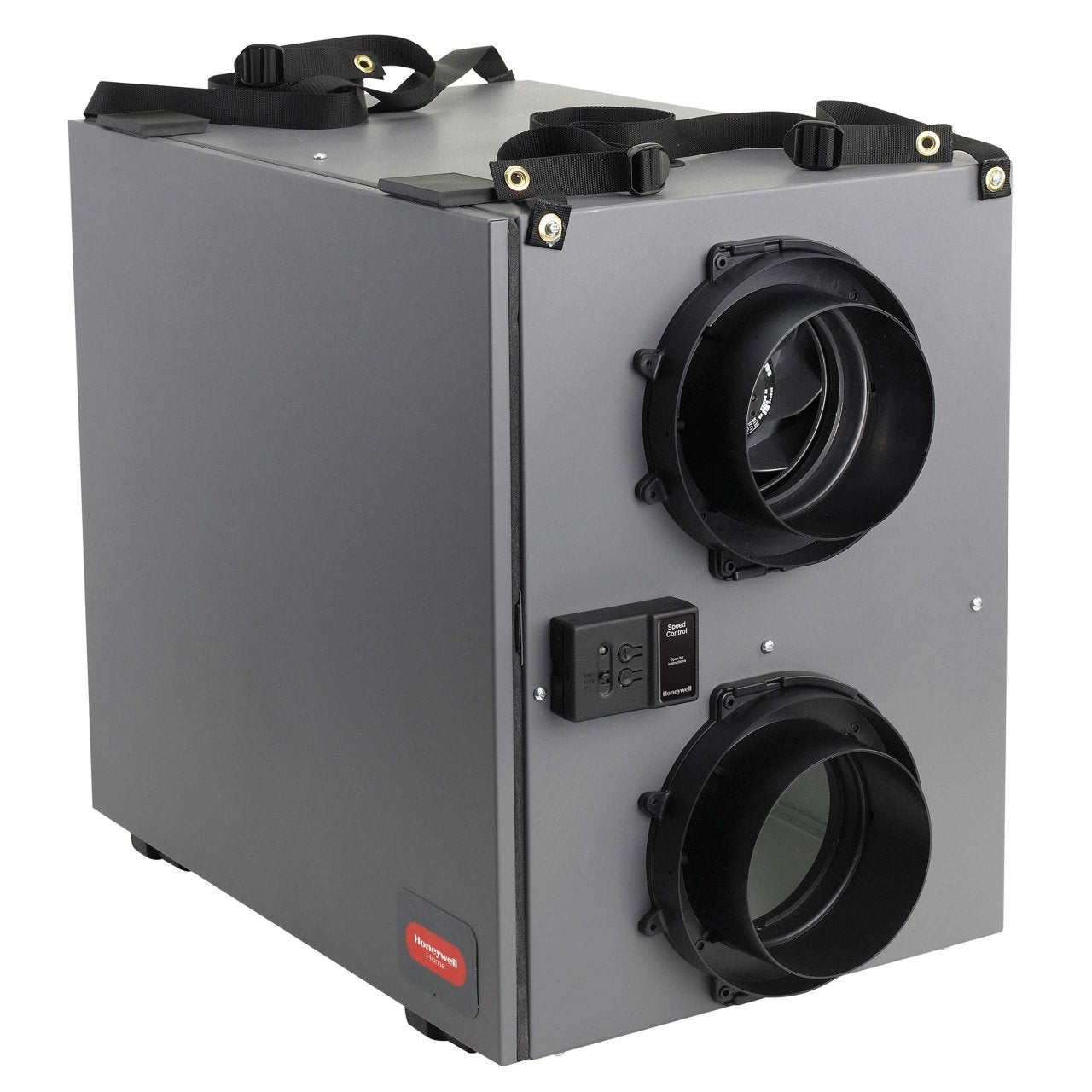

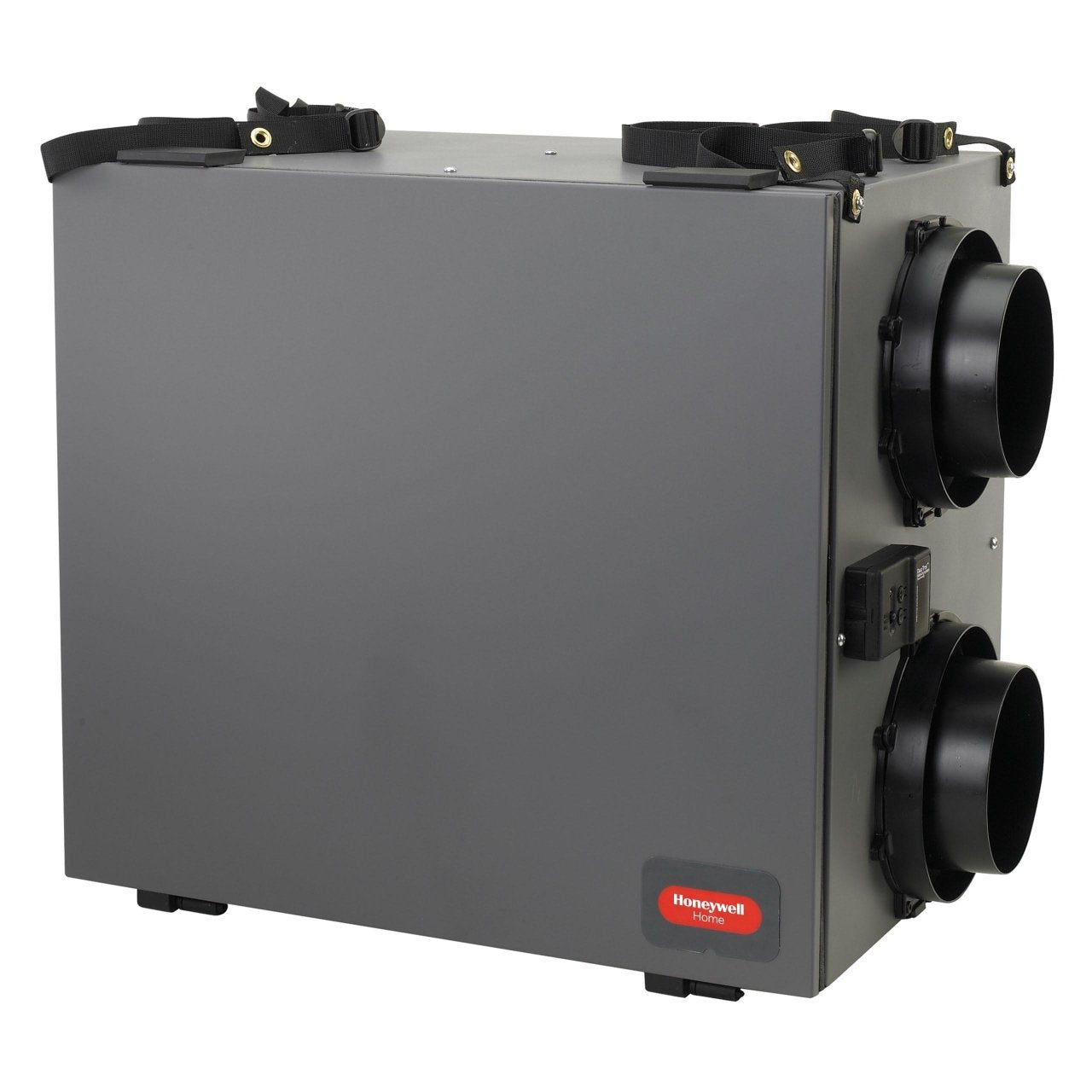

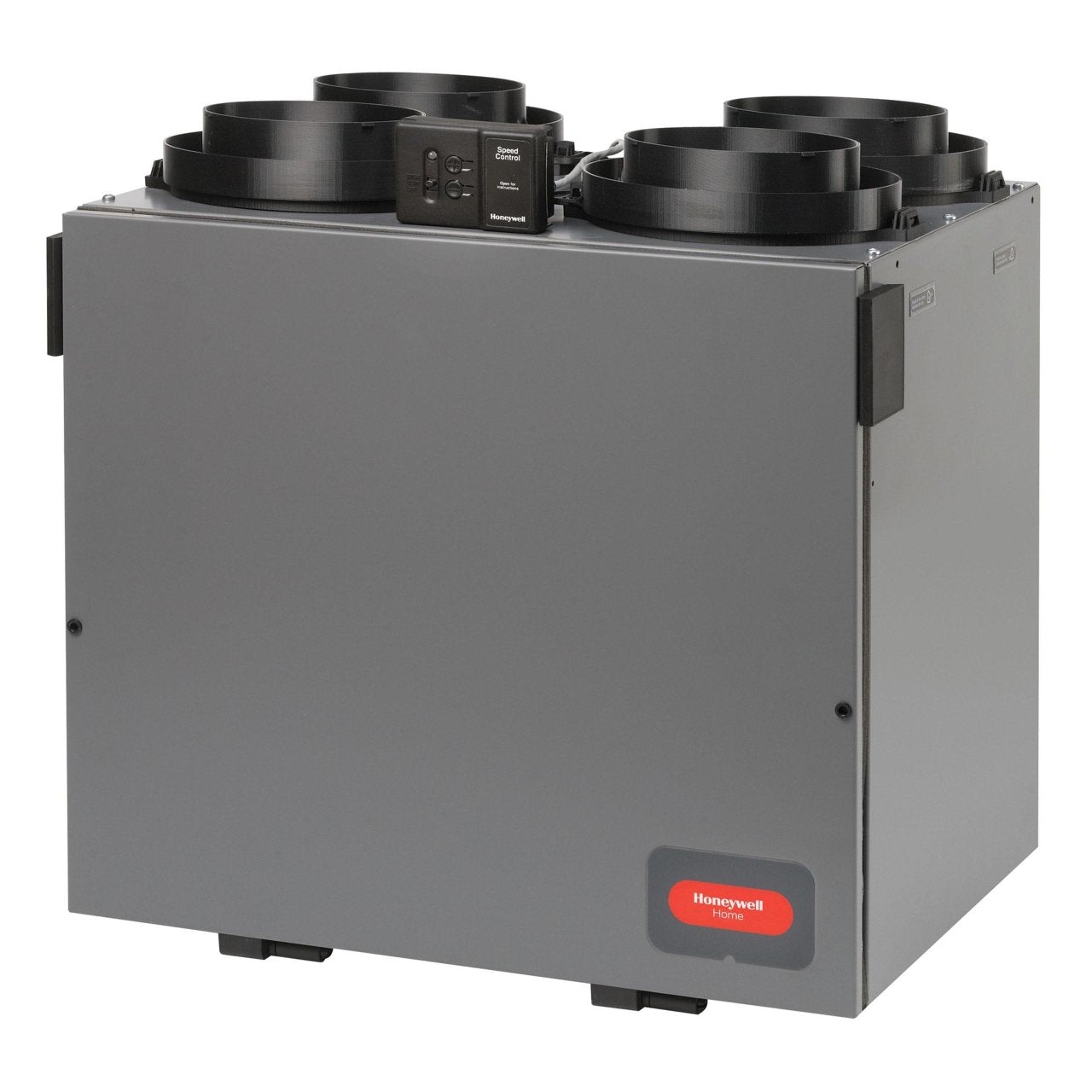

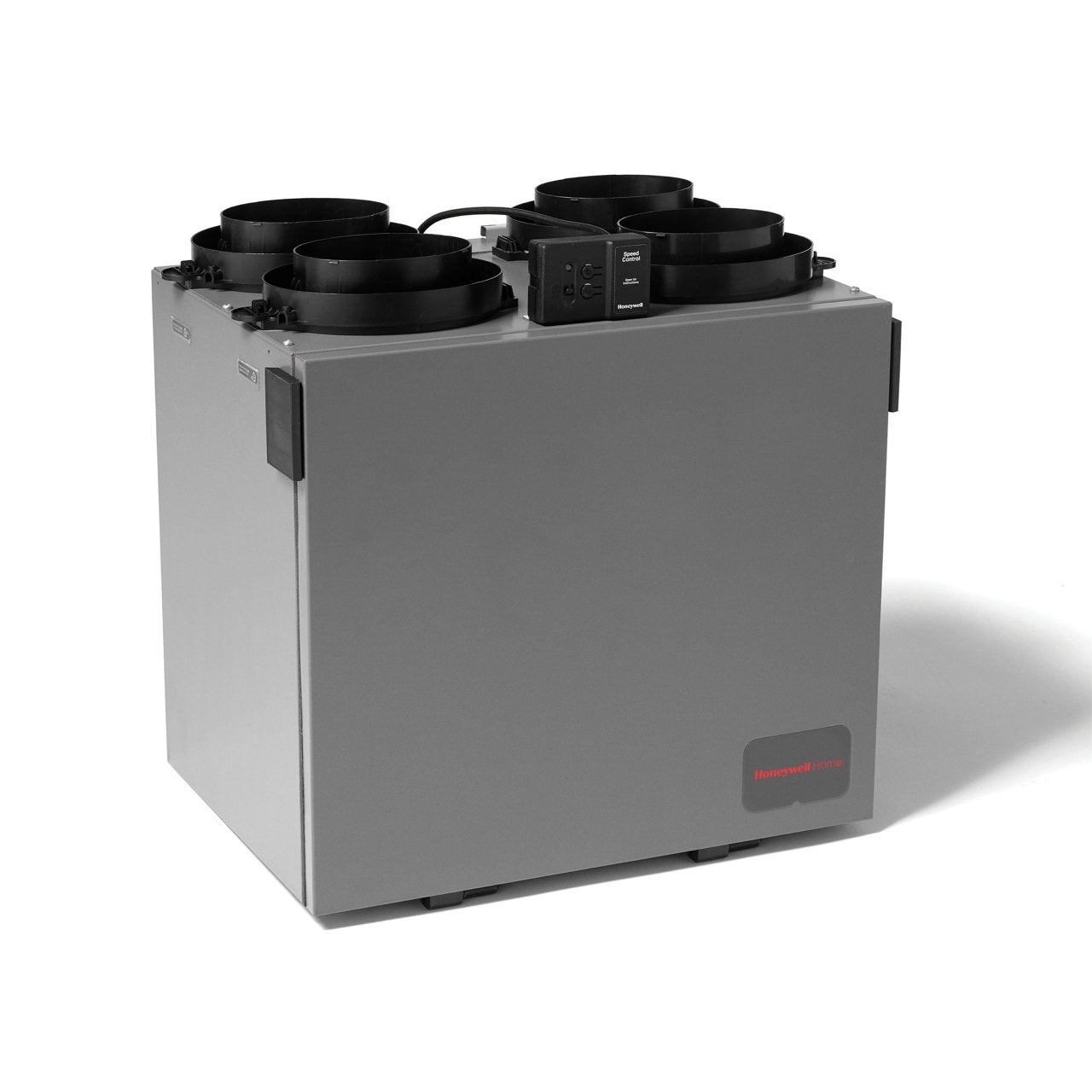

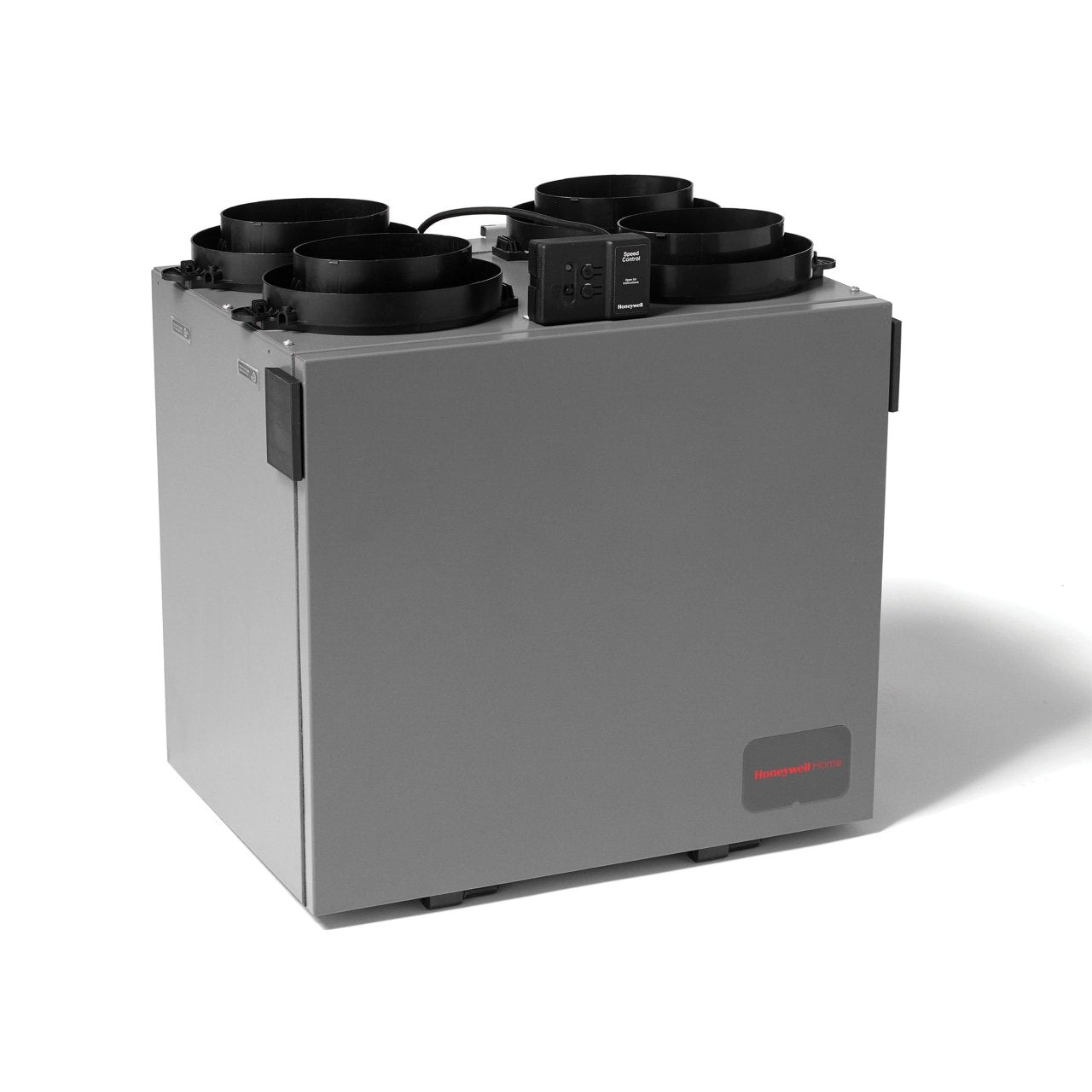

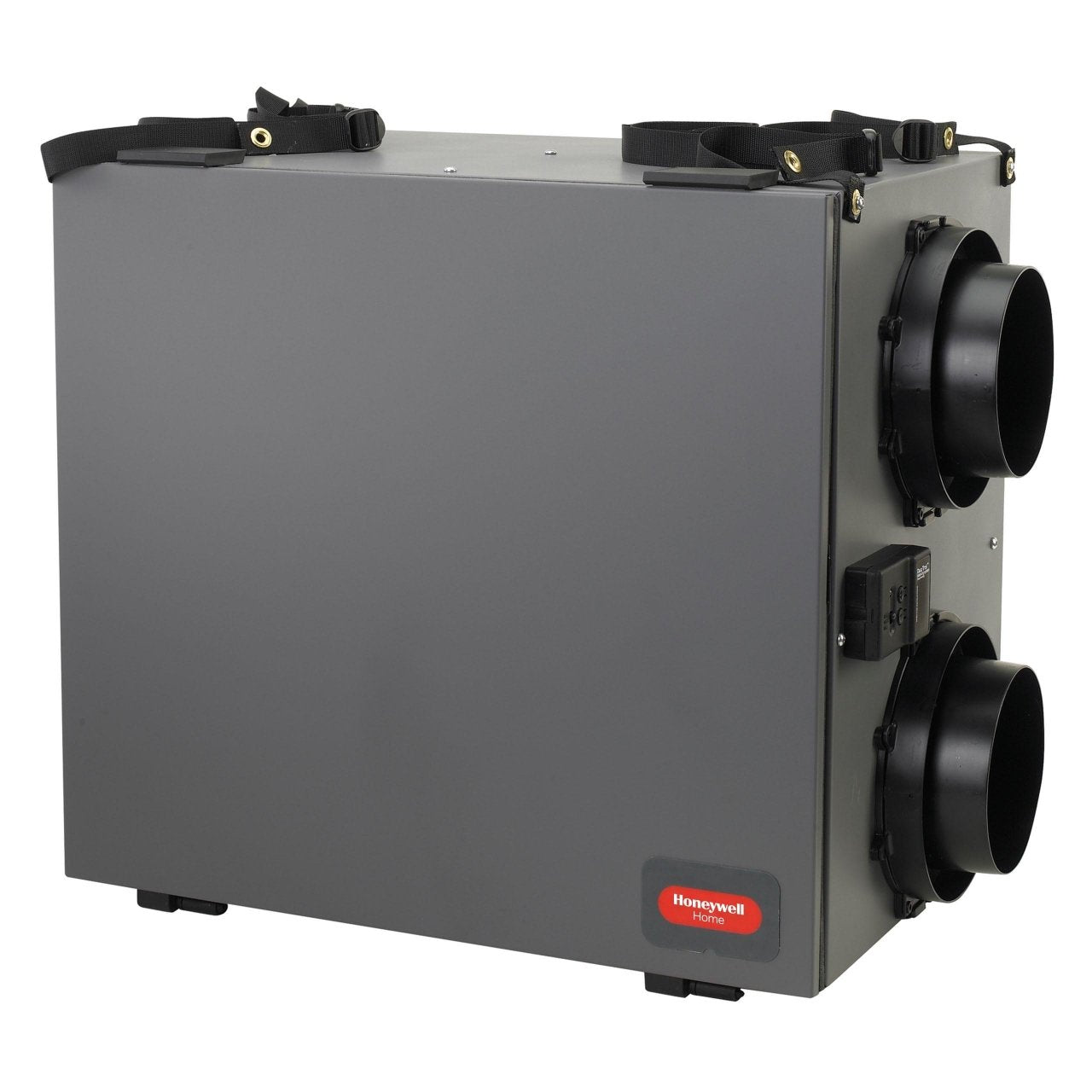

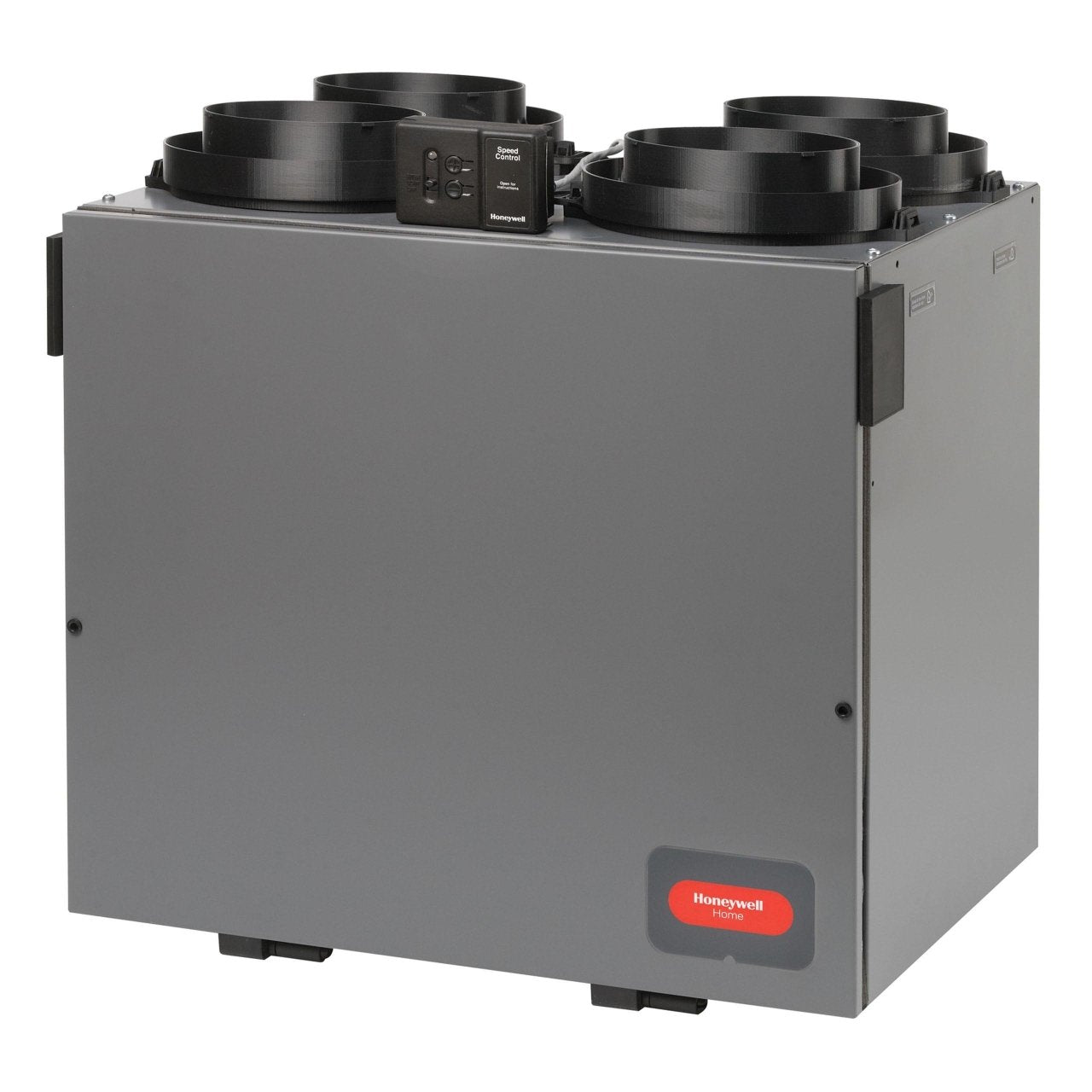

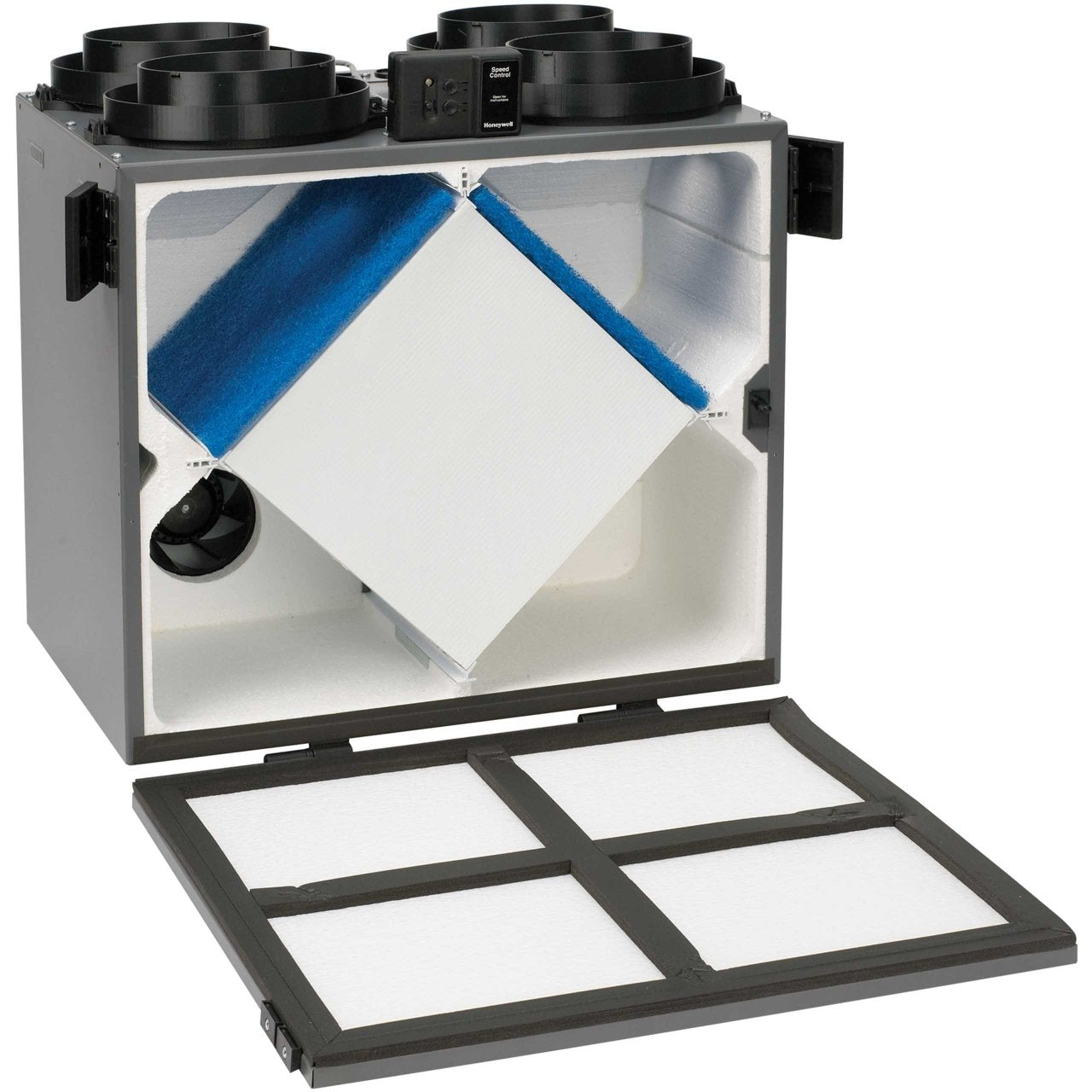

Resideo VNT5200H1000/U 200 cfm heat recovery ventilator

Product Description

The RESIDEO VNT5200H1000/U Heat Recovery Ventilator provides fresher replacement air by recovering up to 70 percent of exhausted air's sensible heat, transferring moisture between air streams. It draws outdoor air for distribution and exhausts stale air. Featuring removable duct collars and damperless balancing, this HRV system simplifies installation and eliminates overhead ducts, ensuring better indoor air quality. It has an air flow capacity of 200 CFM and an exchange surface of 104 square feet.

• Air flow capacity: 70, 150 or 200 CFM
• Exchange surface: 104 square feet
• Balanced ventilation with sensible heat recovery

Product Highlights

This compact and lightweight Heat Recovery Ventilator offers balanced ventilation, automatic defrost, and intuitive balancing for improved indoor air quality.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: VNT5200H1000/U

Technical Specifications

• Color: Gray
• Includes: Ventilator|Heat Recovery Core|2 Filters|4 Round Duct Collars|Installation Kit|Wall Mount Bracket
• Application: Heat Recovery Ventilator
• LED Functions: Solid LED indicates limits|Blinking LED indicates speed change
• Ventilation Type: HRV
• Approvals and Standards: UL 1812|CSA 22.2 No. 113
• Ambient Relative Humidity Max: 99%
• Ambient Relative Humidity Min: 0%

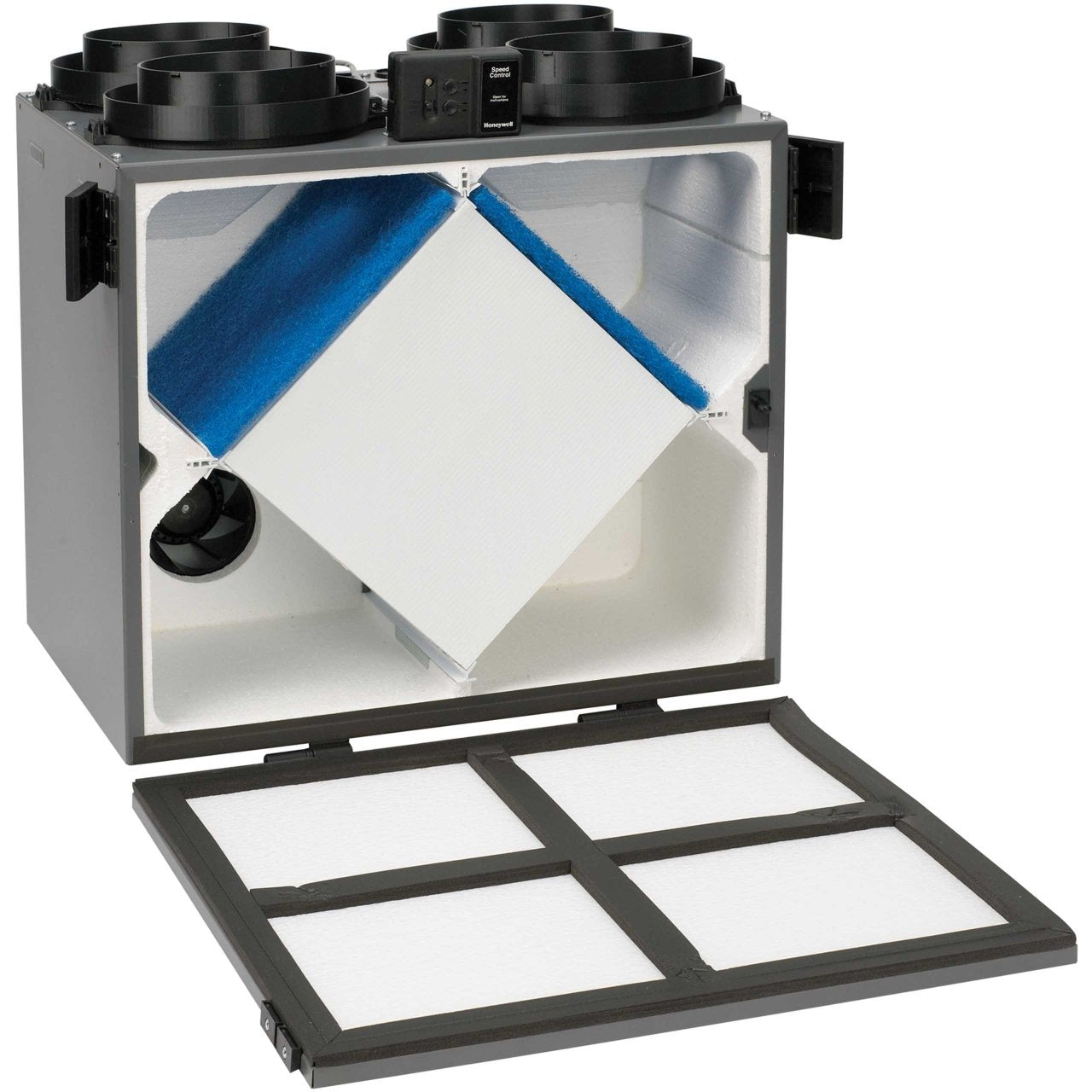

• Heat Recovery Method: Cross-flow (Polypropylene)
• Current Draw: 1.5 A
