Product Description

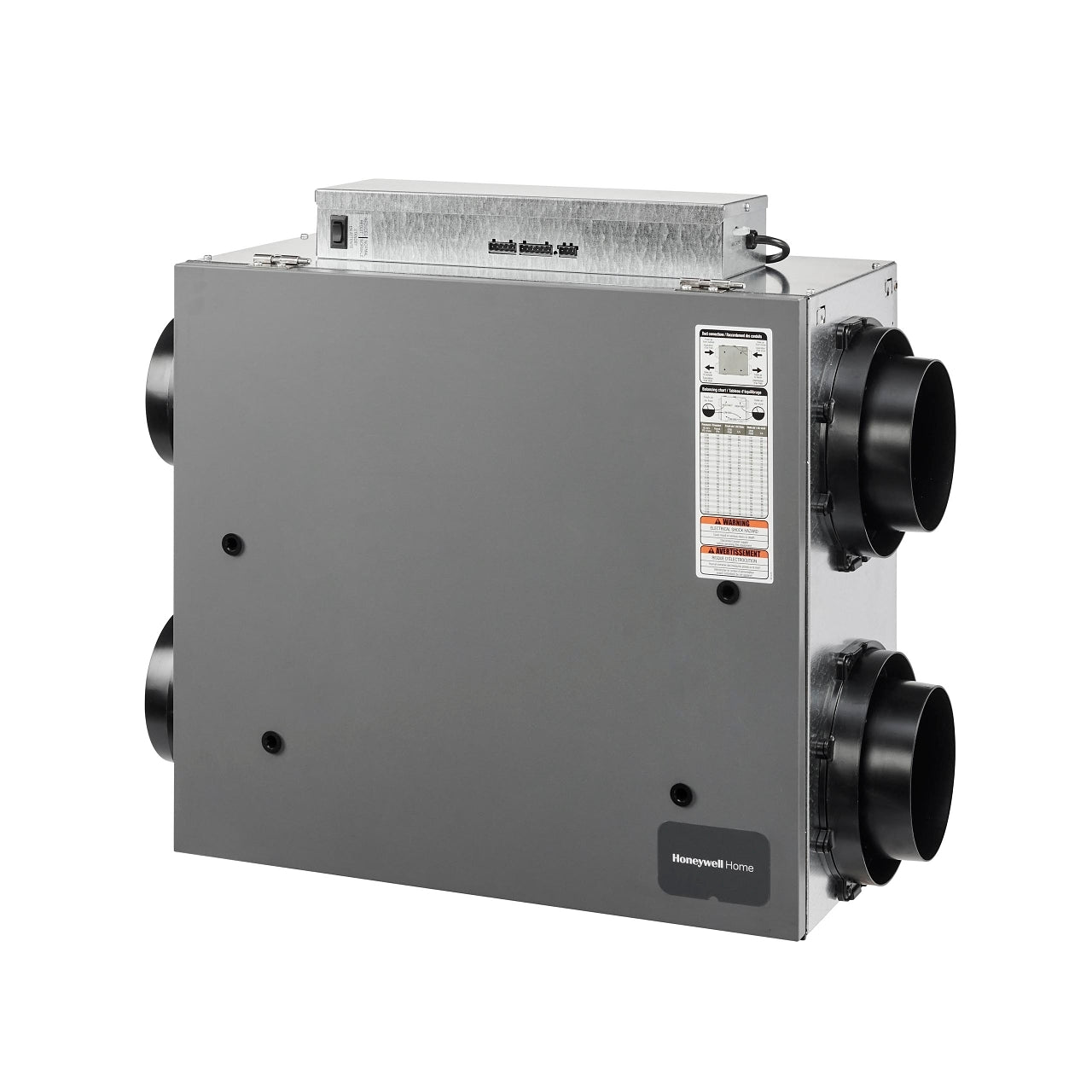

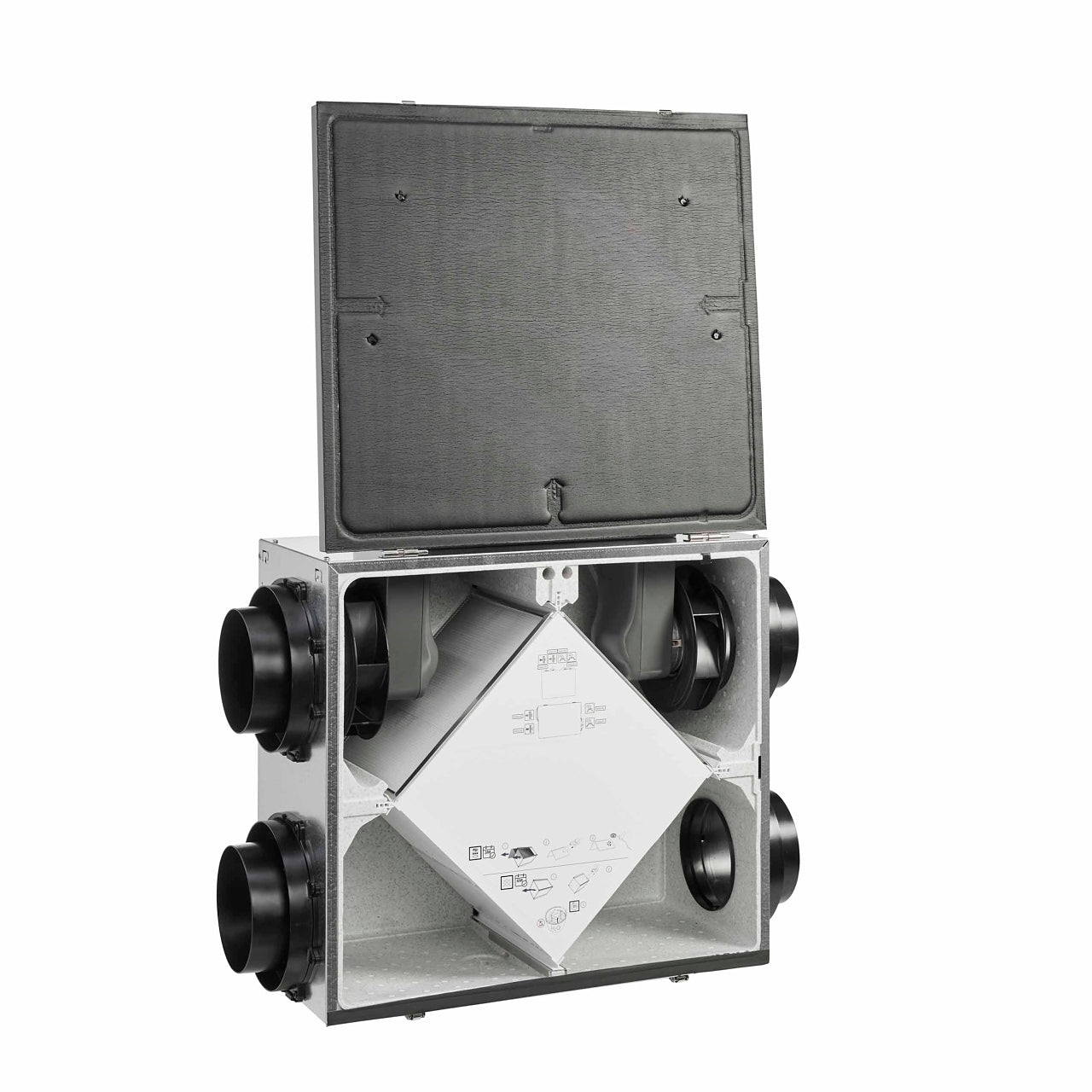

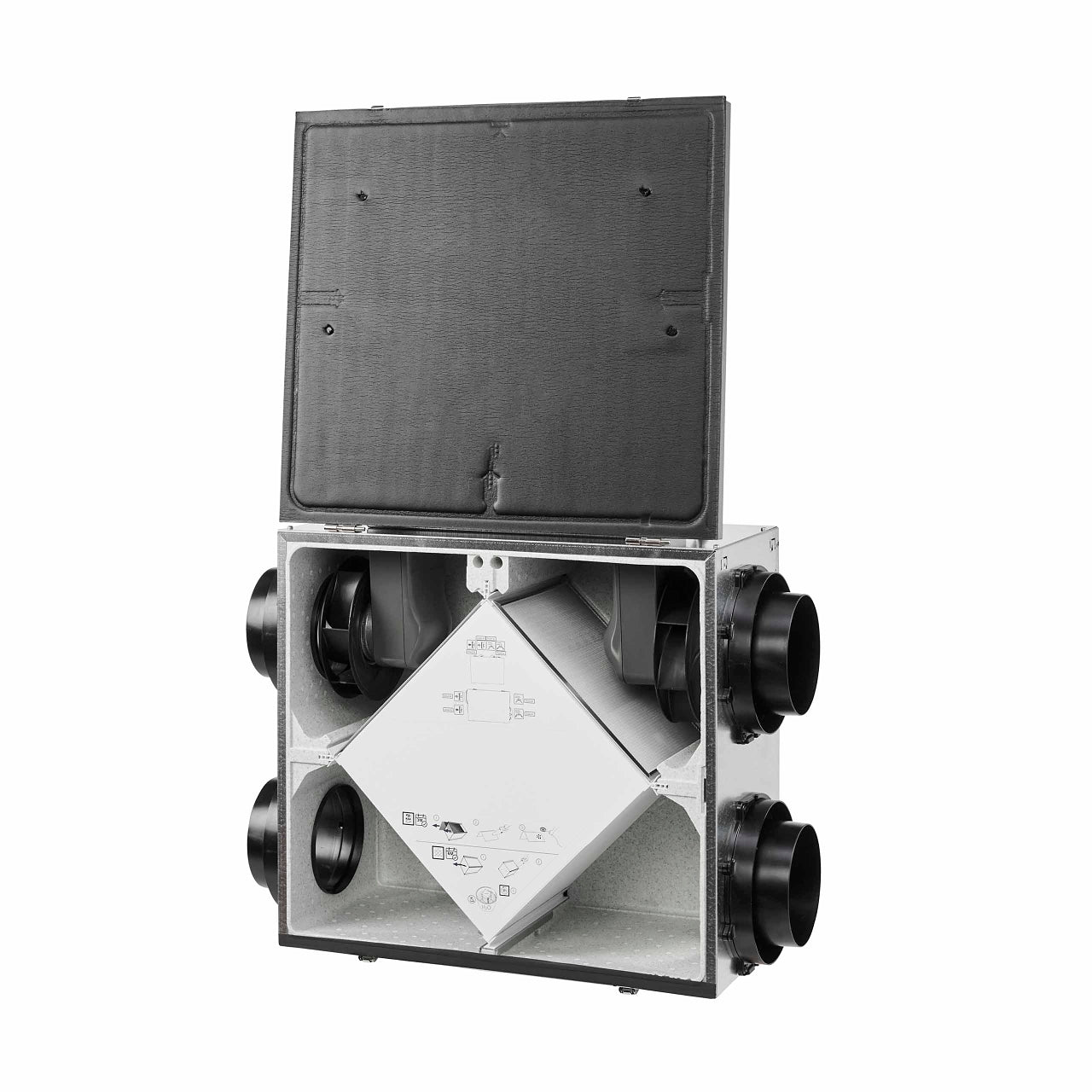

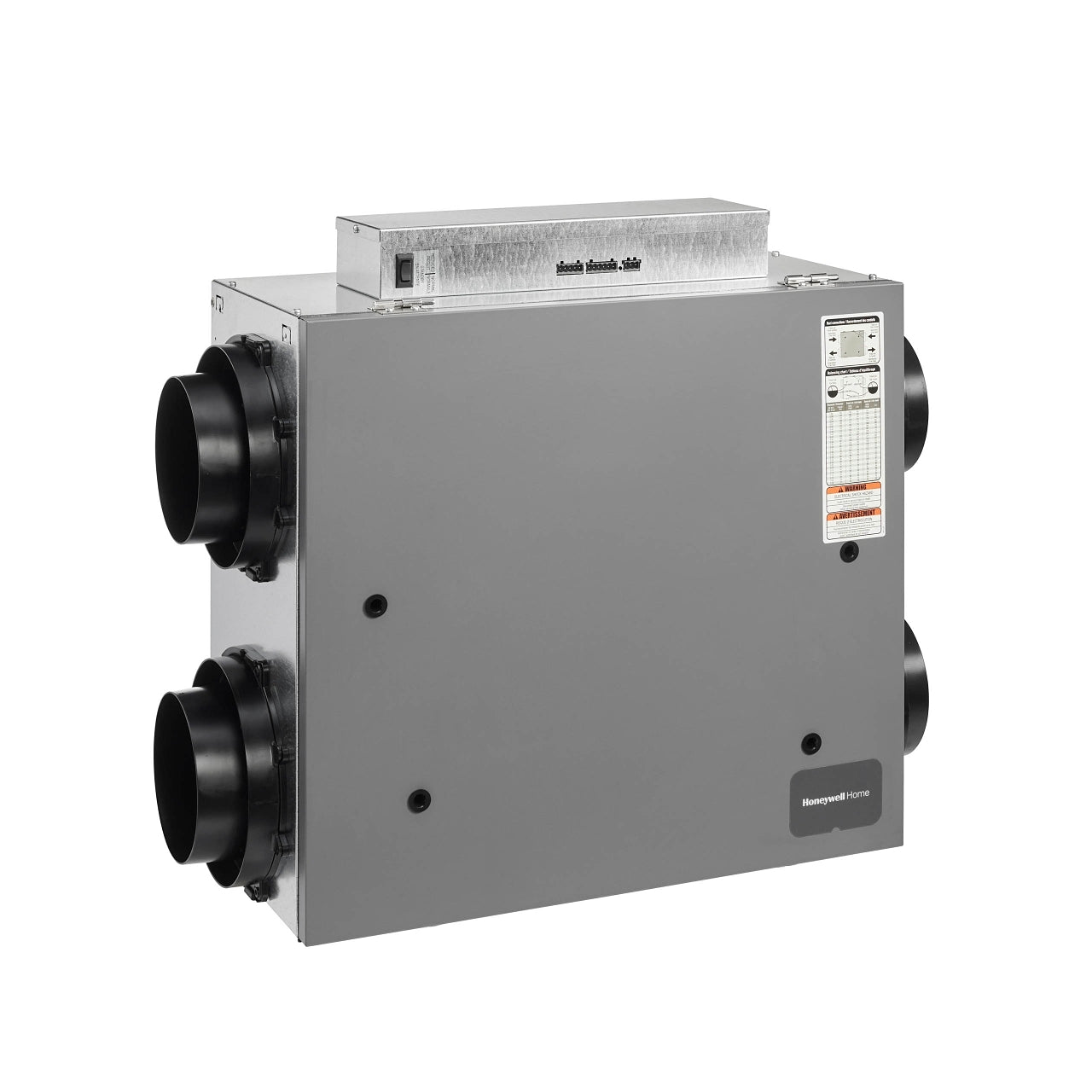

The RESIDEO VNT5200E2000/U Energy Recovery Ventilator provides fresher replacement air while recovering up to 70 percent of the exhausted air's sensible heat and some latent heat. This system draws outdoor air for distribution throughout the house, exhausting stale air outside. With removable duct collars and damperless balancing, it simplifies installation. It is HVI and CSA certified, meeting Ashrae 62.2 Standards, and operates with a current draw of 1.4 A.
- Air flow capacity: 70, 150 and 200 CFM
- Balanced ventilation with sensible and latent heat recovery
- Removable duct collars for simplified ducting
Product Highlights
High performance and efficiency, compact design, and automatic defrost for cold weather operation.
Product Information
Standard Information
-
Brand: RESIDEO
-
Manufacturer Part Number: VNT5200E2000/U
Technical Specifications
-
Current Draw: 1.4 A
-
Approvals and Standards: Meets Ashrae 62.2 Standards, HVI certified, CSA certified
-
Included Components: Hanging Chain Kit, Ventilator, Hardware Kit, 1/2 inch Drain Hose and Drain Fitting, External Damper Wire harness, Wiring Terminal Blocks, Duct Collars, Installation Guide
-
Minimum Ambient Relative Humidity: 0
-
Maximum Ambient Relative Humidity: 0.99
-
LED Functions: Solid LED indicates limits, Blinking LED indicates speed change
-
Ventilation Type: ERV
-
Defrost Control: Defrost
