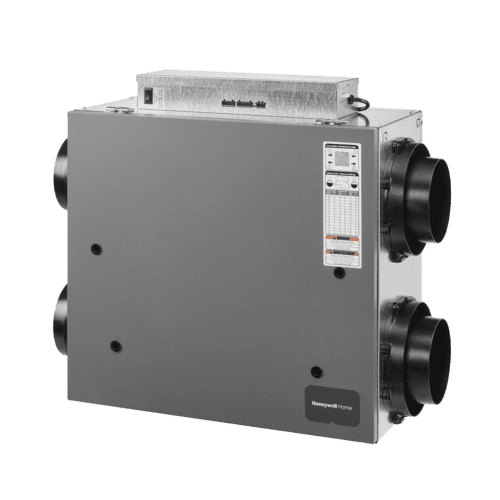

Resideo vnt5200e2000 200 Cfm Energy Recovery Ventilator

Product Description

The RESIDEO vnt5200e2000 is a 200 CFM energy recovery ventilator (ERV) designed for whole-home mechanical ventilation in residential forced-air systems. It continuously exchanges stale indoor air with fresh outdoor air while transferring heat and moisture energy between the two airstreams, reducing the load on the central HVAC system. The unit draws 1.4 amps and carries a 5-year warranty. Licensed HVAC technicians and mechanical contractors typically specify this unit during new construction or retrofit projects where indoor air quality and ventilation code compliance are priorities.

This ERV is intended for residential applications where whole-home ventilation is required. It integrates with existing central heating and cooling systems, eliminating the need for a separate overhead duct network. The compact, streamlined housing simplifies placement in mechanical rooms, attics, or utility spaces. The unit actively reduces indoor concentrations of carbon monoxide, cooking odors, smoke, and other airborne contaminants by diluting them with conditioned fresh air. The built-in energy recovery core also manages incoming humidity, helping maintain consistent indoor relative humidity levels year-round.

Key Features

• 200 CFM ventilation capacity for whole-home air exchange
• Energy recovery core transfers heat and moisture between exhaust and supply airstreams
• Reduces incoming humidity load on central cooling equipment
• 1.4-amp current draw for low operating power consumption
• Compact housing at 29.5 inches long, 21.44 inches tall, and 16.63 inches wide fits standard mechanical spaces
• Includes hanging chain kit, external damper wire harness, wiring terminal blocks, duct collars, drain hose, drain fitting, and hardware kit for a complete installation package
• 5-year manufacturer warranty

Compatibility

Designed as an OEM-style whole-home ERV for integration with residential central forced-air heating and cooling systems requiring mechanical ventilation.

Installation Notes

Installation of this ERV should be performed by a licensed HVAC or mechanical contractor in accordance with local mechanical codes and ASHRAE 62.2 ventilation standards. Disconnect and lock out all electrical power to the air handling system before making any wiring connections to the terminal blocks. The unit weighs 57 pounds and requires two-person handling when mounting with the included hanging chain kit. Connect the condensate drain hose to an appropriate trap and drain point per the installation guide before commissioning the unit.
