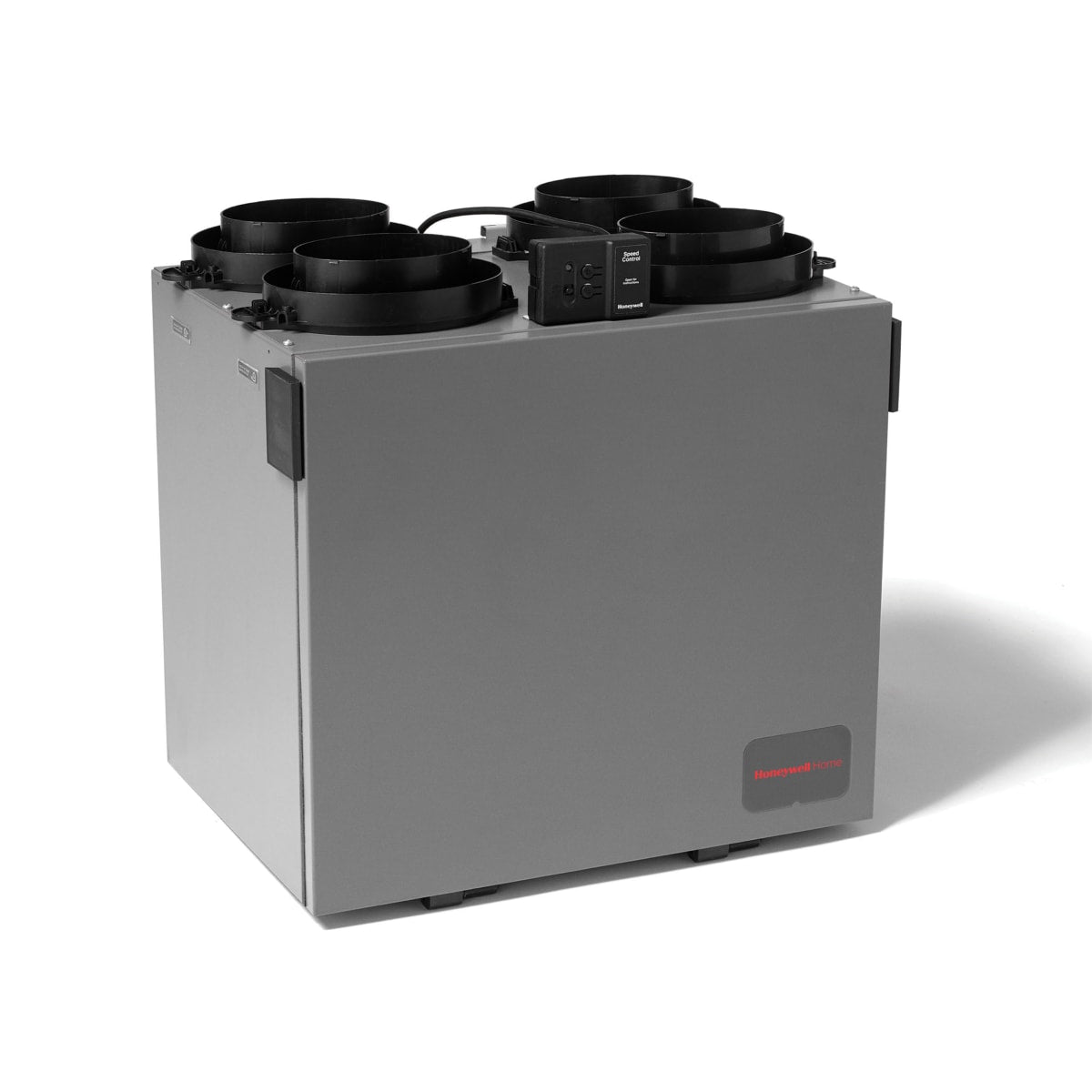

Resideo VNT5200E1000/U 200 CFM Energy Recovery Ventilator

Product Description

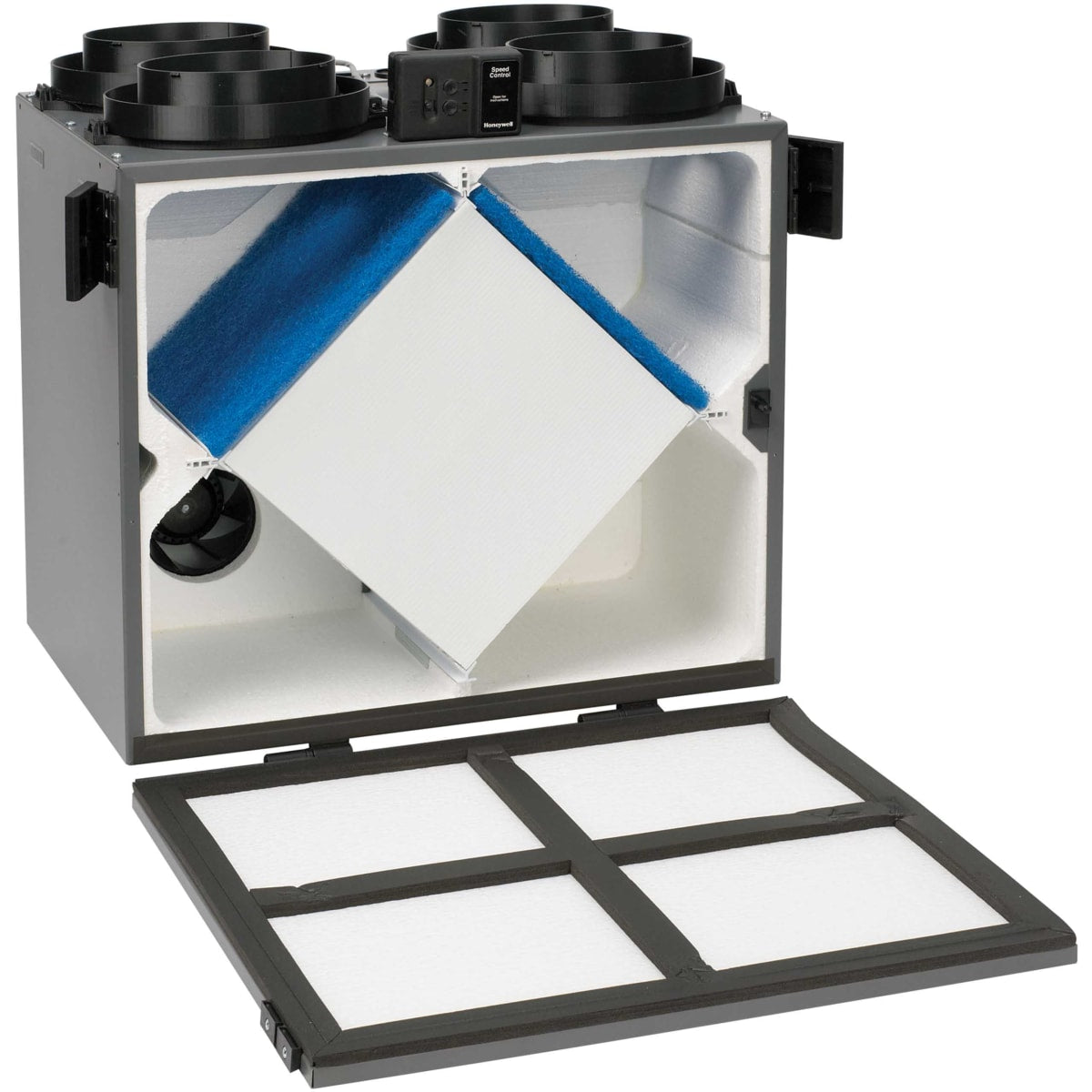

The RESIDEO VNT5200E1000/U Energy Recovery Ventilator provides fresher replacement air while recovering up to 70 percent of the exhausted air's sensible heat. It transfers moisture between air streams and draws outdoor air for distribution while exhausting stale air. The system features removable duct collars and damperless balancing. Air flow capacity: 70, 150 and 200 CFM.

• Balanced ventilation with sensible and latent heat recovery
• Removable duct collars for simplified ducting
• Compact and light weight design

Product Highlights

This ventilator is designed for simplified ducting and easy installation, providing better indoor air quality through high performance and efficiency.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: VNT5200E1000/U

Technical Specifications

• Includes: Ventilator|Energy Recovery Core|2 Filters|4 Round Duct Collars|Installation Kit|Wall Mount Bracket
• Warranty: 5 Years
• Application: Energy Recovery Ventilator
• Ventilation Type: ERV
• Approvals and Standards: UL 1812
• Ambient Relative Humidity Max: 99%
• Ambient Relative Humidity Min: 0%
• Product Category: Energy Recovery Ventilators (ERVs)
• UPC: 085267386616
• Port Location: Side
• Duct Connection: 6 Inches
• Air flow capacity: 70, 150 and 200 CFM
• Automatic defrost: Yes
• Frequency: 60 Hz
• Voltage: 120V
• Airflow Capacity: 200 CFM
