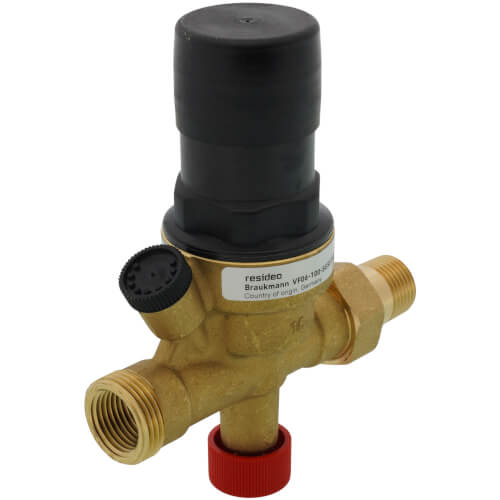

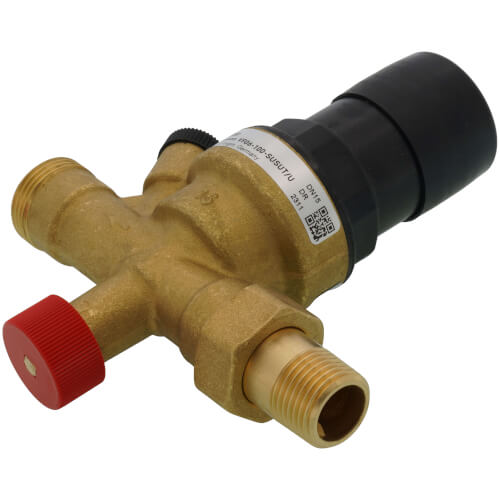

Resideo VF06-100-SUSUT 1/2 Inch Boiler Fill Valve Assembly 8-50 psi Threaded

Product Description

The Resideo VF06-100-SUSUT is a 1/2 inch boiler fill valve assembly designed for automatic control of boiler feed water and other pressure-reducing applications. Constructed for expansion tank mounting, this versatile valve features a dial set control and is compatible with both threaded and sweat connections.

• Automatic control for boiler feed water
• Compatible with threaded and sweat connections
• Adjustable pressure range of 8-50 psi

Product Highlights

This valve is ideal for regulating the pressure in boiler systems. Built with a fast-fill feature, it ensures quick and reliable filling. The built-in check valve provides added safety and reliability.

Product Information

Standard Information

• Manufacturer: Resideo
• MPN: VF06-100-SUSUT
• Brand: Resideo Braukmann

Technical Specifications

• Material: Brass
• Size: 1/2 inch
• Max Temperature: 212 degrees Fahrenheit
• Operating Pressure: 8-50 psi
• Connection Type: C Union x FNPT
• Weight: 1.48 pounds
• Dimensions: 2.75 inches length, 4.55 inches width, 2.8 inches height
