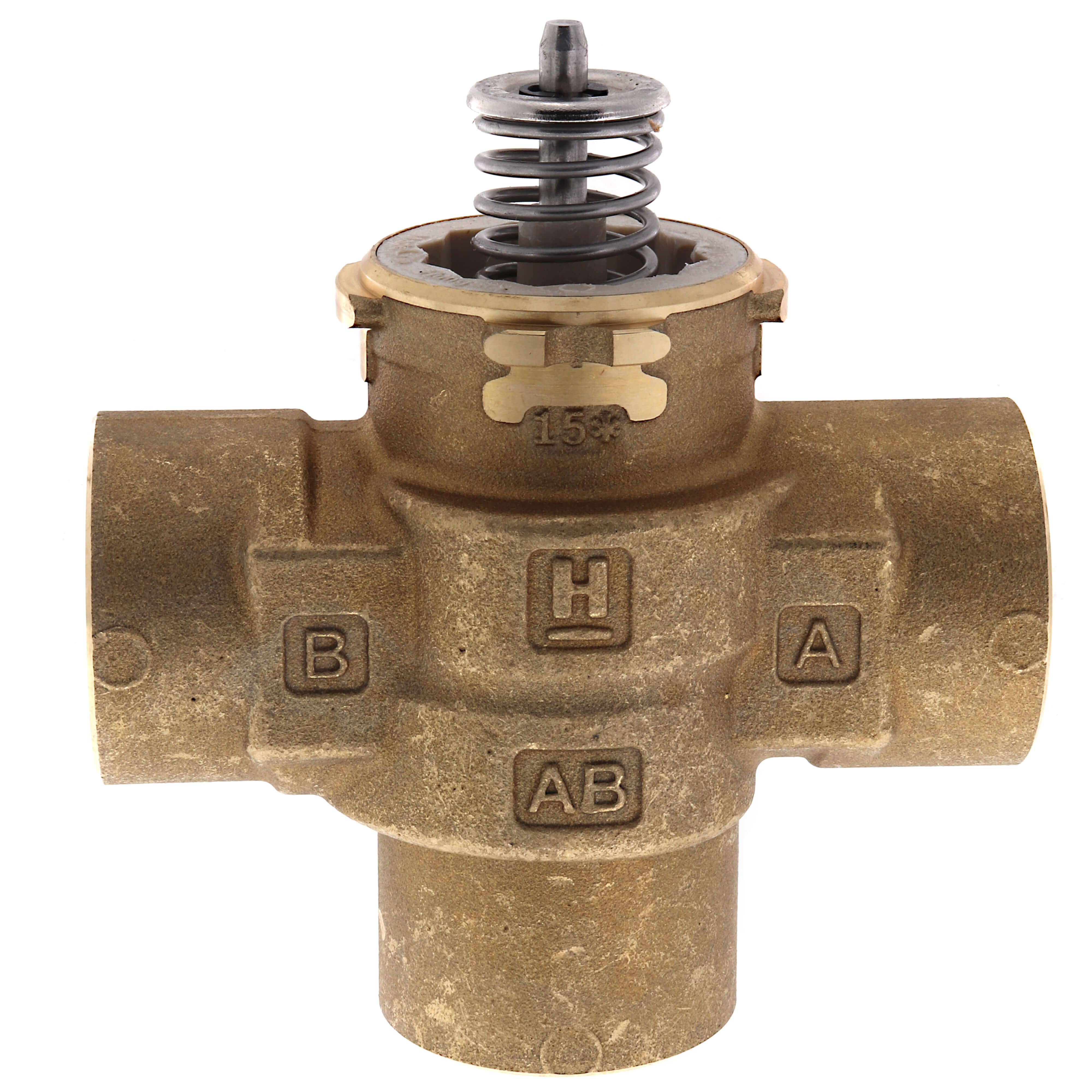

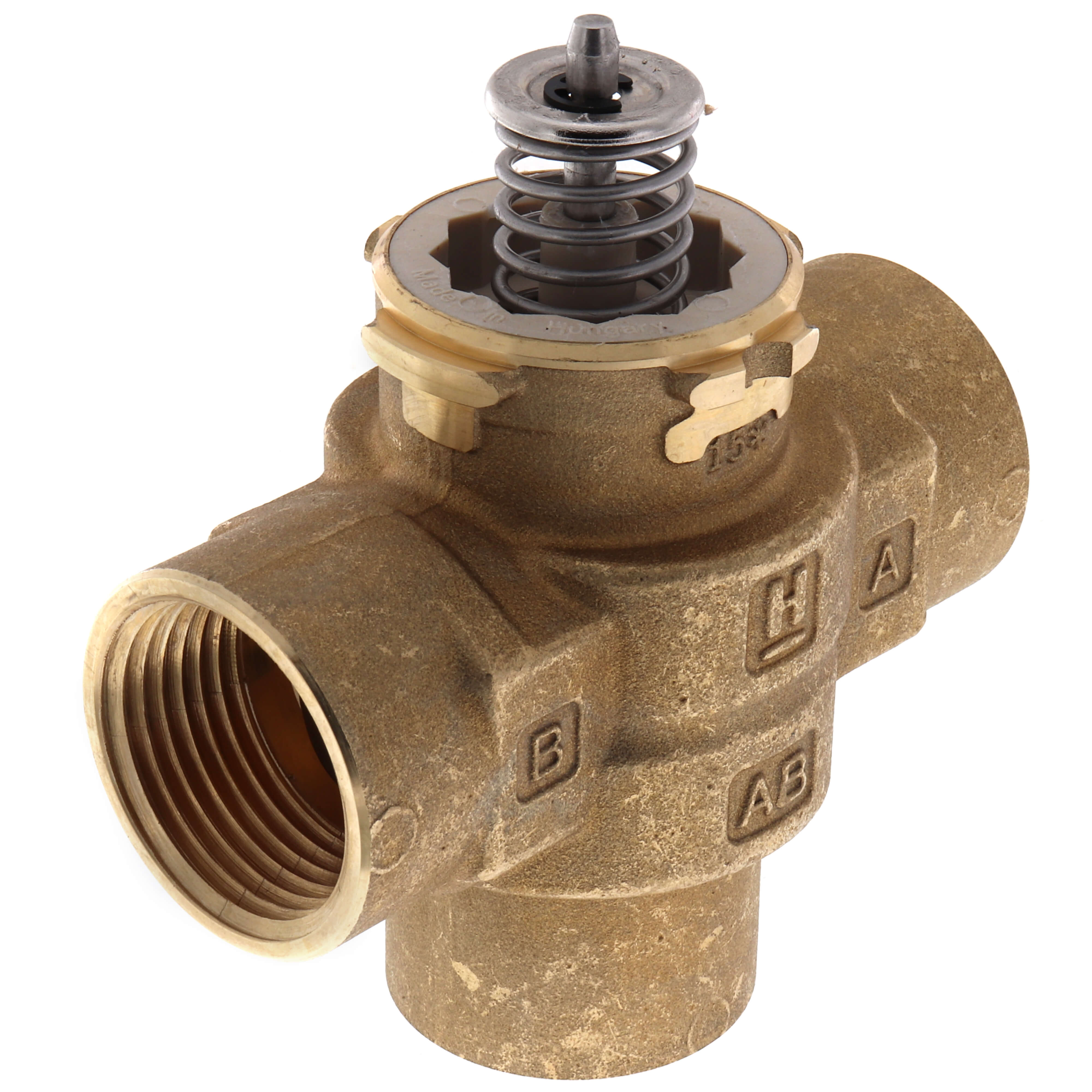

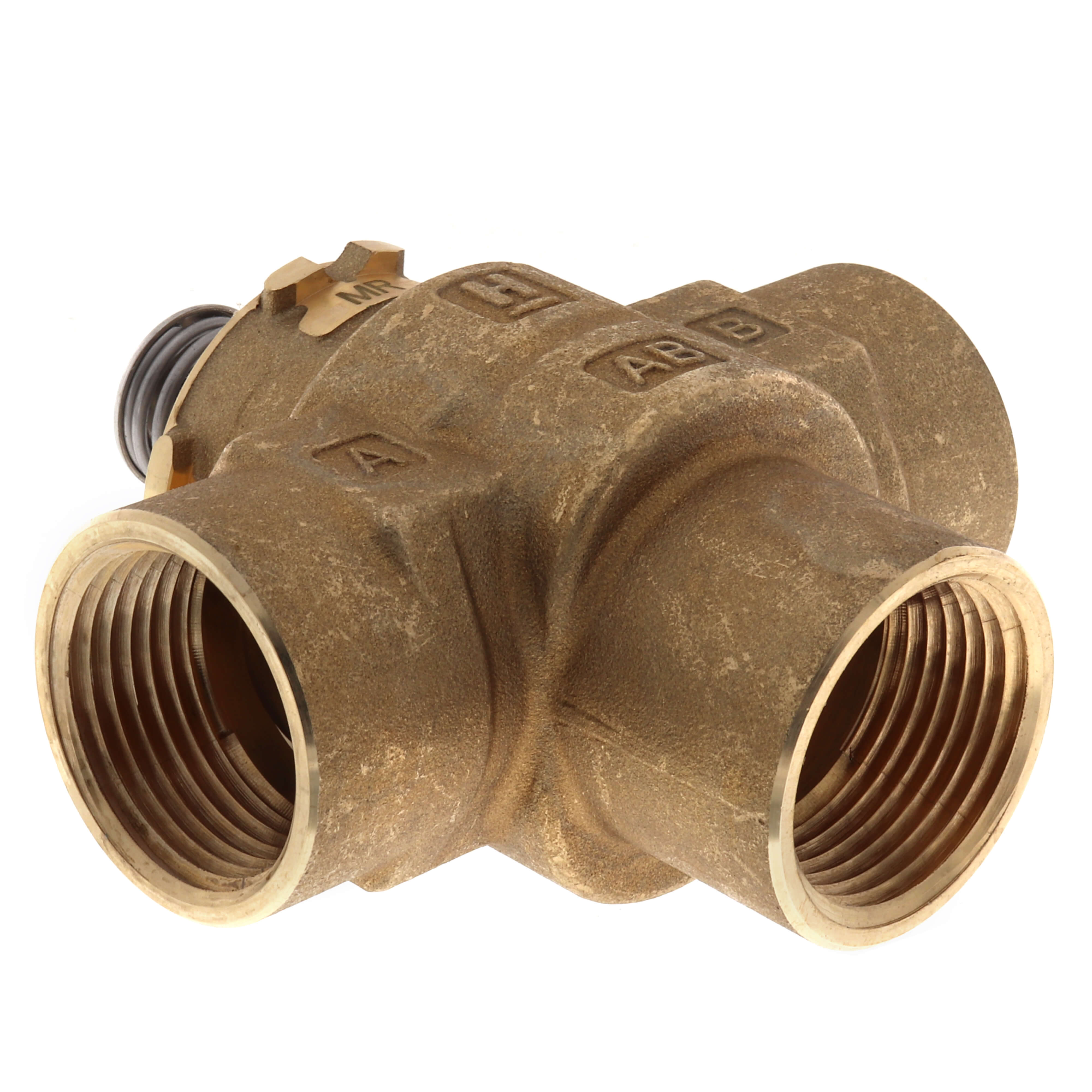

Resideo VCZMR6100 1-Inch Female NPT 3-Way Valve Assembly 8.6 Cv

Product Description

The Resideo VCZMR6100 1-Inch Female NPT 3-Way Valve Assembly 8.6 Cv is designed for hydronic applications to control the flow of hot or chilled water glycol solutions. This valve is used in heating and cooling systems for efficient zone control.

• Threaded connection type
• 8.6 Cv flow capacity
• Three-way body pattern

Product Highlights

This valve assembly by Resideo features quick opening and linear flow characteristics, making it suitable for mixing or diverting applications. The valve is part of the 6000 series for two-position control and is easily serviceable by cartridge replacement without needing to replace the valve body.

Product Information

Standard Information

• Brand: Resideo
• MPN: VCZMR6100

Technical Specifications

• Connection Type: Threaded
• Female Connection Size: 1 inch
• Flow Capacity: 8.6 Cv
• Body Pattern: 3-Way
• Valve Action: Stem up to close
• Ambient Temperature: 32 to 150 F
• Max Pressure: 300 PSI
• Weight: 1.49 pounds
• Shipping Depth: 5.95 inches
• Shipping Width: 4.65 inches
• Shipping Height: 3.3 inches
• Country of Origin: Mexico
