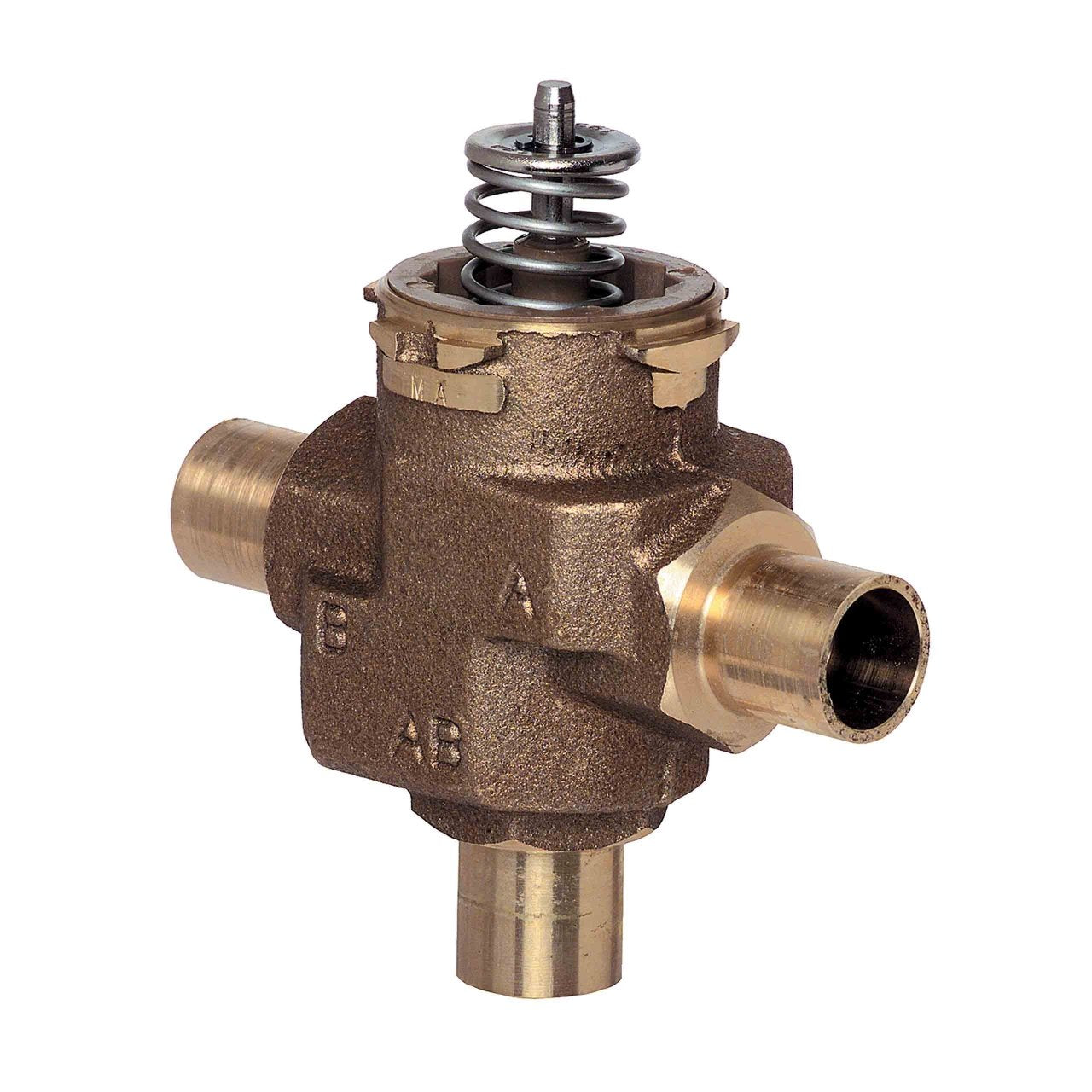

Resideo VCZMA6100/U 3-way 1/2 in Sweat VC Valve Assembly 3.8 Cv and linear flow

Product Description

RESIDEO VCZMA6100/U is a diverter three-way VC valve body designed for domestic and small commercial heating and cooling applications. This valve controls the flow of hot and/or cold water, featuring a 1/2 inch sweat connection and a 3.7 Cvs flow coefficient. It is suitable for 2-position control and can be used with On-Off 2-position VC Actuators. The valve is engineered for bi-directional installation and offers linear flow characteristics, with a maximum operating pressure of 300 psi.

• Quick open, linear, and equal percentage flow characteristics available
• Bi-directional installation for flexible setup
• Service is by replacement of cartridge, not valve body, simplifying maintenance

Product Highlights

Features quick open, linear flow, bi-directional installation, and cartridge replacement for easy service.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: VCZMA6100/U

Technical Specifications

• Type: Miscellaneous Parts
• Color: Bronze
• Includes: Valve, Cartridge Changing Tool
• Application: 2-position
• For Use With: On-Off 2-position VC Actuators
• Compatible With: Cold, Warm, and Hot Water Applications
• Connection Type: Sweat
• Controlled Media: 60% Glycol Mixture
• Media Restrictions: Free from mineral oils, hydrocarbons, or oxidating agents
• Operational Lifetime: 10 Years
• Environment Conditions: Non-corrosive, Non-explosive
• Approvals and Standards: CSA Certified
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
• Ambient Operating Temperature Min: 32 °F (0 °C)
• Ambient Operating Temperature Max: 150 °F (65 °C)
• Differential Pressure for Close-off Max: 60 psi (414 kPa, 4 bar)
• Flow Coefficient: 3.7 Cvs (3.2 Kvs)
• Media Temperature Min: 34 °F (1 °C)
• Media Temperature Max: 203 °F (95 °C)
• Operating Pressure Max: 300 psi (2068 kPa, 20 Bar)
• Seal Material: EPDM Rubber
• Shipping and Storage Temperature Min: -40 °F (-40 °C)
• Shipping and Storage Temperature Max: 150 °F (65 °C)
• Static Pressure Rating: 300 psi (2068 kPa, 20 Bar)
• Valve Body Material: Brass
• Valve Body Pattern: Three-way, A-AB-B
• Valve Cartridge: Yes
• Valve Flow Characteristic: Linear
• Valve Seat Material: EPDM O-ring seals on Noryl piston
• Valve Stem Material: Stainless Steel
• Valve Stem Travel: 0.4 in (10 mm)
• Category: Zone Valves
• Product Category: Control Valves & Actuators
• Product Subcategory: Zone Valves
• Series: VC Series
• Size: 1/2 Inch
• Trim Material: Ryton, Noryl Engineering Plastic Cartridge
• Valve Type: Cartridge Cage Valve
