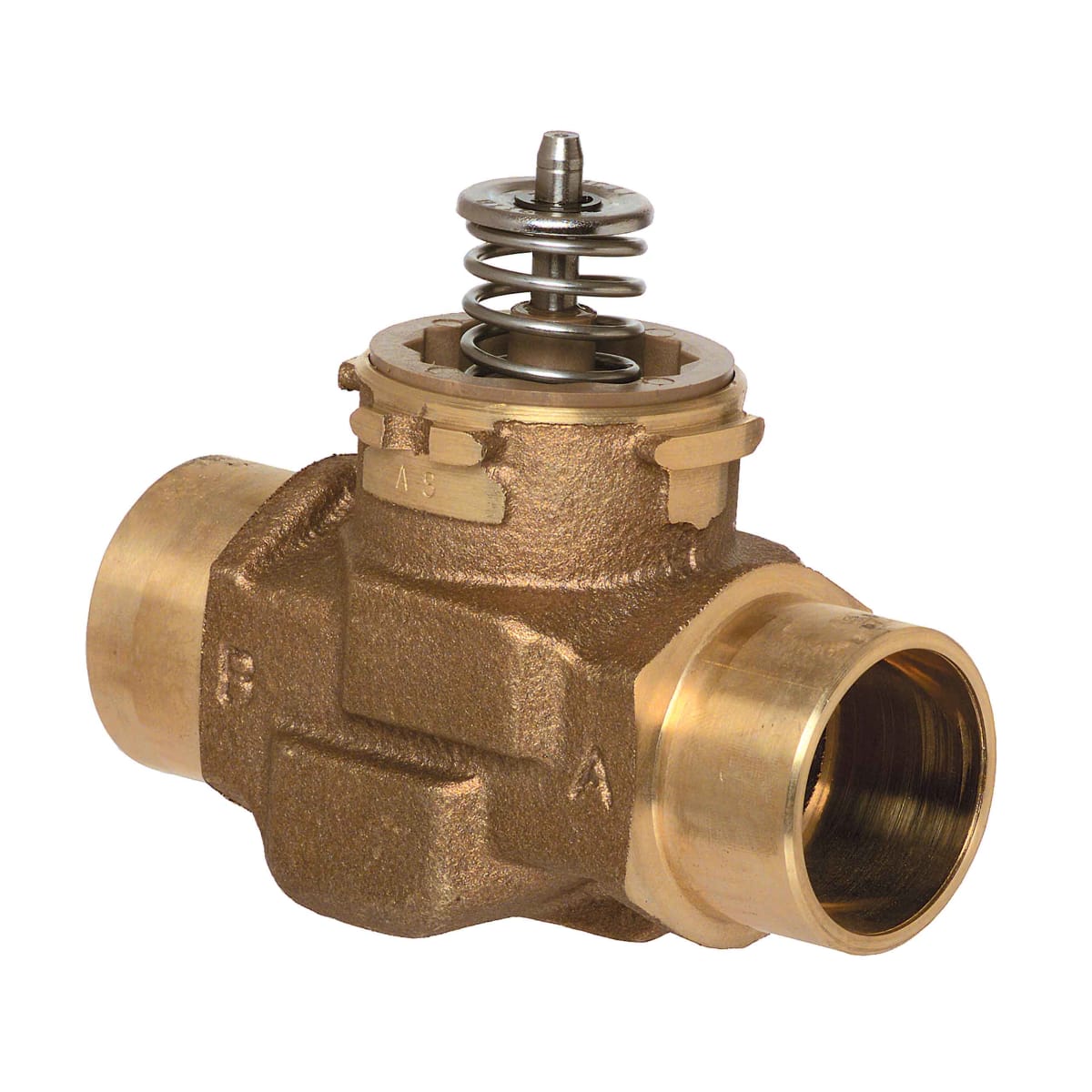

Resideo VCZAS1100/U 2-way 1 in Sweat VC Valve Assy 6.6 Cv and linear flow

Product Description

The RESIDEO VCZAS1100/U is a 2-way 1 inch sweat VC valve assembly with a 6.6 Cv and linear flow characteristics, designed for 2-position control. This valve is suitable for domestic and small commercial heating and cooling applications, providing effective zone control. It is compatible with cold, warm, and hot water, and can handle up to 60% glycol mixture. With a 10-year operational lifetime and CSA certification, it ensures reliable performance.

• Quick open, linear, and equal percentage flow characteristics available
• Bi-directional installation
• High close-off rating independent of Cv

Product Highlights

Easy cartridge replacement rebuilds valve to factory-new condition, requiring no tools for actuator installation or removal.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: VCZAS1100/U

Technical Specifications

• Type: Miscellaneous Parts
• Includes: Valve, Cartridge Installation Wrench
• Application: 2-position
• For Use With: On-Off VC Actuators
• Compatible With: Use in cold, warm, and hot water applications
• Connection Type: Sweat
• Controlled Media: 60% Glycol Mixture
• Cartridge Material: Ryton and Noryl Plastic
• Media Restrictions: Must be free from mineral oils, or additives containing hydrocarbons or oxidating agents
• Operational Lifetime: 10 Years
• Environment Conditions: Non-corrosive, Non-explosive
• Approvals And Standards: CSA Certified
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
