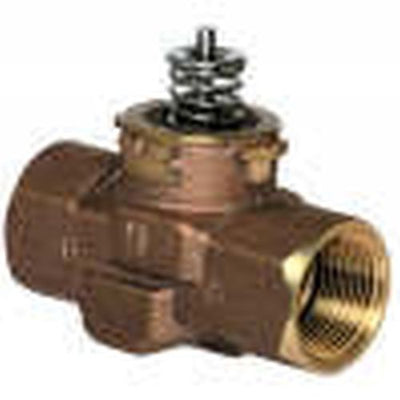

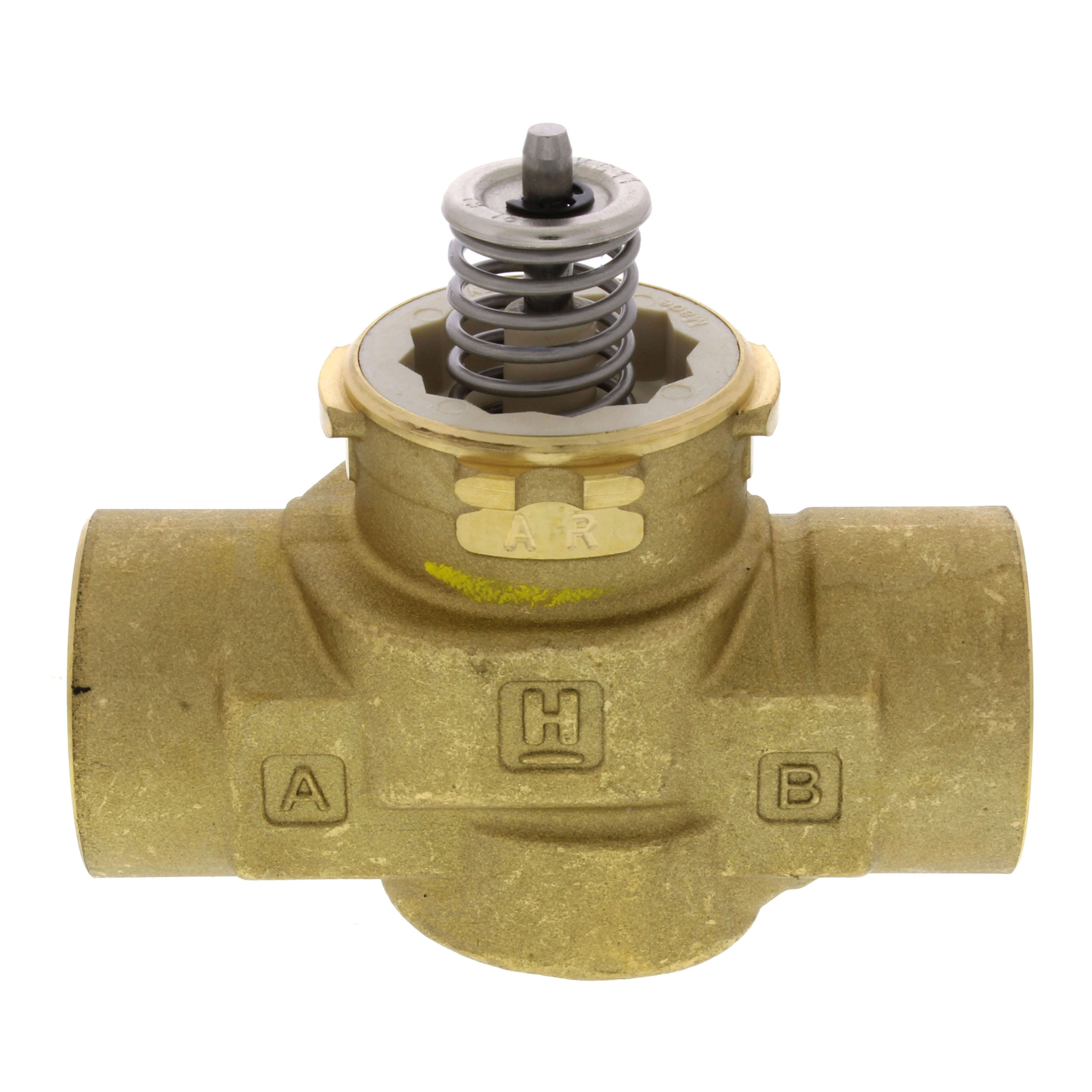

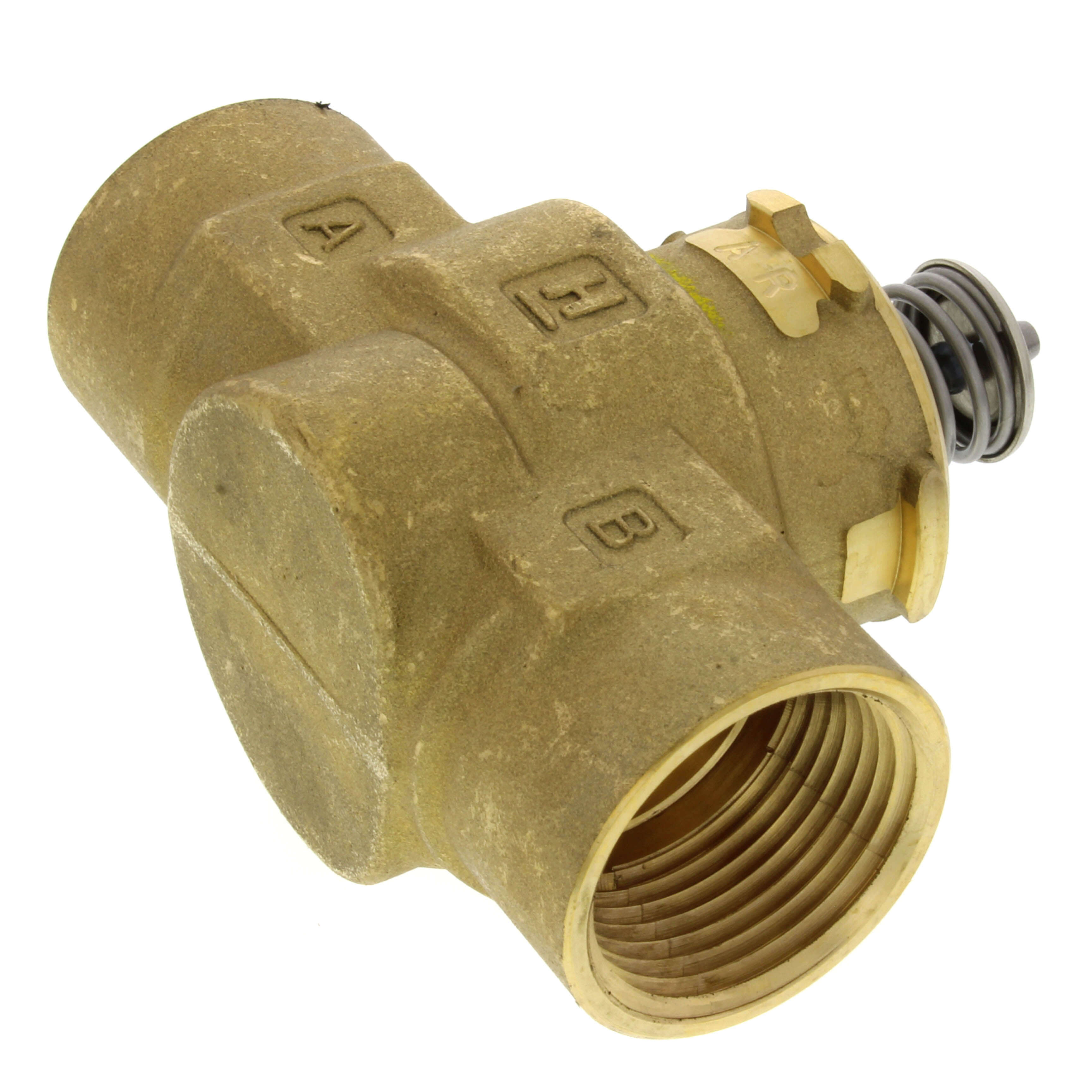

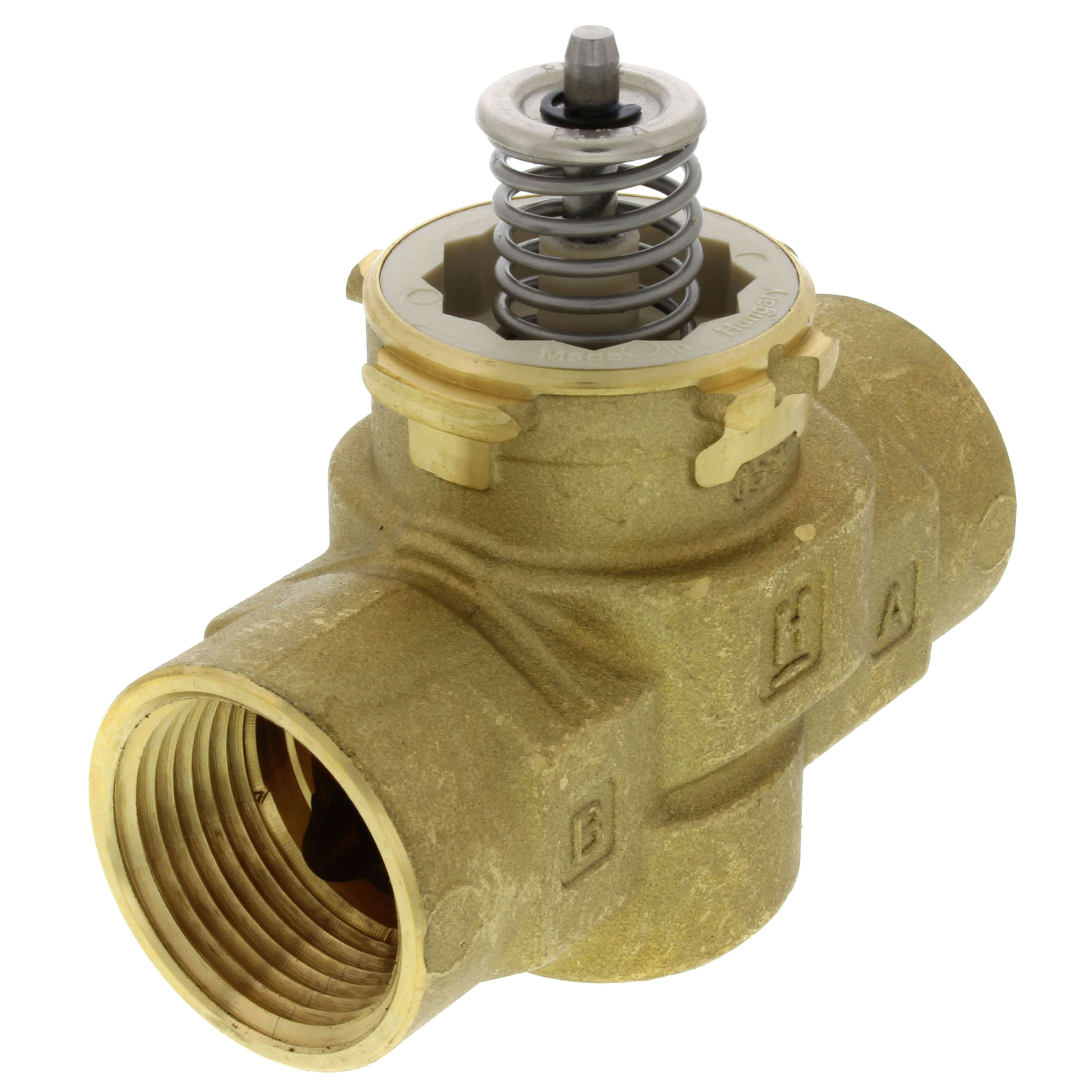

Resideo VCZAR1100 1 Inch NPT 2-Way 6.6CV Valve, Any Type Actuator

Product Description

The Resideo VCZAR1100 is a high-performance 1 inch NPT 2-way control valve designed for efficacy and durability in various industrial environments. Ideal for regulating the flow of chilled or hot water up to 60% glycol concentration, this valve is perfect for professionals in the HVAC industry.

• Robust construction ensures long-term durability and reliability.
• Flexible actuation suitable for multiple actuator types.
• Optimal for space-constrained installations due to its compact design.

Product Highlights

This valve features quick open, linear, and equal percentage flow characteristics conducive to precise control. Bi-directional installation and a high close-off rating independent of Cv add to the utility of the VCZAR1100.

Product Information

Standard Information

• Brand: Resideo Braukmann

Technical Specifications

• Connection Type: Threaded
• Controlled Fluid: Chilled or hot water with up to 60% Glycol
• Max Differential Pressure: 60 psi
• Flow Capacity (Cv): 6.6
• Max Pressure (PSI): 300
• Ambient Temperature: 32 to 150 F
• Temperature Range (F): 34°F - 203°F
