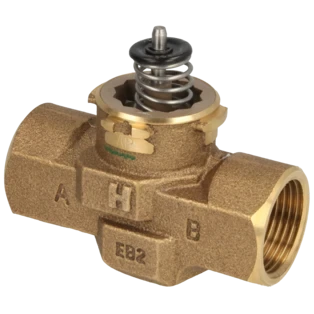

Resideo VCZAP1000 2-way valve 1 inches internal thread (VCZAP1000/U)

Product Description

The Resideo VCZAP1000 is a 2-way valve for hydronic heating and cooling systems. It features a brass valve body with a 1" internal thread connection and a kvs value of 5.5 m3/h, supporting differential pressures up to 4 bar and media temperatures from 1 to 95 C. The valve is supplied without an actuator and is designed for silent, sinusoidal actuator travel, suitable for mixing or diverting duties with low- or line-voltage control.

• Brass 2-way diverter valve with 1" internal thread and kvs 5.5 m3/h
• Supports differential pressure up to 4 bar and media temperatures from 1 to 95 C
• Supplied without actuator; designed for silent sinusoidal actuator travel and compatible with low- or line-voltage controllers

Product Highlights

2-way hydronic diverter valve, 1" internal thread, kvs 5.5 m3/h, 1–95 C media temperature, 4 bar differential pressure, actuator not included

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: VCZAP1000

Technical Specifications

• Brand: RESIDEO
• MPN: VCZAP1000
• Manufacturer part number: VCZAP1000/U
• Product type: 2-way diverter valve (On/Off)
• Connection: 1" internal thread
• Material: Brass
• Kvs value: 5.5 m3/h
• Differential pressure: 4 bar
• Media temperature: 1 to 95 C
• Ambient temperature: max 65 C
• Weight: 0.5 kg
• Actuator included: No
• Function: Mixing or diverting duties for hydronic systems
• Control compatibility: Low- or line-voltage controllers (room thermostat, aquastat, flow switch with NO or change-over contact)
• Operational design: Sinusoidal actuator travel for silent operation and to avoid water hammer
• OEG number: 512240086
