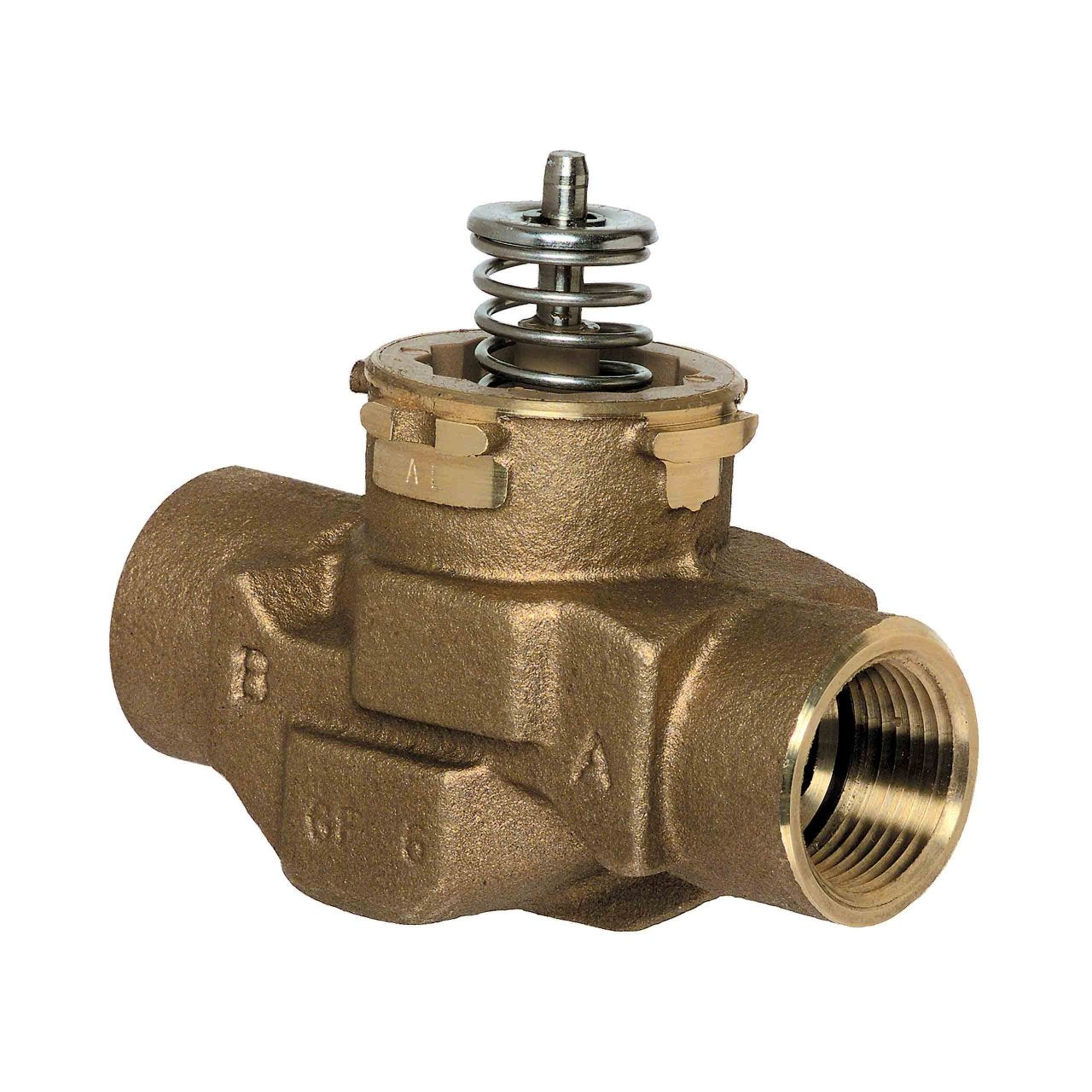

Resideo VCZAL1100/U 2-way 3/4 in fNPT VC valve assy 4.7 Cv linear flow

Product Description

The RESIDEO VCZAL1100/U is a 2-port VC valve body designed for domestic and small commercial heating and cooling applications, specifically for zone control. This balanced 2-position hydronic valve controls the flow of hot and/or cold water and can be combined with any VC series On/Off actuator. It features a rugged design, high pressure differential up to 4 bar, and high flow rate capacity. The valve housing is made of bronze, and the cartridge is made of Ryton and Noryl plastic with a stainless steel spindle.

• Quick open, linear, and equal percentage flow characteristics are available.
• Bi-directional installation is supported.
• Actuator installation or removal requires no tools, and removal does not necessitate draining the system.

Product Highlights

This valve offers a 10-year operational lifetime, with service achieved by replacing the cartridge, which rebuilds the valve to factory-new condition. It is CSA Certified and compatible with cold, warm, and hot water applications, including up to 60% glycol mixtures.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: VCZAL1100/U

Technical Specifications

• Application: 2-position
• For Use With: On-Off VC Actuators
• Compatible With: Use in cold, warm, and hot water applications
• Connection Type: Female NPT
• Controlled Media: 60% Glycol Mixture
• Cartridge Material: Ryton and Noryl Plastic
• Media Restrictions: Must be free from mineral oils, or additives containing hydrocarbons or oxidating agents
• Operational Lifetime: 10 Years
• Environment Conditions: Non-corrosive, Non-explosive
• Approvals and Standards: CSA Certified
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
• Includes: Valve, Cartridge Installation Wrench
• Ambient Operating Temperature Min: 32 °F, 0 °C
• Ambient Operating Temperature Max: 150 °F, 65 °C
• Close-off Pressure: 60 psi, 414 kPa (4 bar)
• Flow Coefficient: 4.7 Cv|4.0 Kvs
• Media Temperature Min: 34 °F, 1 °C
• Media Temperature Max: 203 °F, 95 °C
• Operating Pressure Max: 300 psi, 2068 kPa (20 Bar)
• Seal Material: EPDM Rubber
• Shipping and Storage Temperature Min: -40 °F, -40 °C
• Static Pressure Rating: 300 psi, 2068 kPa (20 Bar)
• Valve Body Material: Bronze
• Valve Body Pattern: Two-way, Straight Through
• Valve Cartridge: Yes
• Valve Flow Characteristic: Linear
• Valve Seat Material: EPDM O-ring seals on Noryl piston
• Valve Stem Material: Stainless Steel
• Valve Stem Travel: 0.4 in, 10 mm
• Product category: Control Valves & Actuators
• Product subcategory: Zone Valves
• Series: VC Series
• Size: 3/4 Inch
