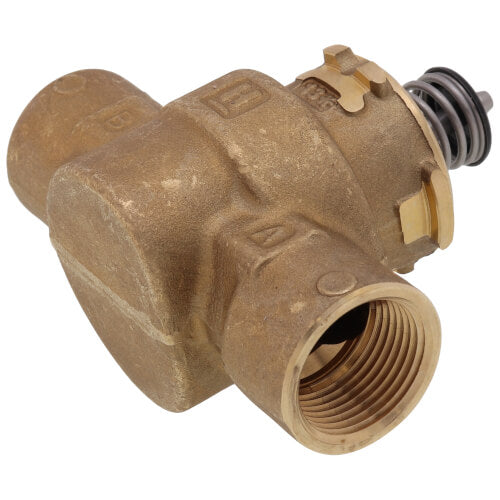

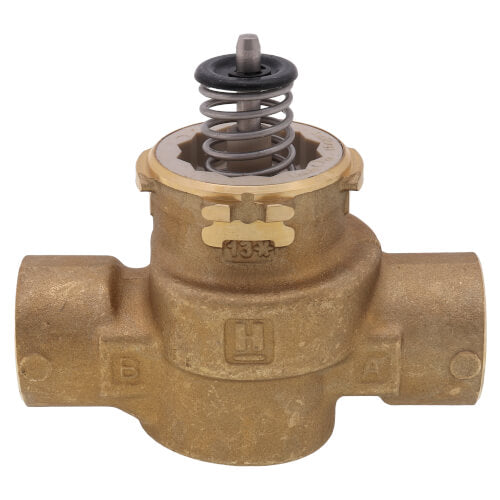

Resideo VCZAL1000 | 3/4 FNPT, 2-Way VC Hydronic Valve Assembly (6.3 Cv)
Resideo VCZAL1000 | 3/4 FNPT, 2-Way VC Hydronic Valve Assembly (6.3 Cv)

Resideo VCZAL1000 | 3/4 FNPT, 2-Way VC Hydronic Valve Assembly (6.3 Cv)

Brand: RESIDEO BRAUKMANN
SKU: VCZAL1000
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm
$89.34
$89.34
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Resideo VCZAL1000 is a 3/4 FNPT 2-Way VC Hydronic Valve Assembly designed for effective control of heating and cooling systems. This valve is suitable for use with hot or chilled water and glycol solutions up to sixty percent concentration.

  • 3/4 inch diameter, allowing for versatile installation
  • Flow capacity of 6.3 Cv for efficient performance
  • Durable construction for long-lasting use in industrial applications

Product Highlights

High power and linear actuation ideal for demanding environments.

Product Information

Standard Information

  • Brand: Resideo
  • MPN: VCZAL1000

Technical Specifications

  • Item Number: VCZAL1000
  • Diameter: 3/4 inch
  • Flow Capacity (Cv): 6.3
  • Connection Type: Threaded
  • Max Pressure: 300 psi
  • Fluid Temperature Range: 34 F to 203 F
  • Max Differential Pressure: 60 psi
  • Ambient Temperature Range: 32 to 150 F
