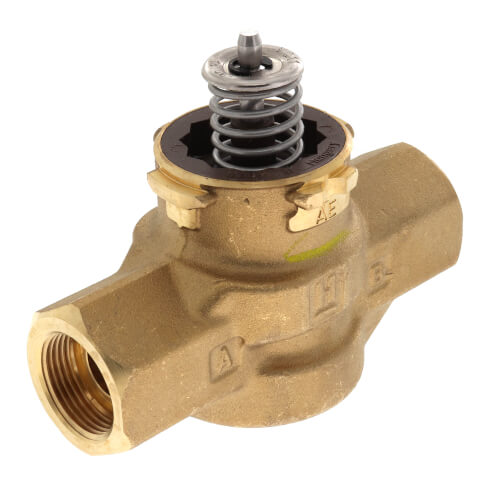

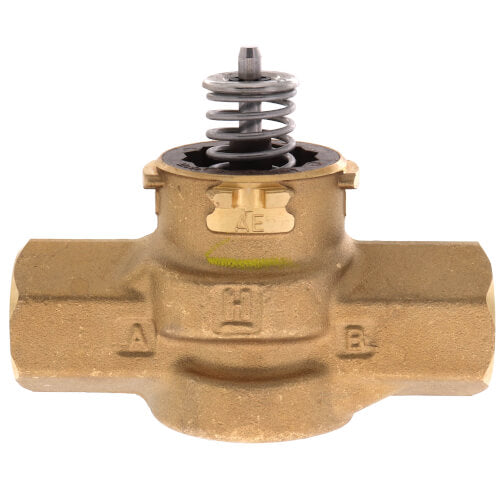

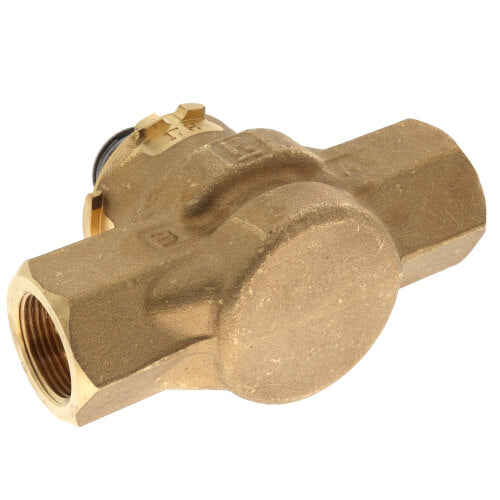

Resideo VCZAE1100 1/2 Inverted Flare VC Valve Assembly 3.2 Cv

Product Description

The Resideo VCZAE1100 is a 1/2 inch inverted flare valve assembly designed for effective flow control in hydronic heating and cooling systems. This two-way valve handles both hot water and chilled water with up to 60% glycol solution concentration.

• Flow capacity of 3.2 Cv for efficient performance
• Bi-directional design for flexible installation
• Compatible with on-off type VC actuators for tailored zoning control

Product Highlights

The VCZAE1100 valve ensures precise control in heating and cooling applications, with options for SPST or SPDT controllers.

Product Information

Standard Information

• Manufacturer: Resideo
• Part ID: 92127

Technical Specifications

• Flow Type: Linear
• Body Pattern: 2-Way, Straight-Through
• Connection Type: Inverted Flare
• Controlled Fluid: Chilled or hot water
• Max Pressure: 300 PSI
• Temperature Range: 34°F - 203°F
• Ambient Temperature: 32°F to 150°F
• Stem Travel: 0.4 inches
• Max Differential: 60 PSI
