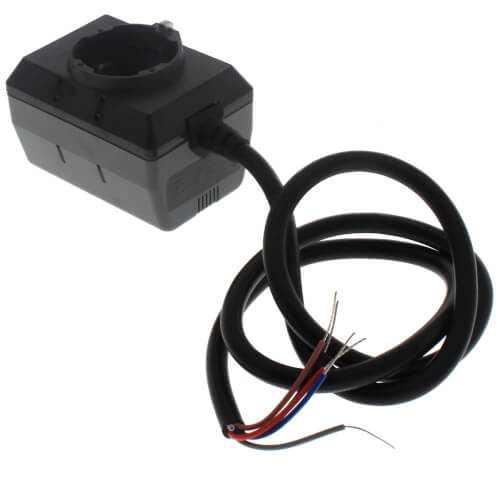

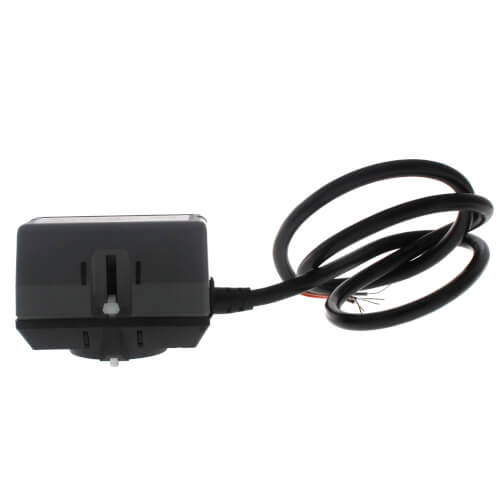

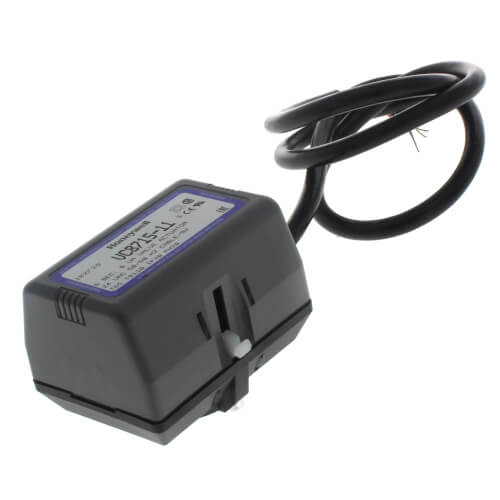

Resideo VC8715ZZ11 24V on-off VC Actuator w/ aux. switch

Product Description

Resideo VC8715ZZ11 is a 24 VAC actuator used in central heating and cooling systems. It controls fan coil systems, radiators, and convectors. This actuator can be operated by low or line voltage controllers such as SPST or SPDT. The actuator is designed for durability and efficiency in HVAC applications.

• Utilizes 24 VAC control signal.
• Quick installation with no need to drain the system.
• Compatible with VC8715AM1000 and VC8715AS1000 models.

Product Highlights

This actuator comes with a six-second nominal timing feature, allowing for quick operation. The double insulated design ensures safety and longevity. Quick-connect or one-meter cable options make wiring easy.

Product Information

Standard Information

• Brand: Resideo
• MPN: VC8715ZZ11

Technical Specifications

• Voltage: 24 VAC
• Timing: 6 seconds
• Position: Normally Closed
• Weight: 0.99 pounds
• Dimensions: 5.95 inches (L) x 4.6 inches (W) x 3.4 inches (H)
• Compatibility: VC8715AM1000, VC8715AS1000
• Temperature Range: 32 to 140 F
• Install Instructions: View Installation Manual
