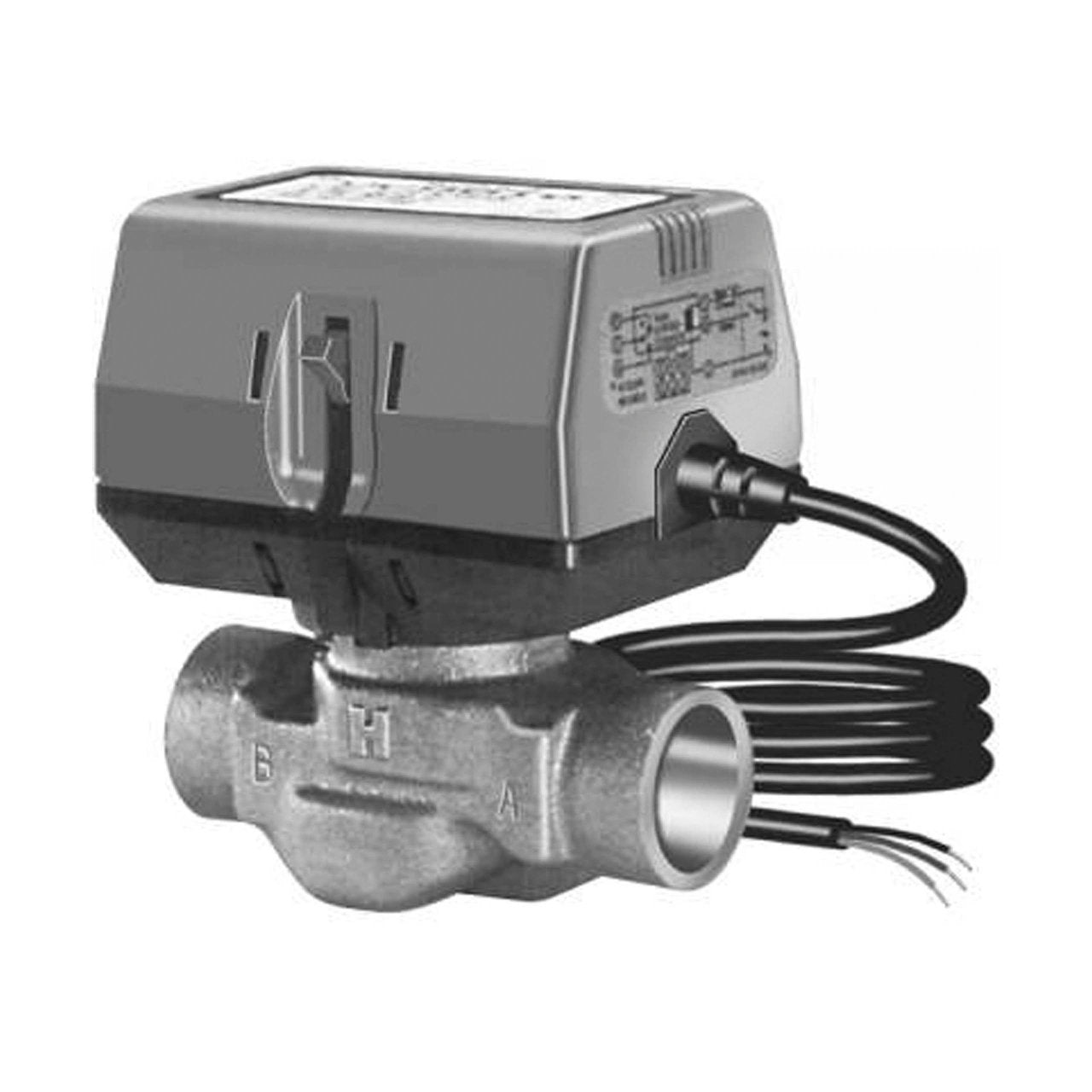

Resideo VC8711ZZ11/U 2-position Low Volt Actuator for VC Series with End Switch 24V AC

Product Description

The RESIDEO VC8711ZZ11/U is a 2-position low volt actuator with an end switch, designed for HVAC applications. It controls central heating, cooling, fan coil systems, radiators, and convectors. This actuator can be controlled by a low voltage SPST or SPDT switch, a pulse-width modulated 24 V AC signal, or a floating input modulating controller. It is compatible with two-way or three-way valves, including 1000-series 2-way and 6000-series 3-way cartridges.

• Use with two-way or three-way valves
• Double insulated actuator
• Five foot plenum-rated cable

Product Highlights

Features quick replacement of moving parts and does not require system draining for actuator head installation.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: VC8711ZZ11/U

Technical Specifications

• Product Type: Miscellaneous Parts
• Application: HVAC
• Compatible Valves: VC Series Valves, 1000 Series 2-way, 6000 Series 3-way
• Media Compatibility: Cold, warm, and hot water applications
• Certifications: UL Recognized, File# MH11826, CSA Certified: LR1322-367, CE Approval: 89/336/ECC, CE Approval: 73/23/EEC
• Operating Relative Humidity Maximum: 95% Non-condensing
• Operating Relative Humidity Minimum: 5% Non-condensing
• Control Signal: SPST, Two position
• Media Temperature Maximum: 203 °F (95 °C)
• Mounting Type: Direct Coupled
• Ambient Operating Temperature Minimum: 32 °F (0 °C)
• Ambient Operating Temperature Maximum: 150 °F (65 °C)
• Shipping and Storage Temperature Minimum: -40 °F (-40 °C)
• Shipping and Storage Temperature Maximum: 150 °F (65 °C)
• Protection Class: Double Insulated, IP40
• Fail-Safe Operation Type: Stays in place
• Drive Time: 6 sec
• Input Voltage: 24 V AC
• Frequency: 60 Hz
• Power Consumption: 6 VA
• Differential Pressure for Close-off Maximum: 60 psid (400 kPa)
• Number of Internal Auxiliary Switches: 1
• Actuator Connection: Valve
• Connection Length: 39 in (1 m)
• Connection Type: Cable
• Stroke Maximum: 0.4 in (10 mm)
• Housing Material: Plastic
