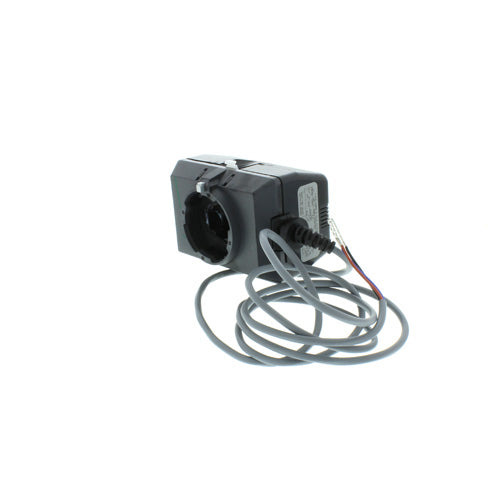

Resideo VC8114ZZ11 Two Position Low Volt Actuator for VC Series Valves w/ Flexible Conduit Adapter

Product Description

The Resideo VC8114ZZ11 is a two-position actuator designed for low voltage applications with VC Series valves. This unit is suitable for HVAC systems, specifically for controlling heating and cooling systems, fan coil systems, radiators, and convectors. It can connect to low or line voltage controllers for simple operation.

• Operates on 24 volts.
• Compatible with two-way and three-way valves.
• Includes quick-connect electrical connections for easy setup.

Product Highlights

This actuator is easy to install and does not require system draining for head installation. It features a six-second nominal timing for on/off models, making it an ideal choice for efficient HVAC control.

Product Information

Standard Information

• Manufacturer: Resideo
• Model: VC8114ZZ11

Technical Specifications

• Voltage: 24 volts
• Shipping Weight: 0.89 pounds
• Dimensions: Length - 5.95 inches, Width - 4.55 inches, Height - 3.3 inches
• Control Signal: Two position, SPST
• Application: HVAC
• PSI Close-Off: 60 psi
• Temperature Range: 32°F to 150°F
• Fail Safe Mode: Non-Spring Return
