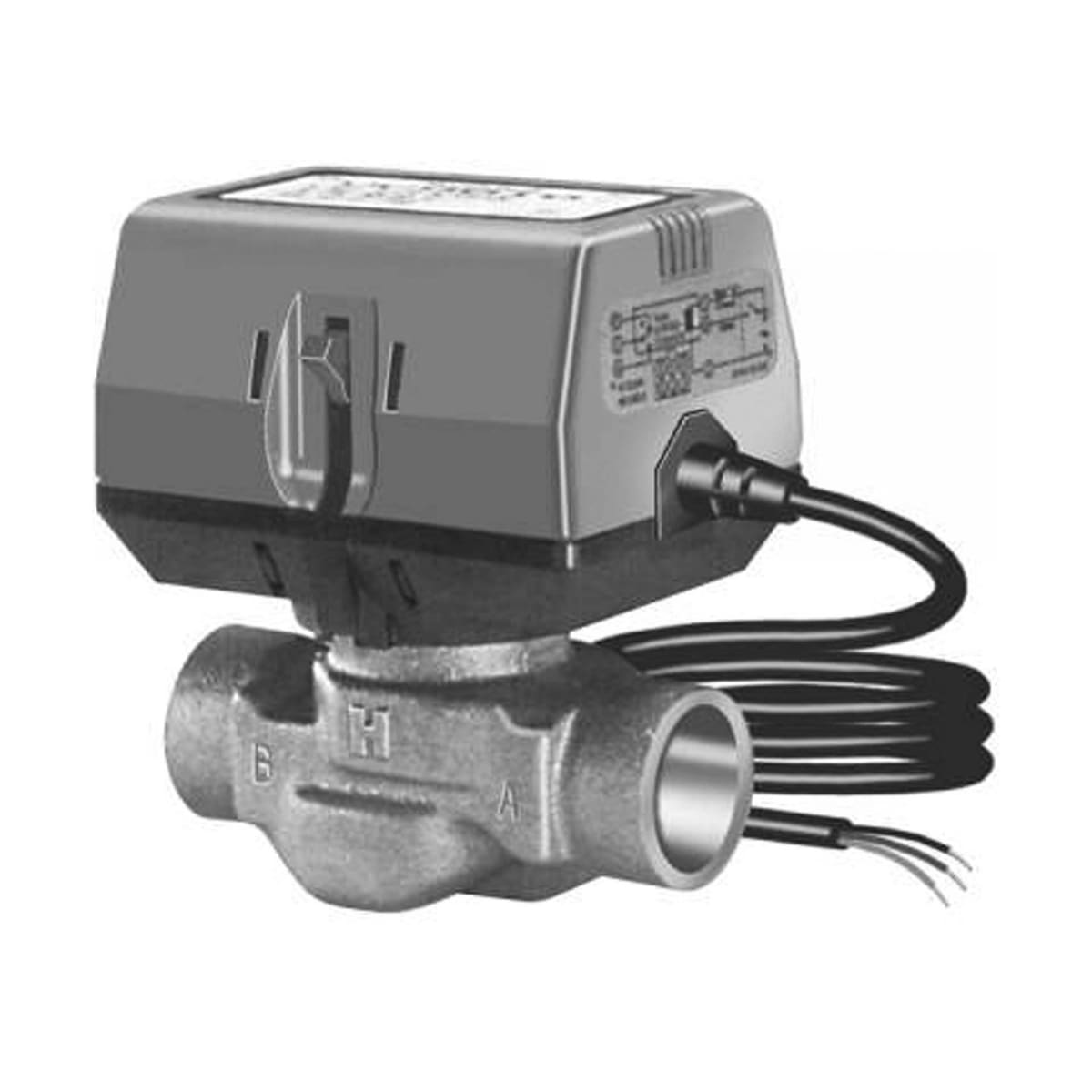

Resideo VC8111ZZ11/U 2-position Low Volt Actuator for VC Series Valve

Product Description

The Resideo VC8111ZZ11/U is a 2-position low volt actuator designed for VC series valves. This actuator enables control of central heating and cooling systems, including fan coil systems, radiators, and convectors. It is developed to work with either a low voltage SPST or SPDT switch, or through a pulse-width modulated twenty-four Volt AC signal. Its design accommodates efficient modulation and quick installation.

• Compatible with two-way and three-way valves
• Features a five-foot plenum-rated cable
• Allows for quick replacement of moving components

Product Highlights

This actuator's head installation is straightforward and does not require draining the system, making replacement simple. The fail-safe electronic options can be switched between normally open and normally closed. It is applicable for new constructions with valve bodies available for both 1000-series two-way and 6000-series three-way cartridges.

Product Information

Standard Information

• Brand: Resideo
• Part Number: HONE-VC8111ZZ11/U

Technical Specifications

• Application: HVAC
• For Use With: VC Series Valves, 1000 Series 2-way, 6000 Series 3-way
• Compatible With: Cold, warm, and hot water applications
• Approvals and Standards: UL Recognized, CSA Certified, CE Approved
• Operating Relative Humidity Min: 5% Non-condensing
• Operating Relative Humidity Max: 95% Non-condensing
