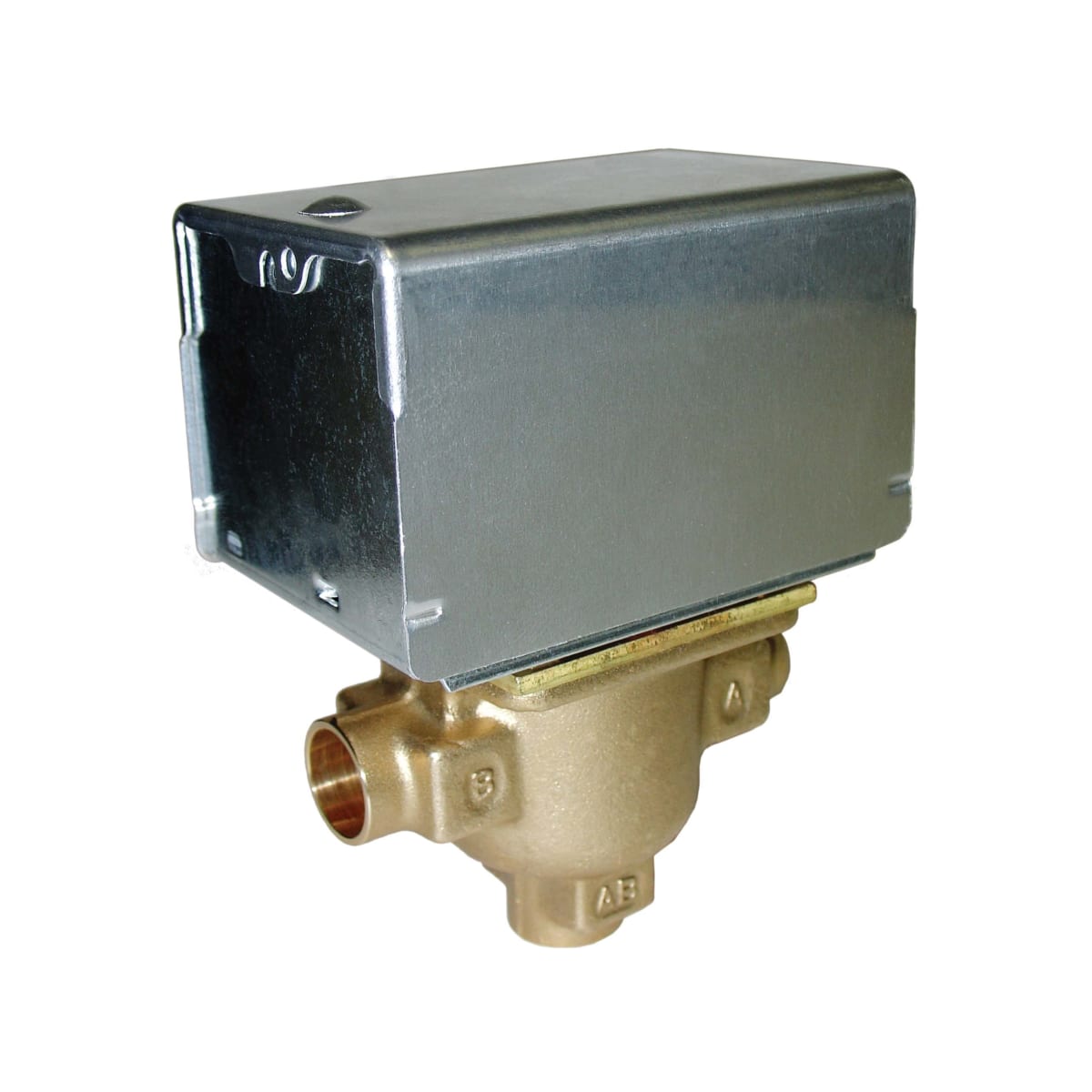

Resideo V8044E1003/U 24 Vac 1/2 in Sweat NC Zone Valve

Product Description

The Resideo V8044E1003/U is a 24 Vac zone valve designed to control hot water flow in heating systems. This valve features a built-in actuator and manual opener that streamline installation without needing to disassemble the unit.

• Manual opener allows for manual operation during power failures.
• Automatic return to position resumes function when power is restored.
• Compact design simplifies installation and maintenance.

Product Highlights

This valve is suitable for hydronic heating and steam applications, providing reliable performance in diverse environments.

Product Information

Standard Information

• Brand: Resideo
• Part Number: HONE-V8044E1003/U

Technical Specifications

• Color: Brass
• Includes: Manual Opener
• Warranty: 1 Year
• Application: Hydronic Control, Steam Valve
• Connection Type: Sweat
• Valve Ball Material: Buna-N (NBR) Rubber
• Valve Disc Material: Buna-N (NBR) Rubber
• Approvals and Standards: UL Listed: File MH11826
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
