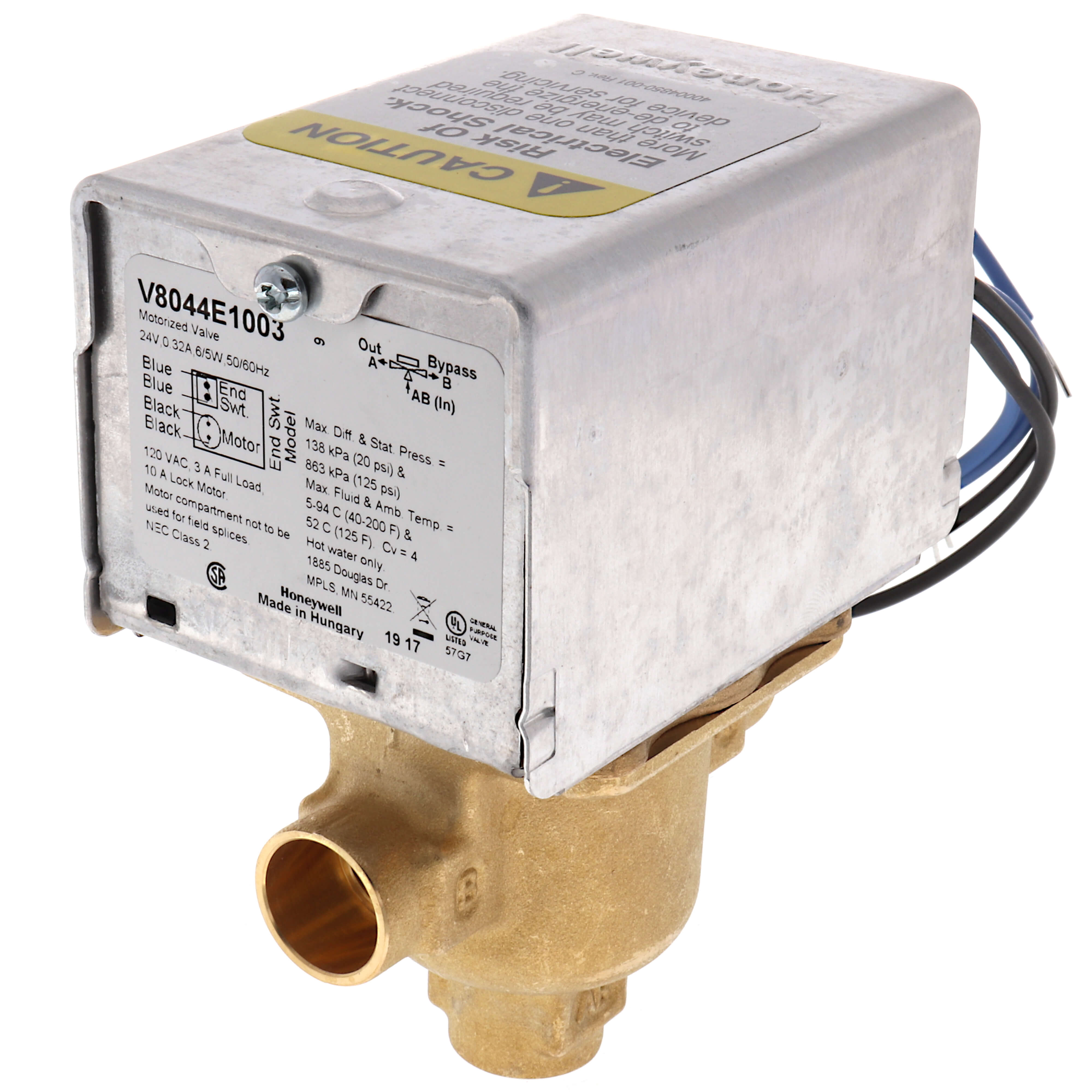

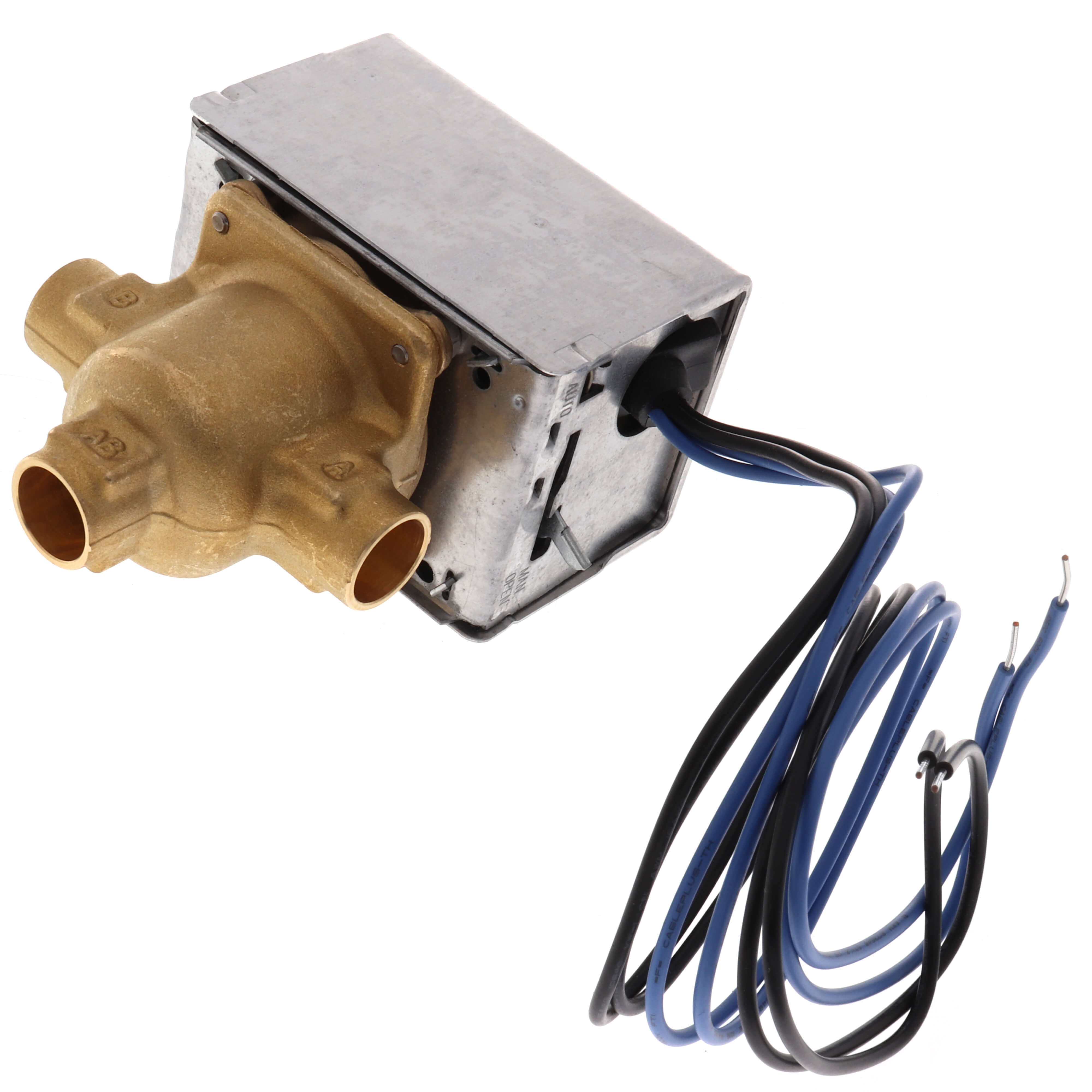

Resideo V8044E1003 1/2 Sweat Connection 3 Way Zone Valve 24V (1/2)

Product Description

The Resideo V8044E1003 is a two-position motorized zone valve designed for hydronic heating systems. This valve features a half-inch sweat connection and operates at twenty-four volts. The actuator and valve assembly work together to control the flow of hot water effectively. This zone valve is ideal for applications where zoning of heating systems is required.

• Half-inch sweat connection
• Actuator is replaceable without draining

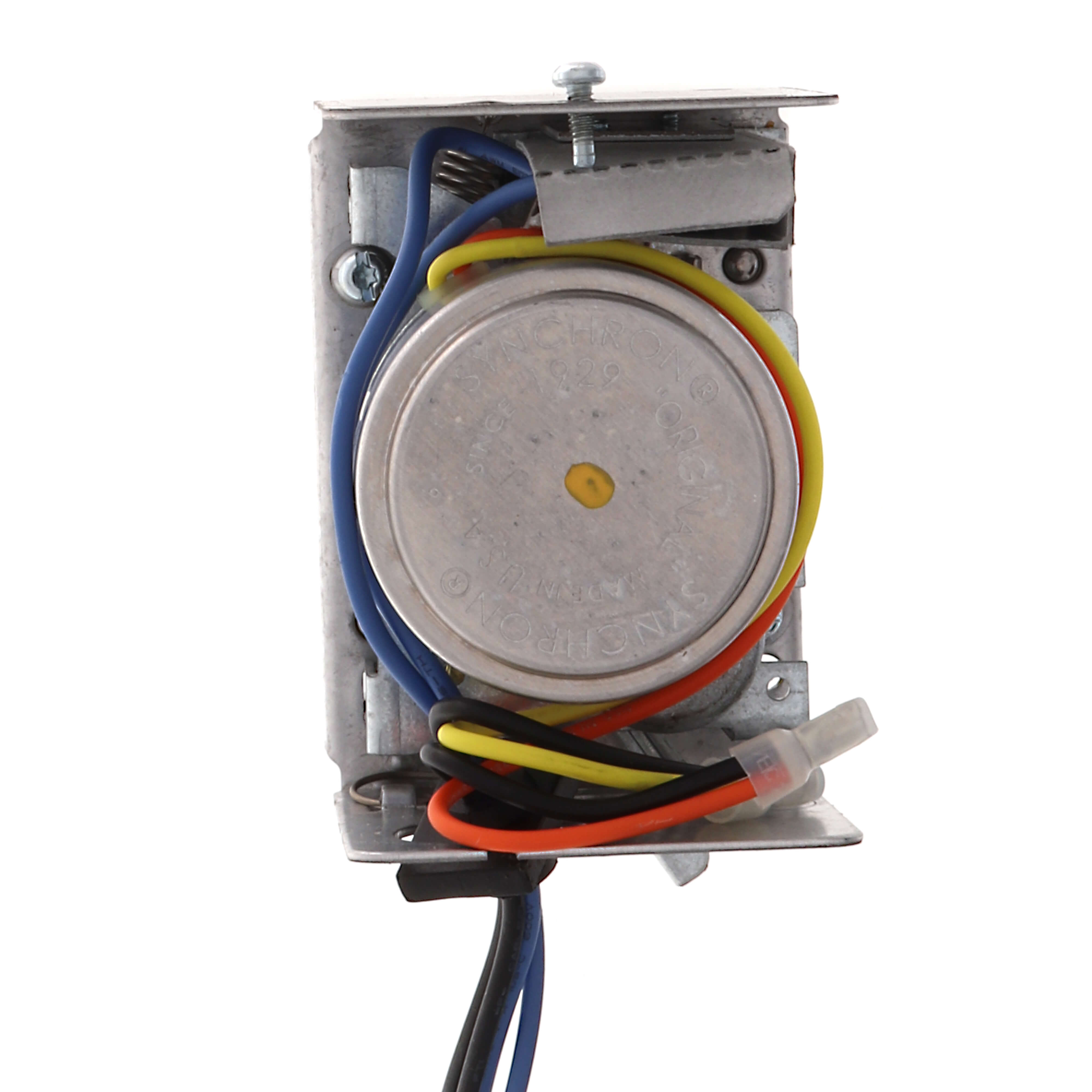

• Compact design for simple installation

Product Highlights

The Resideo V8044E1003 provides reliable performance in hydronic control applications. The device includes a manual opener for operation during power failures and returns to automatic once power is restored.

Product Information

Standard Information

• Manufacturer: Resideo
• MPN: V8044E1003

Technical Specifications

• Voltage: 24V
• Pipe Size: 1/2 inch
• Body Pattern: 3-Way, Diverting
• Capacity: 4 Cv
• Pressure Rating: 20 psi maximum
• Fluid Temperature Range: 40 F to 200 F
• Electrical Connections: 18 inch leads
• Product Dimensions: 4 7/8 inches high x 3 23/32 inches wide x 2 3/8 inches deep
