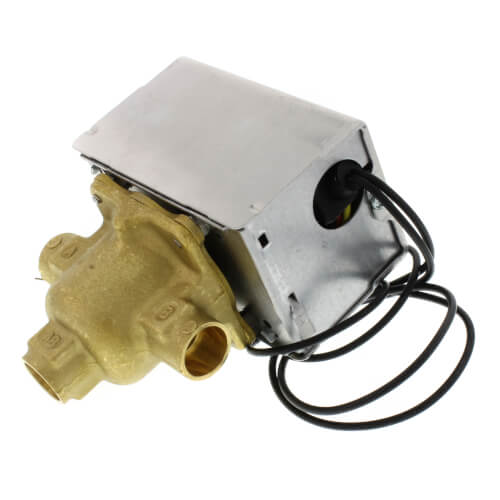

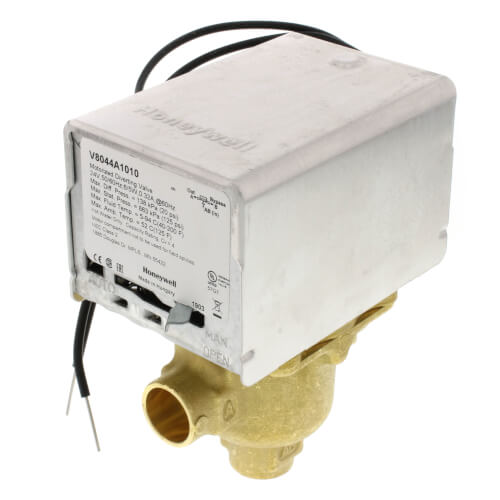

Resideo V8044A1010 1/2 inch SWT 24V DVRT Zone Valve 4CV

Product Description

The Resideo V8044A1010 1/2 inch SWT 24V DVRT Zone Valve is designed to control the flow of hot or chilled water in heating and cooling systems. It features a compact construction that makes installation easy. The manual opener allows valve operation during a power failure, and the valve returns to automatic when power is restored.

• Controls water flow in heating and cooling systems
• Manual operation during power failure
• Compact and easy to install

Product Highlights

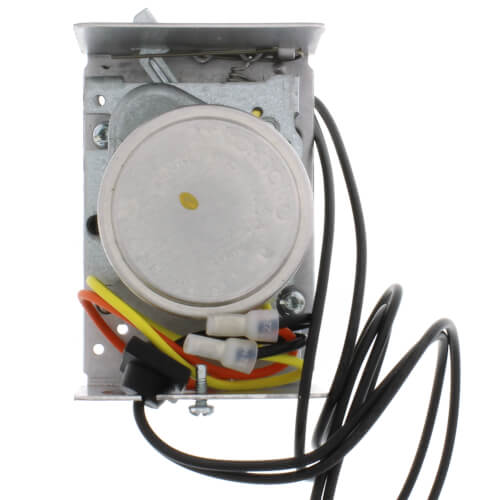

This zone valve by Resideo ensures efficient control of hot or chilled water. Designed for ease of installation and operation, it includes features like a removable powerhead and an actuator motor that can be replaced without draining the system.

Product Information

Standard Information

• Brand: Resideo
• MPN: V8044A1010
• Part ID: 37922

Technical Specifications

• Size: 1/2 inch
• Voltage: 24V
• Position: Normally Closed
• Weight: 1.9 lbs
• Length: 5.05 inches
• Width: 6.55 inches
• Height: 3.65 inches
• Body Pattern: 3-Way, Diverting
• Flow Capacity: 4 CV
• Connection Type: Sweat
• Application: Zoning
• Max Close-Off PSI: 20 psi
• End Switch: No
