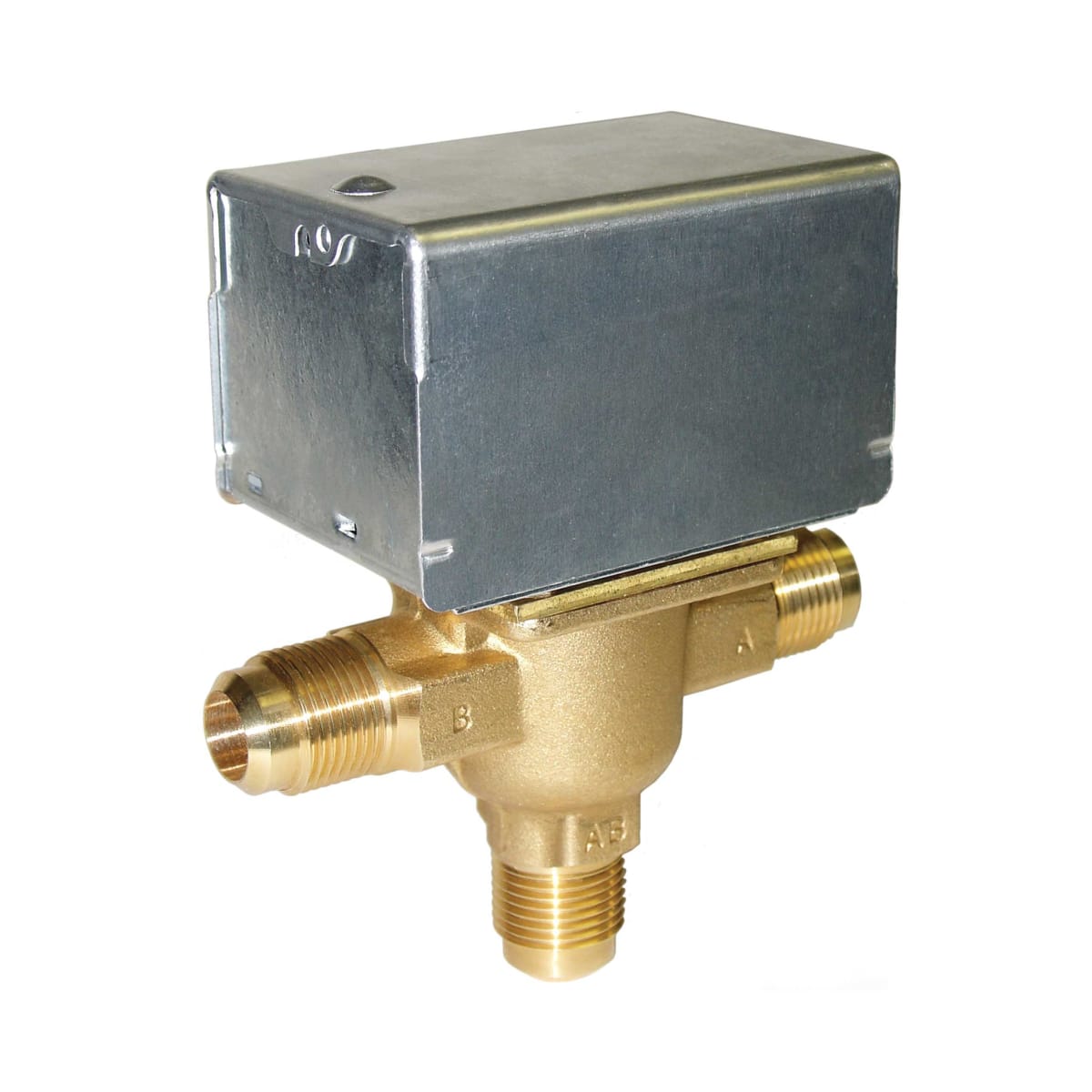

Resideo V8044A1002/U 24 Vac 1/2 in Flare NC QuickFit Zone Valve

Product Description

The Resideo V8044A1002/U is a reliable low voltage valve designed to manage hot water flow efficiently. This valve includes an actuator and valve assembly that helps in controlling the flow of hot water. It is equipped with a manual opener feature which allows for valve operation even during power failures. After power is restored, the valve automatically returns to its set position. The compact design ensures quick and straightforward installation.

• Features a manual opener for operation during power outages; automatically resets when power is restored.
• Can be installed without the need to disassemble the valve.
• Compact design promotes ease of installation and maintenance.

Product Highlights

This valve is suitable for heating and cooling applications, ensuring versatility in various systems.

Product Information

Standard Information

• Brand: Resideo
• Part Number: V8044A1002/U

Technical Specifications

• Connection Type: Flare
• Valve Ball Material: Buna-N (NBR) Rubber
• Includes: Manual Opener
• Application: Hydronic Control, Steam Valve
• Approvals and Standards: UL Listed: File MH11826
• Warranty: 1 Year
• Operating Relative Humidity Range: 5% to 95% Non-condensing
