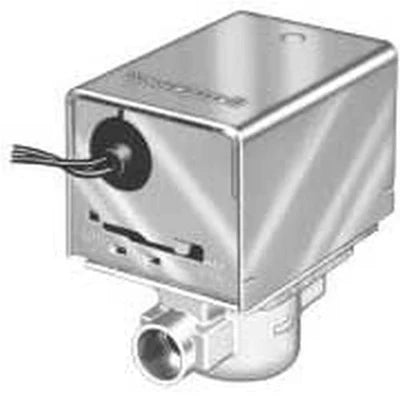

Resideo V8043J1029 Zone Valve 24V 1/2 NPT No Manual Opener for Steam

Product Description

The Resideo V8043J1029 is a 24V, 1/2 inch NPT, normally open steam valve designed for reliable performance in industrial steam applications. This valve, by renowned brand Resideo, ensures high durability and precise steam flow control.

• Robust construction resistant to corrosion.
• Efficient control with 3.5 Cv capacity and 24V rating.
• Compact design for installation in limited spaces.

Product Highlights

This steam valve operates efficiently under low voltage, which makes it suitable for various steam applications including sterilization and humidification processes. It offers a straightforward design that facilitates easy installation without disassembly.

Product Information

Standard Information

• Connection Type: 1/2 inch NPT.
• Voltage: 24V.
• Operation: Normally open.

Technical Specifications

• Capacity: 3.5 Cv.
• Maximum Close-off Pressure: 20 psi.
• Fluid Temperature Range: 50 to 240 degrees Fahrenheit.
• Electrical Connections: 18-inch leads.
• Valve Action: Spring return to open.
• Maximum Ambient Temperature: 125 degrees Fahrenheit.
