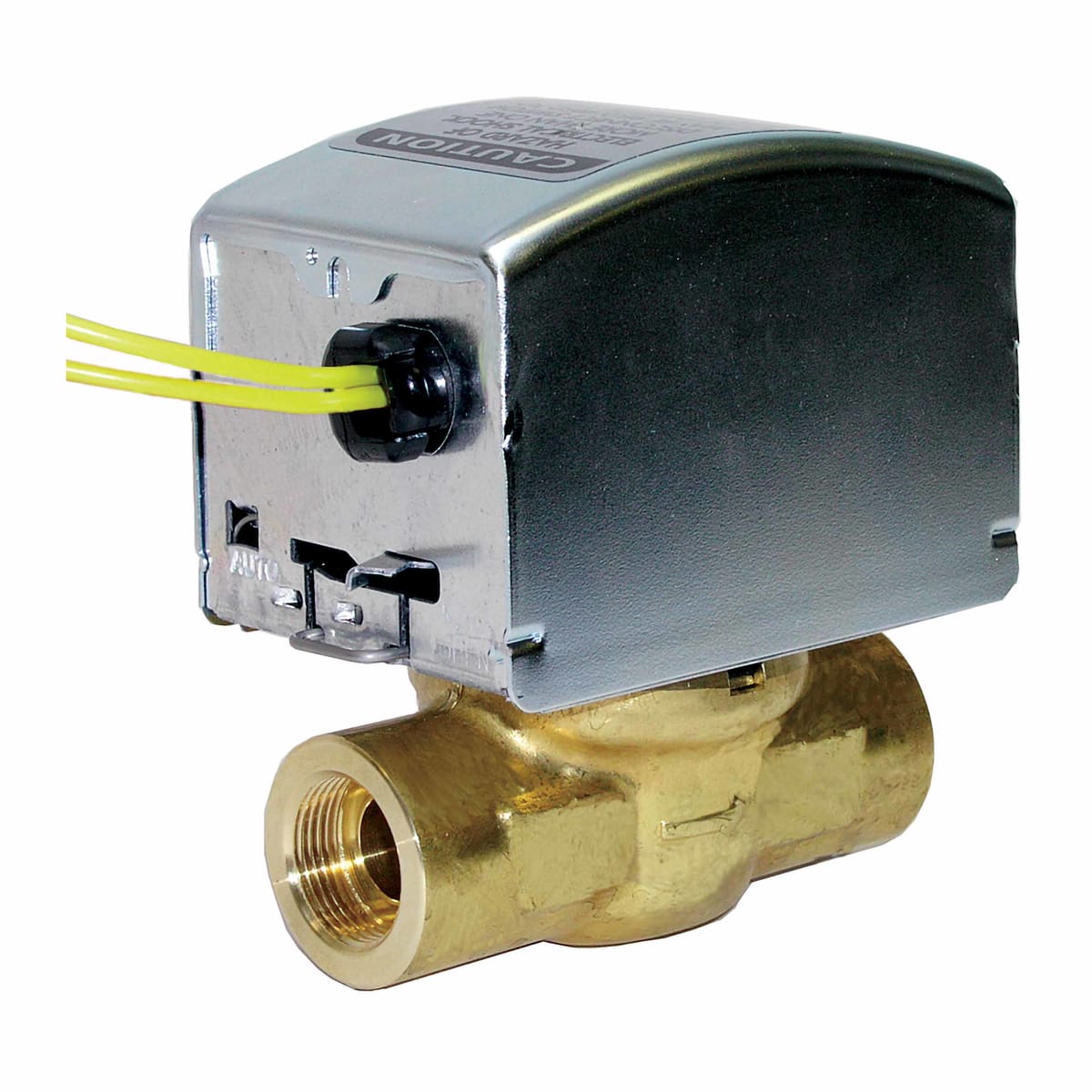

Resideo V8043G5125/U 24 Vac 1/2 In Invert-Flare N.C. Zone Valve

Product Description

Resideo V8043G5125/U is a low voltage zone valve designed for hot water control in hydronic systems. This unit includes an actuator and valve assembly that enables effective regulation of hot water flow. The design allows for installation without disassembling the valve, providing ease of maintenance. The actuator motor can be replaced without system drainage or valve body removal.

• Includes a manual opener for manual operation
• Compatible with various heating and cooling systems
• Constructed with durable Buna-N rubber valve ball

Product Highlights

This zone valve is ideal for controlling the flow of hot water and is designed for seamless integration into hydronic control systems.

Product Information

Standard Information

• Brand: Resideo
• Part Number: V8043G5125/U

Technical Specifications

• Series: 5000 Series
• Color: Brass
• Connection Type: Flare
• Application: Hydronic Control
• Compatible With: Heating and cooling systems
• Valve Ball Material: Buna-N (NBR) Rubber
• Warranty: 1 Year
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
• Approvals and Standards: CSA Certified: File 1322
• Includes: Less Adapters, Manual Opener
