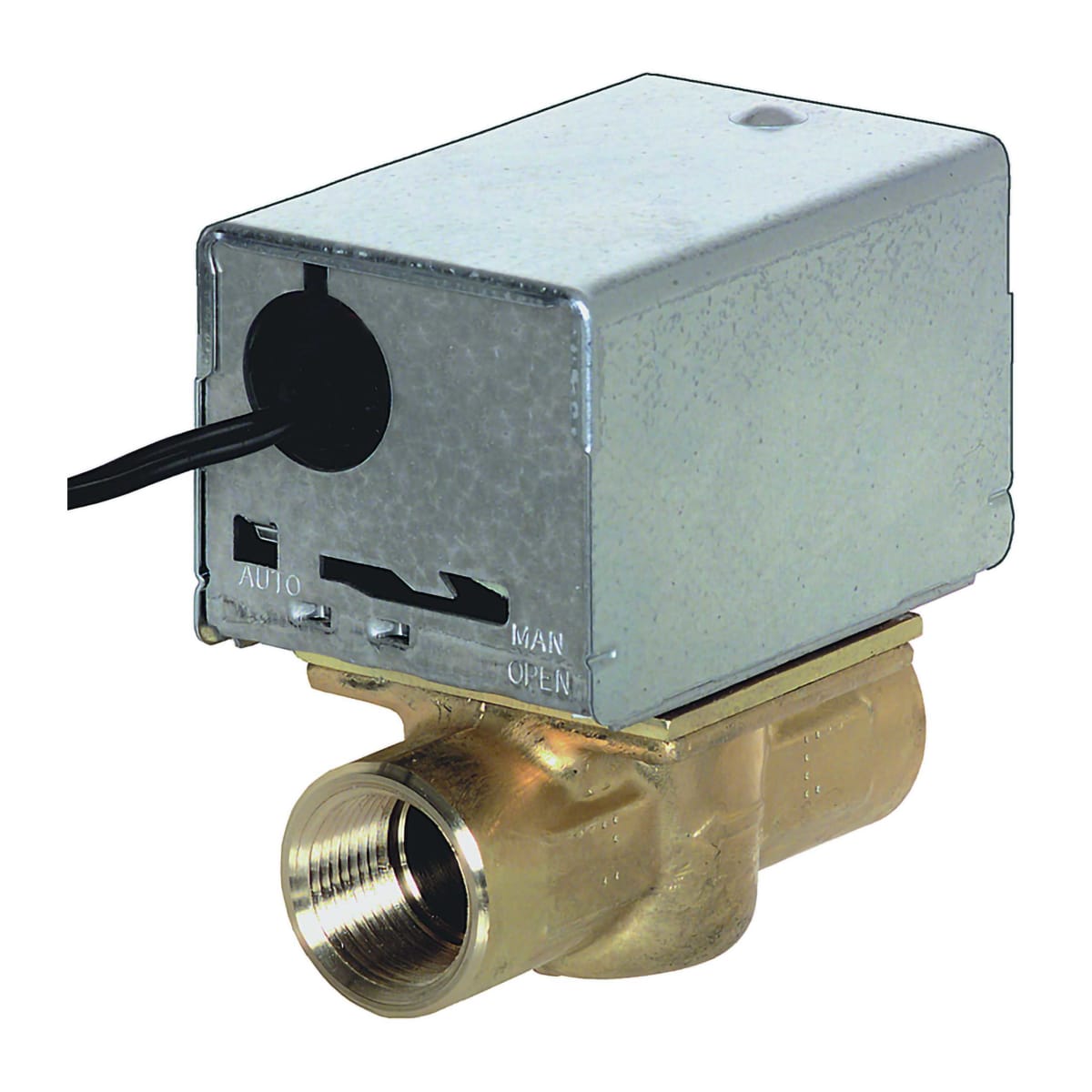

Resideo V8043G3311/U 24 Vac 1/2 In Invert-Flare N.C. Zone Valve

Product Description

The Resideo V8043G3311/U is a 24 Vac 1/2 inch Invert-Flare N.C. Zone Valve designed for hydronic control in heating and cooling systems. This valve consists of an actuator and valve assembly which allows for easy control of the flow of hot water. The complete construction ensures that installation can be performed without disassembling the valve, making maintenance straightforward.

• Includes a manual opener for easy operation.
• Actuator motor can be replaced without draining the system.
• Compatible with various hydronic heating and cooling systems.

Product Highlights

Resideo V8043G3311/U facilitates efficient hot water control with its reliable design.

Product Information

Standard Information

• Brand: Resideo
• Part Number: HONE-V8043G3311/U

Technical Specifications

• Color: Brass
• Connection Type: Flare
• Valve Ball Material: Buna-N (NBR) Rubber
• Includes: Less Adapters, Manual Opener
• Application: Hydronic Control
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
• Approvals and Standards: CSA Certified: File 1322
• Warranty: 1 Year
