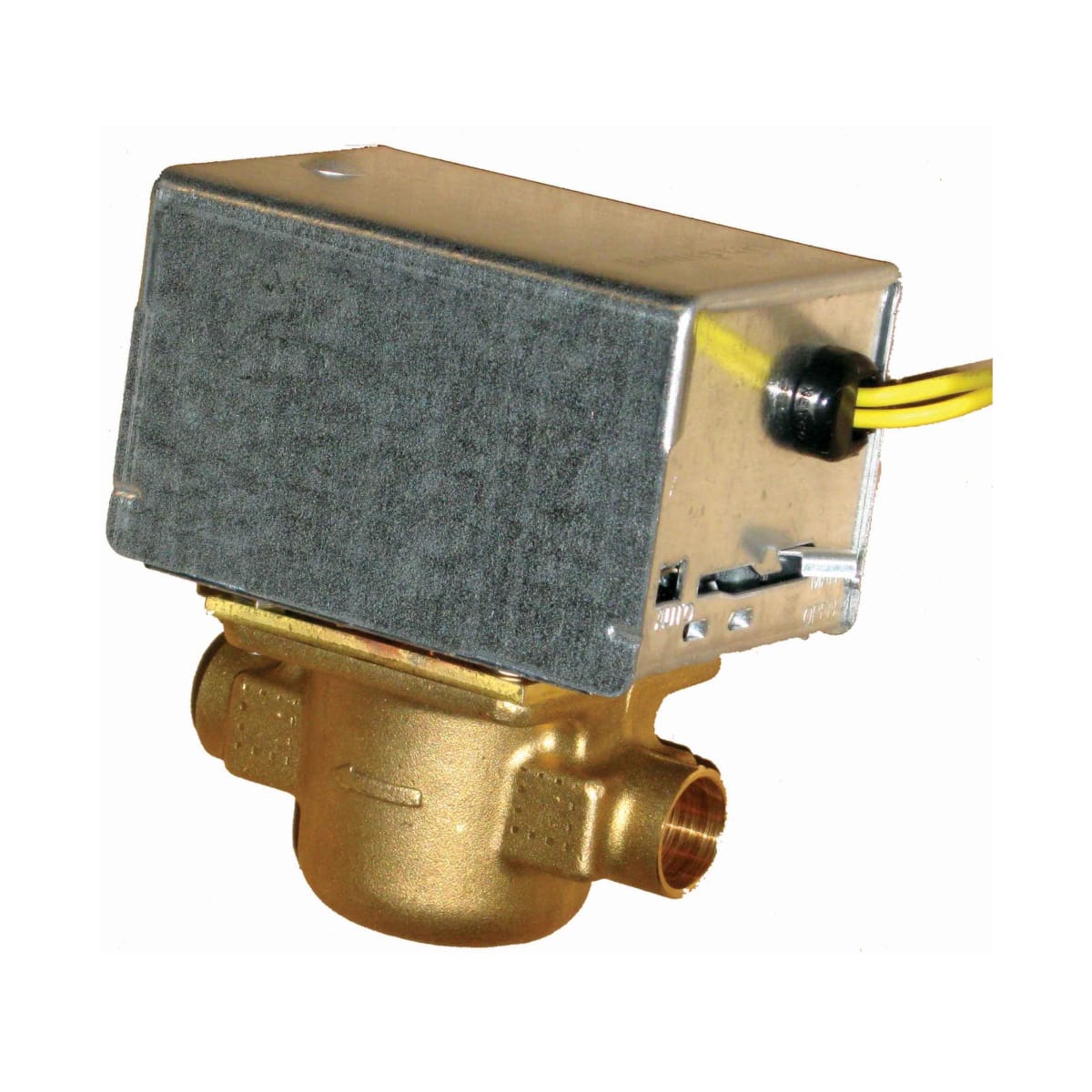

Resideo V8043G1109/U 24 Vac 3/4 in NPT N.C. Zone Valve

Product Description

Resideo's V8043G1109/U is a 24 Vac 3/4 inch NPT normally closed zone valve designed for hot water control. This valve is a two-way on-off low voltage zone valve that effectively manages the flow of hot water within hydronic heating systems. Installation is straightforward, as the actuator and valve assembly allow for mounting without disassembly. Furthermore, the actuator motor can be replaced without the need to drain the system.

• Includes a manual opener for easy operation.
• Constructed from durable brass material.
• Compatible with various heating and cooling systems.

Product Highlights

This valve is ideal for hydronic applications requiring reliable temperature control.

Product Information

Standard Information

• Brand: Resideo
• MPN: V8043G1109/U

Technical Specifications

• Includes: Manual opener
• Application: Hydronic control
• Connection Type: MIP
• Valve Ball Material: Buna-N (NBR) Rubber
• Approvals and Standards: CSA Certified: File 1322
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
• Warranty: 1 Year
