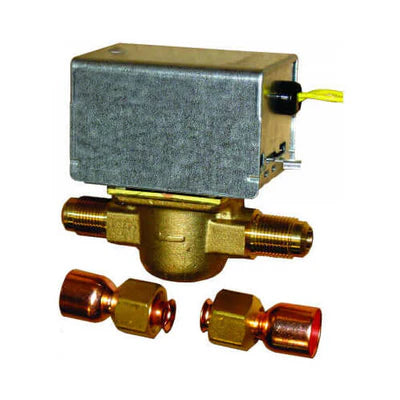

Resideo V8043G1034 24V 3/8 inch Flare N.C. Zone Valve

Product Description

The Resideo V8043G1034 is a high-quality 24V 3/8 inch flare normally closed zone valve designed for hydronic heating systems. This valve is essential for controlling the flow of hot water, ensuring a constant temperature in your heating environment.

• Manual opener for valve control during power failures
• Valve body can be installed without disassembling or draining the system
• Constructed with durable brass and stainless steel components

Product Highlights

The V8043G1034 is known for its rugged construction and ease of maintenance. The actuator motor and powerhead can be replaced independently without disturbing the plumbing. Its compact design allows for easy installation even in constrained spaces.

Product Information

Standard Information

• Type: 2-Way
• Body Pattern: Straight-through

Technical Specifications

• Connection Type: Flare
• Pipe Size: 3/8 inch
• Maximum Close-off Pressure: 20 psi
• Fluid Temperature Range: 50°F to 200°F
• Electrical Connections: 18 inch leads
• Power Consumption: 7.7 VA
• Valve Action: Spring return to close
• Frequency: 50/60 Hz
