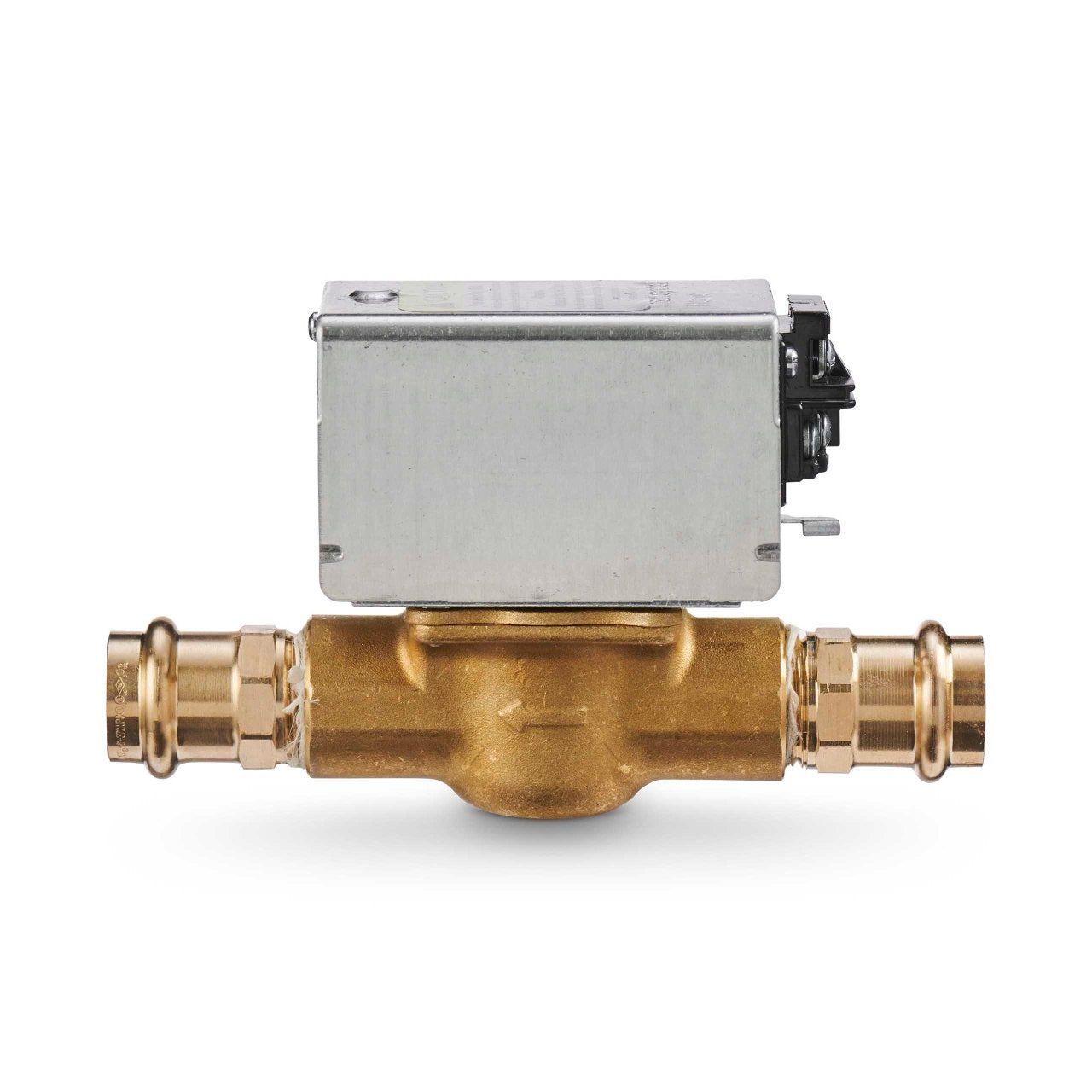

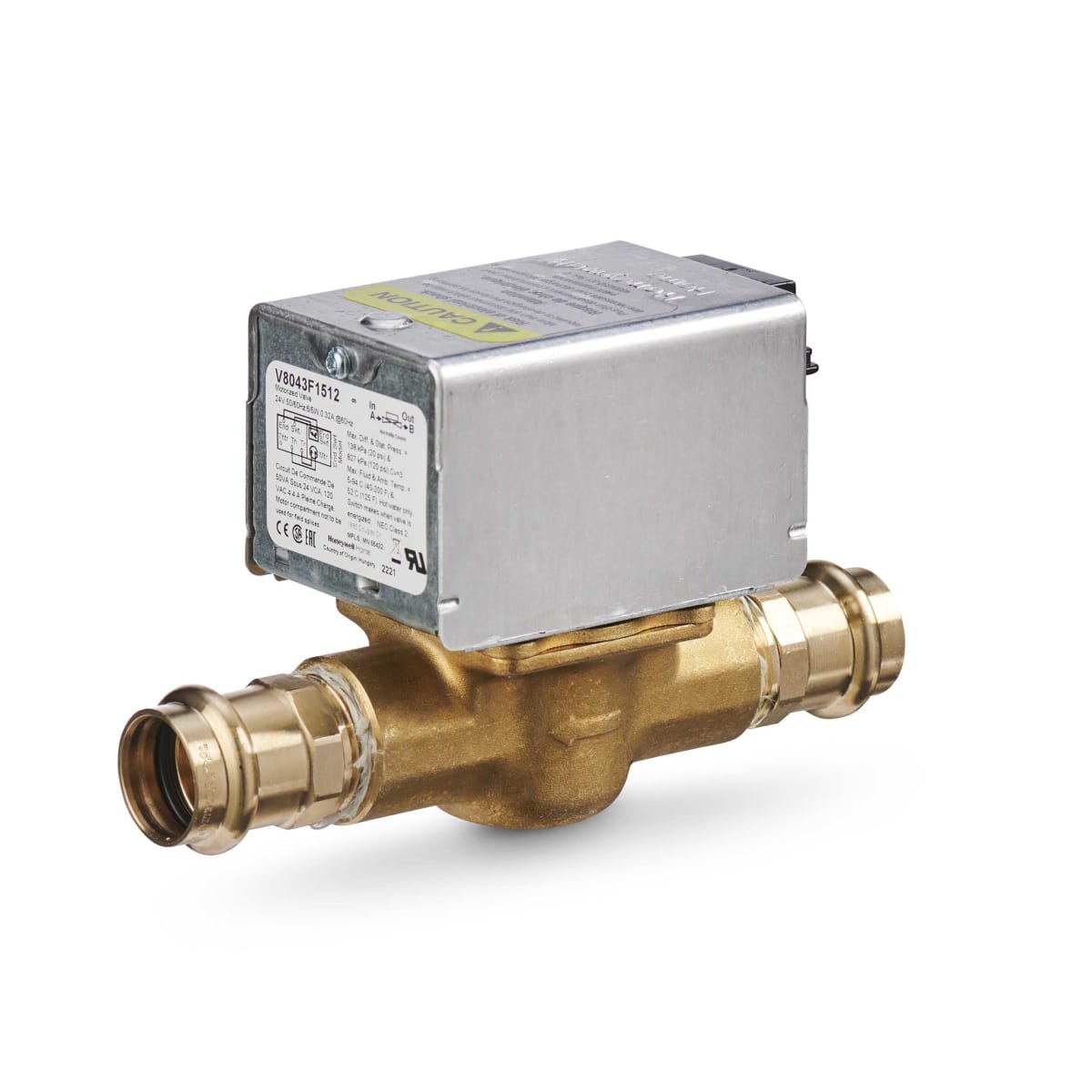

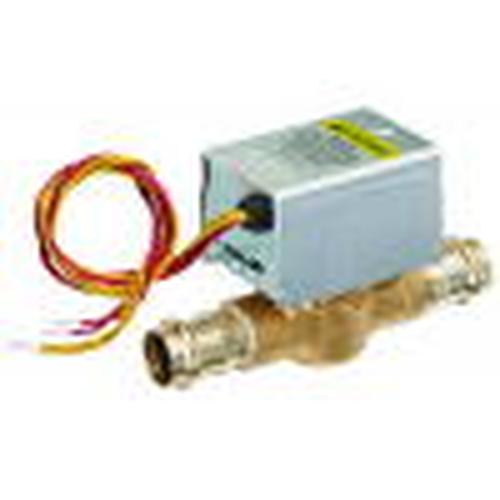

Resideo V8043F1513/U 24 Vac 1 In Pro Press Zone Valve With Terminal Block Connections And End Switch

Product Description

The RESIDEO V8043F1513/U zone valve is an actuator and valve assembly designed for controlling the flow of hot water in hydronic heating and cooling systems. This 2-way on-off low voltage valve features a manual opener for operation during power failure, returning to its automatic position once power is restored. It has a 1-inch ProPress x ProPress connection and a brass body, suitable for hot water applications with a fluid temperature range of 40 to 200 degrees F. It operates on 24 Volt AC power.

• Manual opener for valve operation during power failure, with automatic return upon power restoration.
• Quick and simple installation due to compact construction, requiring no valve disassembly.
• Designed for hydronic control applications in heating and cooling systems.

Product Highlights

Efficient 2-way on-off zone valve for hydronic control with power failure override.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: V8043F1513/U

Technical Specifications

• Application: Hydronic Control
• Compatible Systems: Heating and cooling systems
• Connection Type: ProPress x ProPress
• Power Loss Action: Valve Closed
• Valve Ball Material: Buna-N (NBR) Rubber
• Certifications: UL Listed (File MH11826), CSA Certified (File 1322)
• Operating Humidity Max: 95% Non-condensing
• Operating Humidity Min: 5% Non-condensing
• Product Type: Zone Valve
• Category: Electric Actuator Valve Assemblies
• Body Material: Brass
• Product Category: Control Valves & Actuators
• Product Subcategory: Non-Spring Return Valve Assemblies
• Brand Series: Honeywell
• Nominal Size: 1 Inch x 1 Inch
• Valve Trim Material: Brass Seat, Stainless Steel Stem, EPDM Rubber Ball
• Actuation Type: 2-Position, Spring Return to Close
• Included Features: End switch enclosure, Manual Opener
• Input Power: 24 Volt AC 50/60 Hertz 0.32 Amp 7.7 Volt Amp
• Media Handled: Hot Water
• Pressure Rating: 20 PSI (Differential Close-Off), 120 PSI (Static)
• Model Series: V8043
• Fluid Temperature Range: 40 to 200 Deg F
• Valve Position: NC
• Valve Timing: 15 Second (NO)
