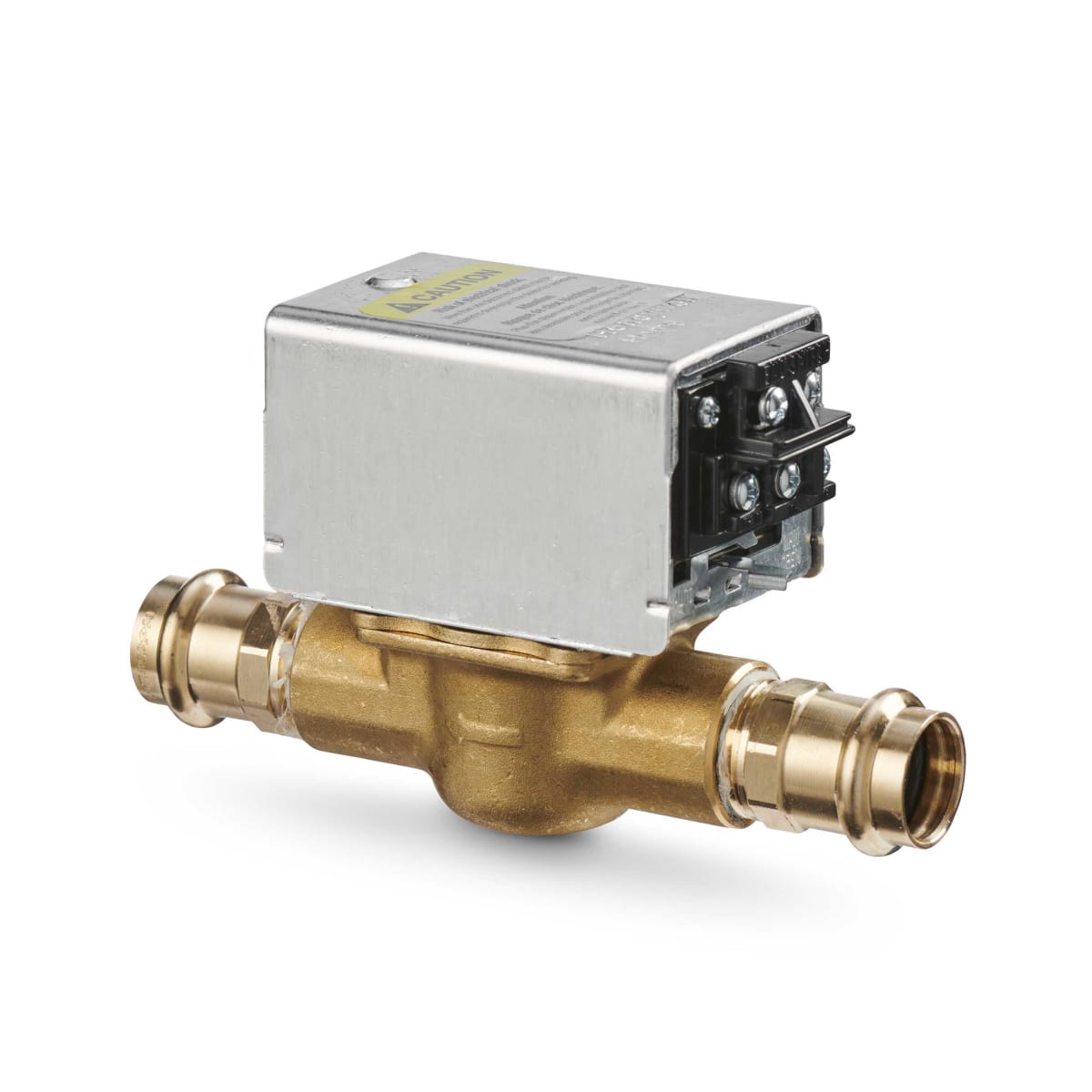

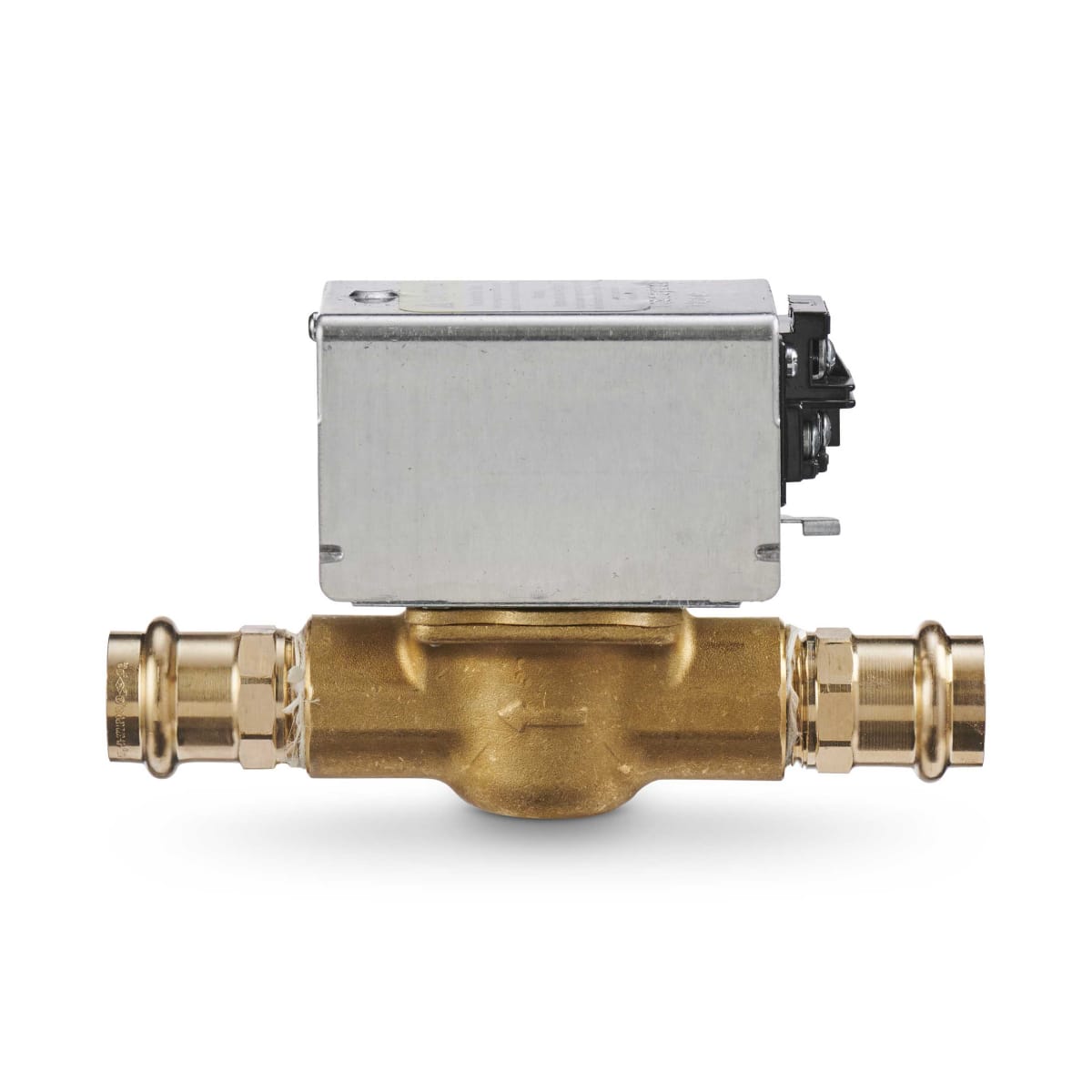

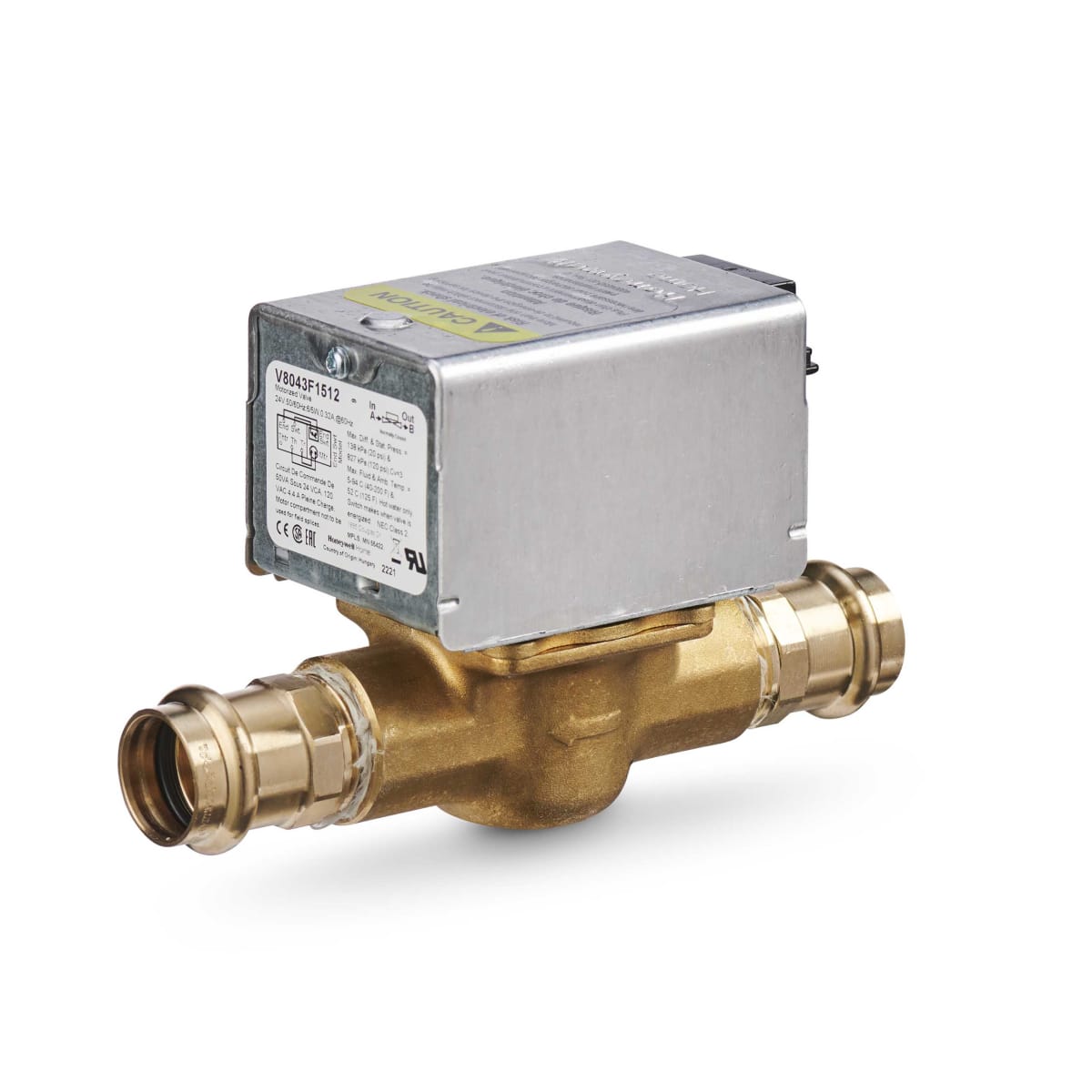

Resideo V8043F1513/U 24 Vac 1 in Pro Press Zone Valve with Terminal Block Connections and end switch

Product Description

Resideo V8043F1513/U is a zone valve designed for hydronic heating systems. This zone valve controls the flow of hot water and includes a terminal block for easy connections. A manual opener allows for operation during power failures, reverting to automatic once power is restored. Installation is straightforward due to its compact design, eliminating the need for disassembly.

• Includes an end switch enclosure.
• Manual opener for emergency situations.
• Compatible with heating and cooling systems.

Product Highlights

Efficiently manage water flow in hydronic systems while ensuring quick installation and reliable operation.

Product Information

Standard Information

• Application: Hydronic Control
• Brand: Resideo

Technical Specifications

• MPN: V8043F1513/U
• Connection Type: Press
• Power Loss Action: Valve Closed
• Valve Ball Material: Buna-N (NBR) Rubber
• Operating Relative Humidity: 5% to 95% Non-condensing
• Warranty: 1 Year
• Approvals and Standards: UL Listed: File MH11826, CSA Certified: File 1322
• Compatible With: Heating and cooling systems
