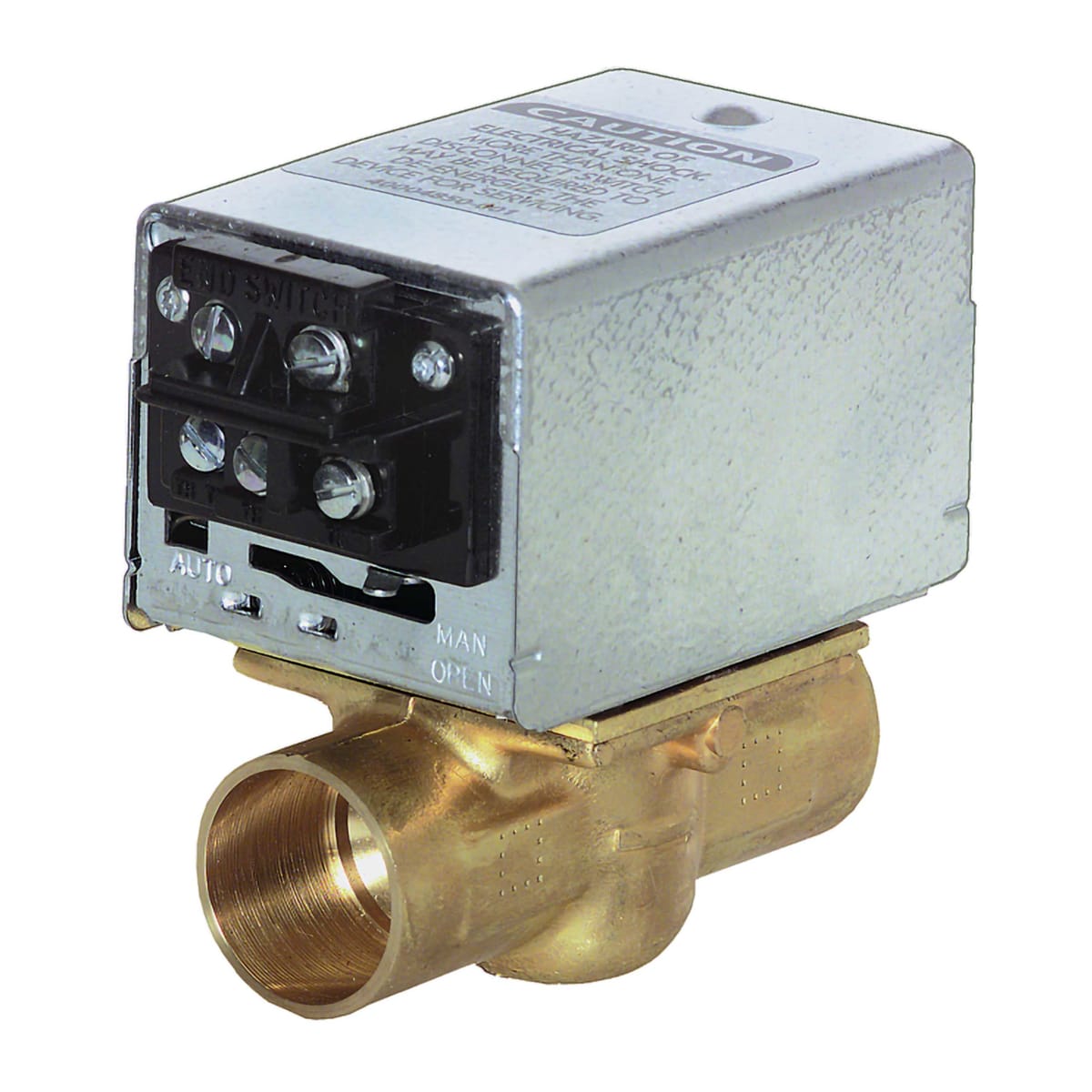

Resideo V8043F1135/U 24 Vac 3/4 in Sweat N.C. Zone Valve

Product Description

Resideo offers the V8043F1135/U, a reliable 24 Vac three-quarter inch sweat normally closed zone valve designed for hydronic heating control. This valve consists of an actuator and valve assembly and is ideal for managing hot water flow. It includes a manual opener for operation during power failures, automatically returning to its normal position when power is restored. Its compact design allows for quick and easy installation without needing to disassemble the valve.

• Includes manual opener for power outages
• Compact construction enables fast installation
• Compatible with various heating and cooling systems

Product Highlights

The V8043F1135/U is essential for efficient hydronic control, ensuring smooth operation in heating applications.

Product Information

Standard Information

• Brand: Resideo
• MPN: V8043F1135/U

Technical Specifications

• Color: Brass, Black
• Includes: End switch enclosure, Manual Opener
• Warranty: 1 Year
• Application: Hydronic Control
• Compatible With: Heating and cooling systems
• Connection Type: Sweat
• Power Loss Action: Valve Closed
• Valve Ball Material: Buna-N Rubber
• Approvals and Standards: UL Recognized, CSA Certified
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
