Resideo V8043F1101/U 24 Vac 1 in Sweat N.C. Zone Valve

Product Description

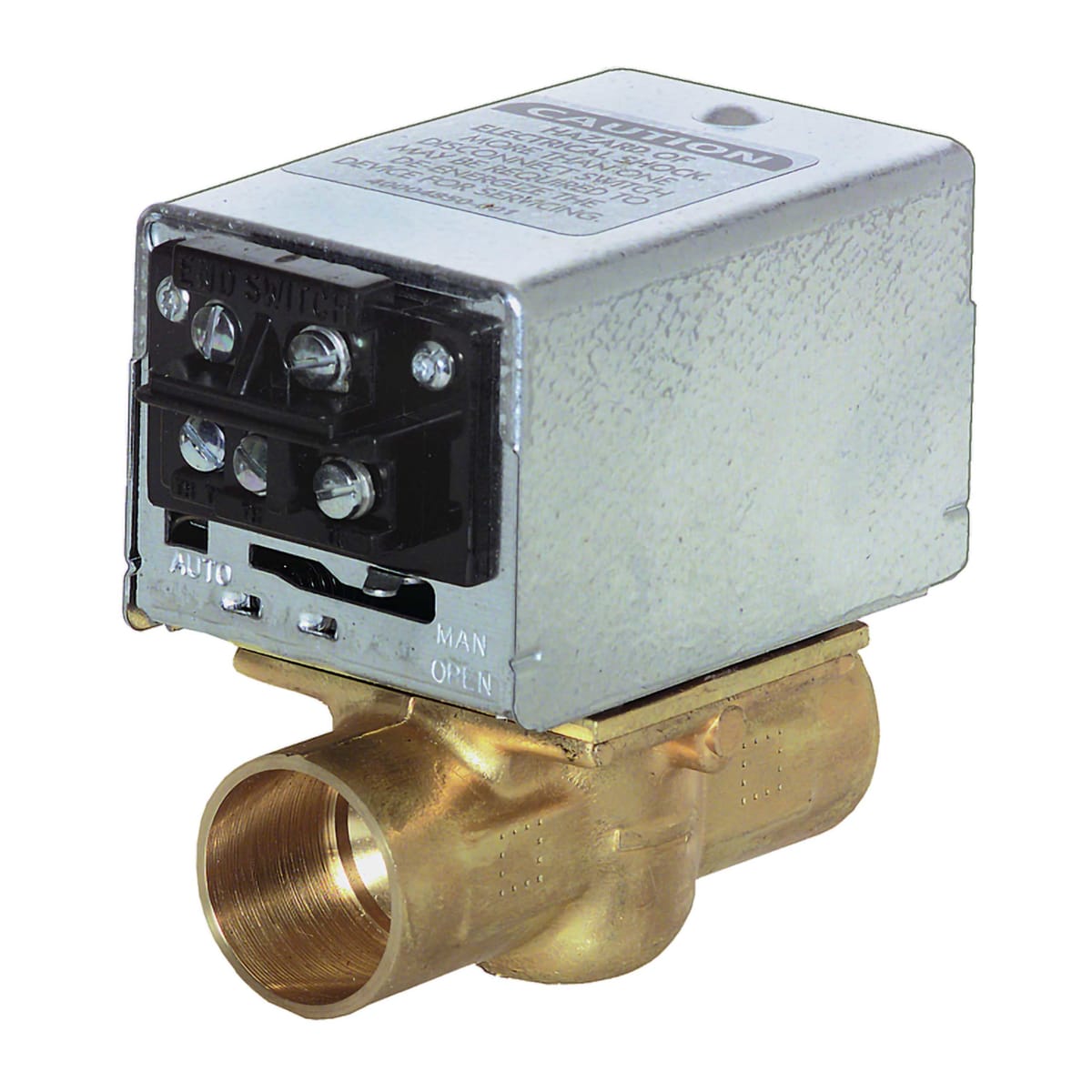

The Resideo V8043F1101/U is a zone valve designed for hot water control. It includes an actuator and valve assembly, providing reliable operation in hydronic control applications.

• Manual opener allows for valve operation during power loss.
• Simple installation with no disassembly required.
• Compact construction suitable for tight spaces.

Product Highlights

This zone valve is compatible with heating and cooling systems, ensuring efficient control of hot water flow.

Product Information

Standard Information

• Brand: Resideo
• MPN: V8043F1101/U

Technical Specifications

• Connection Type: Sweat
• Application: Hydronic Control
• Power Loss Action: Valve Closed
• Includes: End switch enclosure, Manual Opener
• Valve Ball Material: Buna-N (NBR) Rubber
• Warranty: 1 Year
• Approvals and Standards: UL Recognized: File MH11826
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
