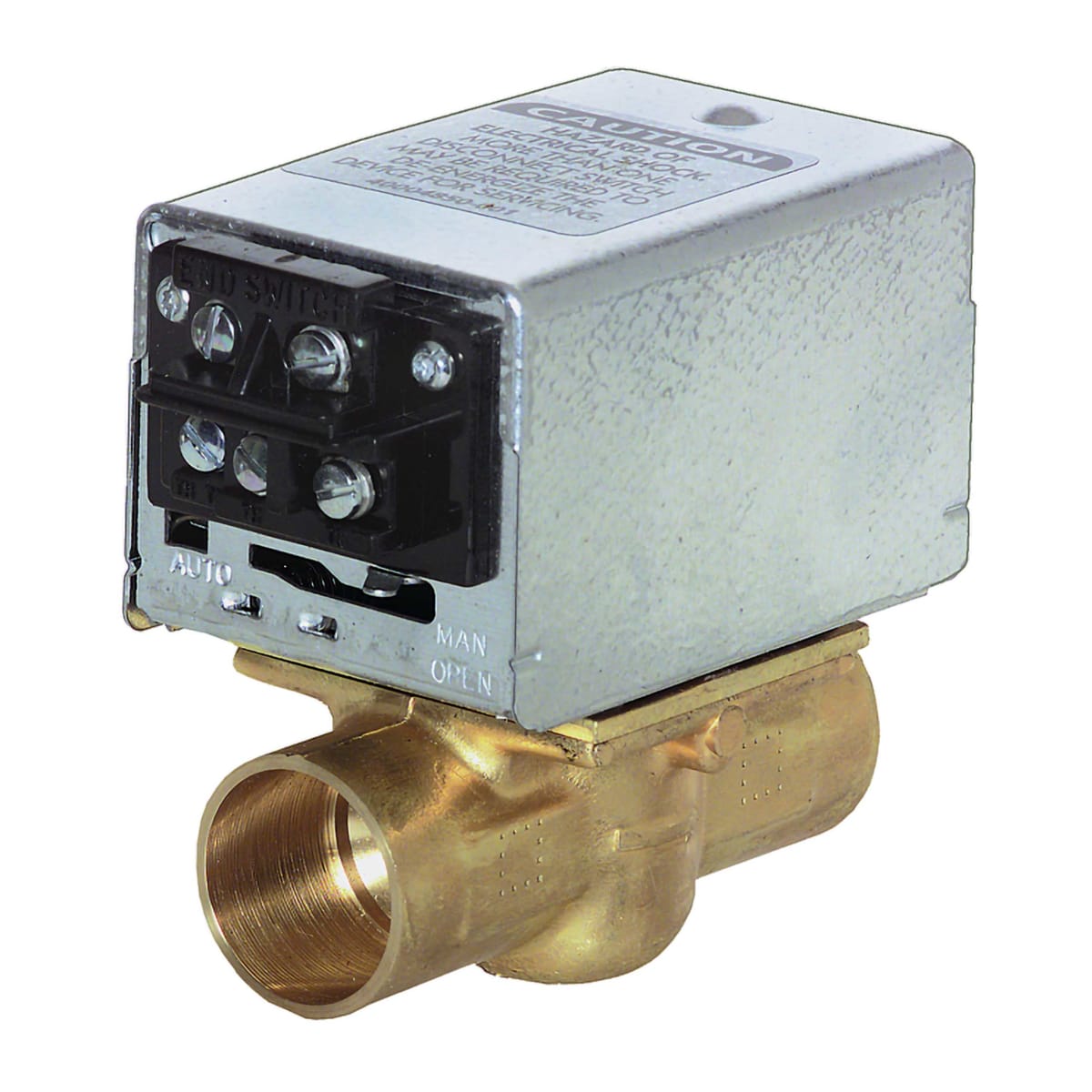

Resideo V8043F1093/U 24 Vac 3/4 in Sweat N.C. Zone Valve

Product Description

The Resideo V8043F1093/U is a reliable zone valve used to control the flow of hot water in heating systems. It features an actuator and valve assembly, ensuring effective water regulation. This model has a manual opener, allowing for valve operation even during power outages, and will return to its automatic setting once power is restored. The compact design facilitates straightforward installation, with no disassembly required.

• Manual opener for emergency operation
• Compact construction for easy installation
• Compatible with heating and cooling systems

Product Highlights

Product Information

Standard Information

• Brand: Resideo
• MPN: V8043F1093/U

Technical Specifications

• Color: Brass, Black
• Includes: End switch enclosure, Manual opener
• Warranty: 1 Year
• Application: Hydronic control
• Compatible With: Heating and cooling systems
• Connection Type: Sweat
• Power Loss Action: Valve Closed
• Valve Ball Material: Buna-N (NBR) Rubber
• Approvals and Standards: UL Recognized: File MH11826
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
