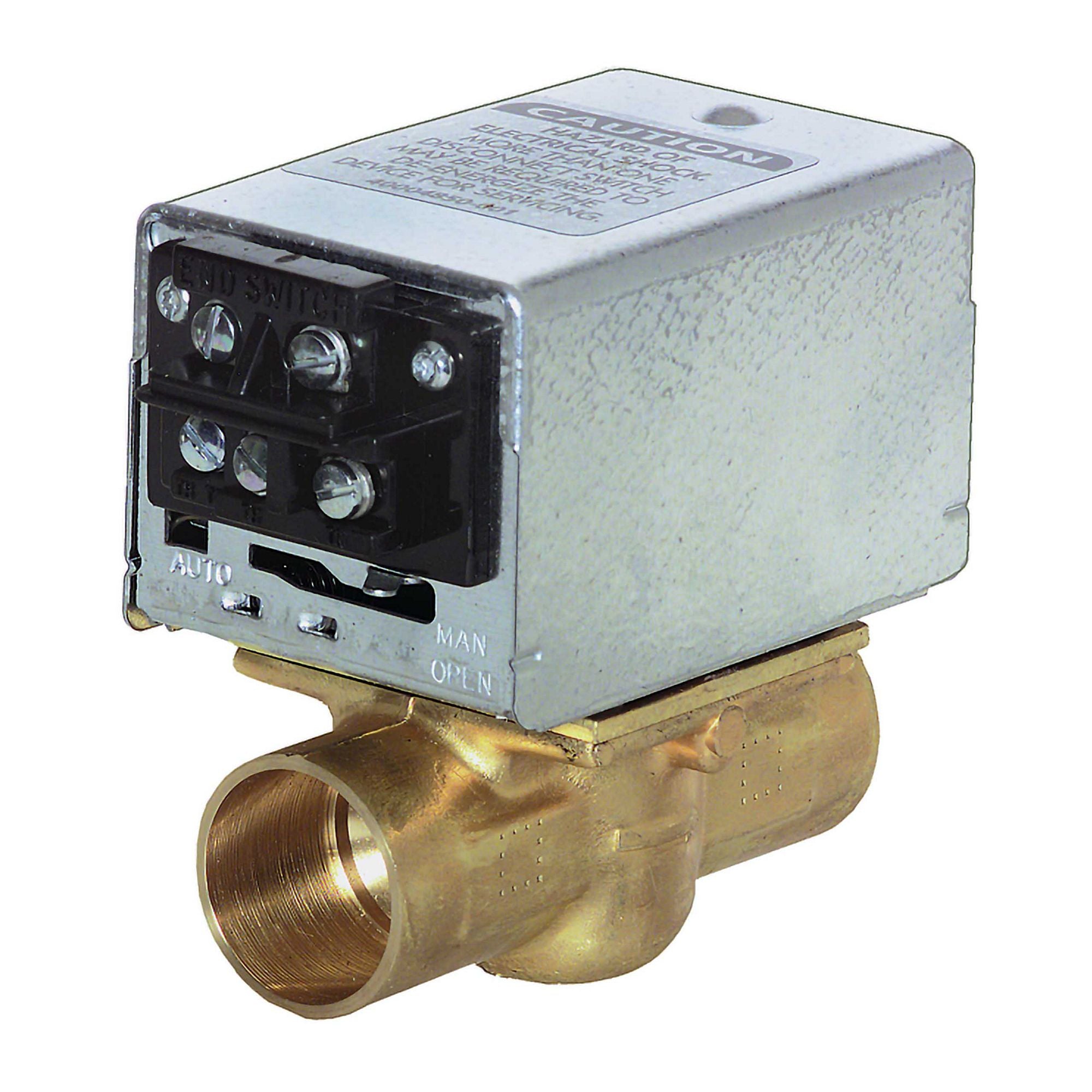

Resideo V8043F1036/U 24 Vac 3/4 in Sweat N.C. Zone Valve

Product Description

The Resideo V8043F1036/U is a zone valve designed for controlling hot water flow in heating systems. This valve operates with a twenty-four volt power supply and features a three-quarter inch sweat connection. It includes a manual opener for functionality during power outages and automatically returns to its original position once power is restored.

• Compact design for easy installation
• Can operate in both heating and cooling systems
• Manual opener feature for power failure situations

Product Highlights

This valve is suitable for hydronic control in various heating applications and simplifies installation, requiring no disassembly. Its compact size allows integration into tight spaces. The valve is reliable and effective for energy-efficient system control.

Product Information

Standard Information

• Part Number: V8043F1036/U
• Brand: Resideo

Technical Specifications

• Power Requirements: 24 Vac
• Connection Type: Sweat
• Temperature Range: 40°F to 200°F
• Zone Capability: 1 Zone
• Weight: 2.05 lbs
• Dimensions: 4 inches (Height) x 2.38 inches (Length) x 3.69 inches (Width)
• Operating Humidity: 5% to 95% Non-condensing
• Material: Buna-N (NBR) Rubber
• Warranty: 1 Year
