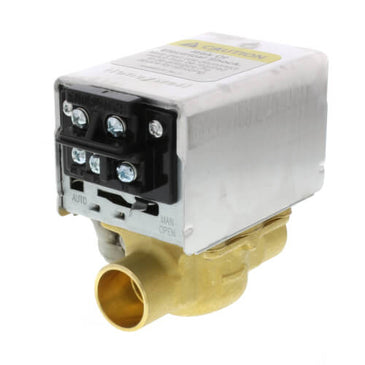

Resideo V8043F1036 | 3/4SWT 24V N/C 3.5CV W/ESWTCH

Product Description

The Resideo V8043F1036 is a 3/4 inch Normally Closed proportional temperature control valve. This valve operates at 24 volts and has a flow capacity of 3.5 Cv. It is suitable for hydronic heating and cooling systems, allowing precise control over water flow.

• Compatible with a variety of hydronic systems
• Integrated electronic switch allows for remote operation
• Durable construction for reliable performance

Product Highlights

Use the V8043F1036 for effective temperature control in heating applications. Its compact design makes installation easier, and the ability to replace actuator motors without disrupting connections is a key feature.

Product Information

Standard Information

• Brand: Resideo
• MPN: V8043F1036

Technical Specifications

• Voltage: 24V
• Flow Capacity: 3.5 Cv
• Body Pattern: Straight-Through, 2-Way
• Connection Type: Sweat
• Maximum Pressure: 125 PSI
• Minimum Temperature: 50°F
• Maximum Temperature: 200°F
• Weight: 1.85 lbs
