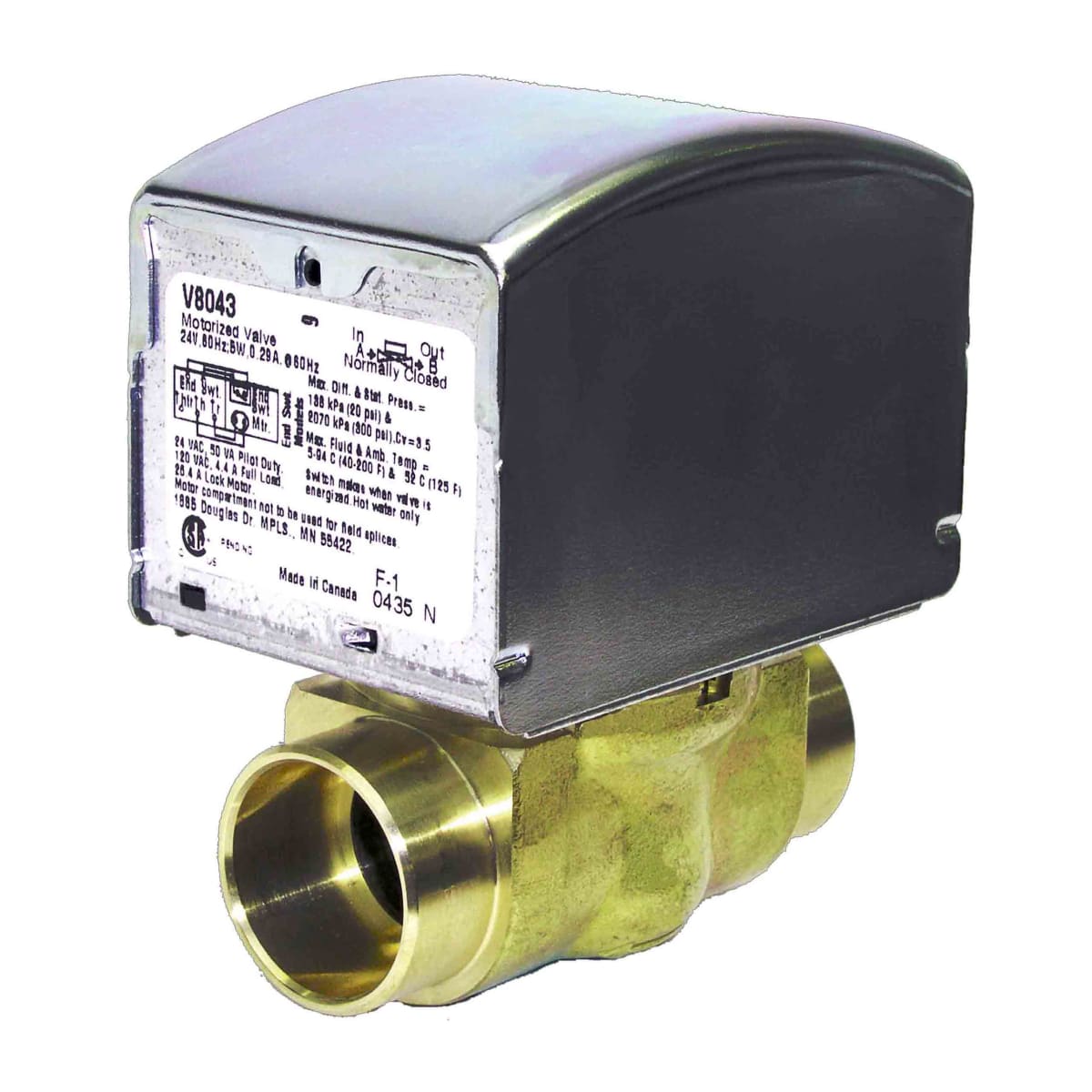

Resideo V8043E5020/U 24 Vac 1 in Sweat N.C. QuickFit Zone Valve

Product Description

Resideo's V8043E5020/U is a 24 Volt AC normally closed zone valve designed for hydronic systems. This valve regulates the flow of hot water through a heat exchanger and supports an operating pressure of up to three hundred psi. The unit integrates a motorized actuator with a QuickFit powerhead, allowing for easy removal and servicing.

• Operates at up to 300 psi
• Includes end switch enclosure and manual opener
• Compatible with heating and cooling systems

Product Highlights

This zone valve is ideal for hydronic control applications and features a robust construction using brass material, ensuring longevity and reliability.

Product Information

Standard Information

• Brand: Resideo
• MPN: V8043E5020/U

Technical Specifications

• Application: Hydronic Control
• Connection Type: Sweat
• Power Loss Action: Valve Closed
• Valve Ball Material: Buna-N (NBR) Rubber
• Warranty: 1 Year
• Approvals and Standards: CSA Certified: File 1322
• Operating Relative Humidity Min: 5% Non-condensing
• Operating Relative Humidity Max: 95% Non-condensing
• Includes: End switch enclosure, Manual Opener
