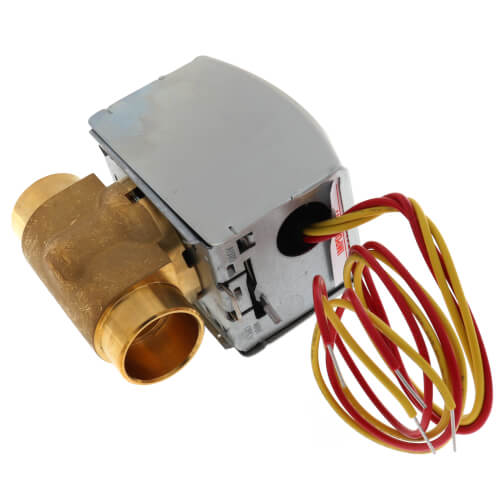

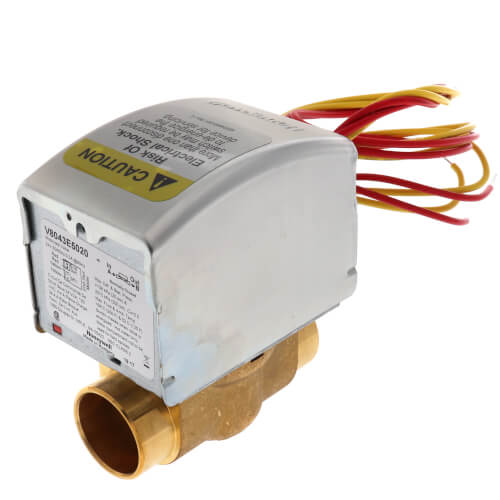

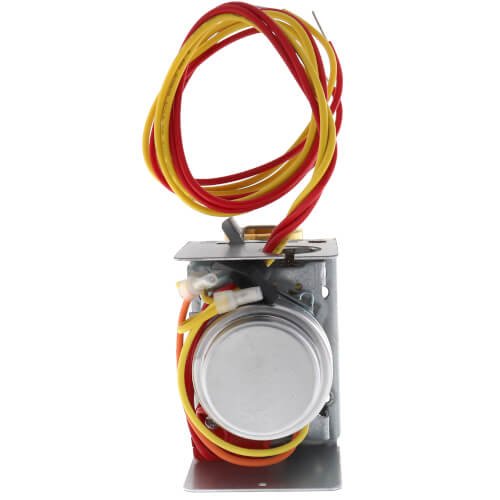

Resideo V8043E5020 1 Sweat Connection Zone Valve, Normally Closed, W/ Manual Opener (24v)

Product Description

The Resideo V8043E5020 is a 1 sweat connection zone valve designed for low voltage heating systems. This valve functions in controlling the flow of hot water effectively. It operates in a normally closed position, allowing for better regulation in hydronic systems.

• Compact construction allows for easy installation.
• Manual opener included for operation during power failure.
• Compatible with series 1000 zone valves for easy replacement.

Product Highlights

This valve is integral for hydronic zoning and enhances system efficiency.

Product Information

Standard Information

• Manufacturer: Resideo
• Model Number: V8043E5020

Technical Specifications

• Voltage: 24v
• Pipe Size: 1 inch
• Capacity: 3.5 Cv
• Fluid Temperature Range: 40°F - 200°F
• Max Ambient Temperature: 125°F
• De-Energized Position: Normally Closed
• Spring Return Action: Yes
• Overall Dimensions: 4-3/8 inches high x 3-1/2 inches wide x 2-3/8 inches deep
