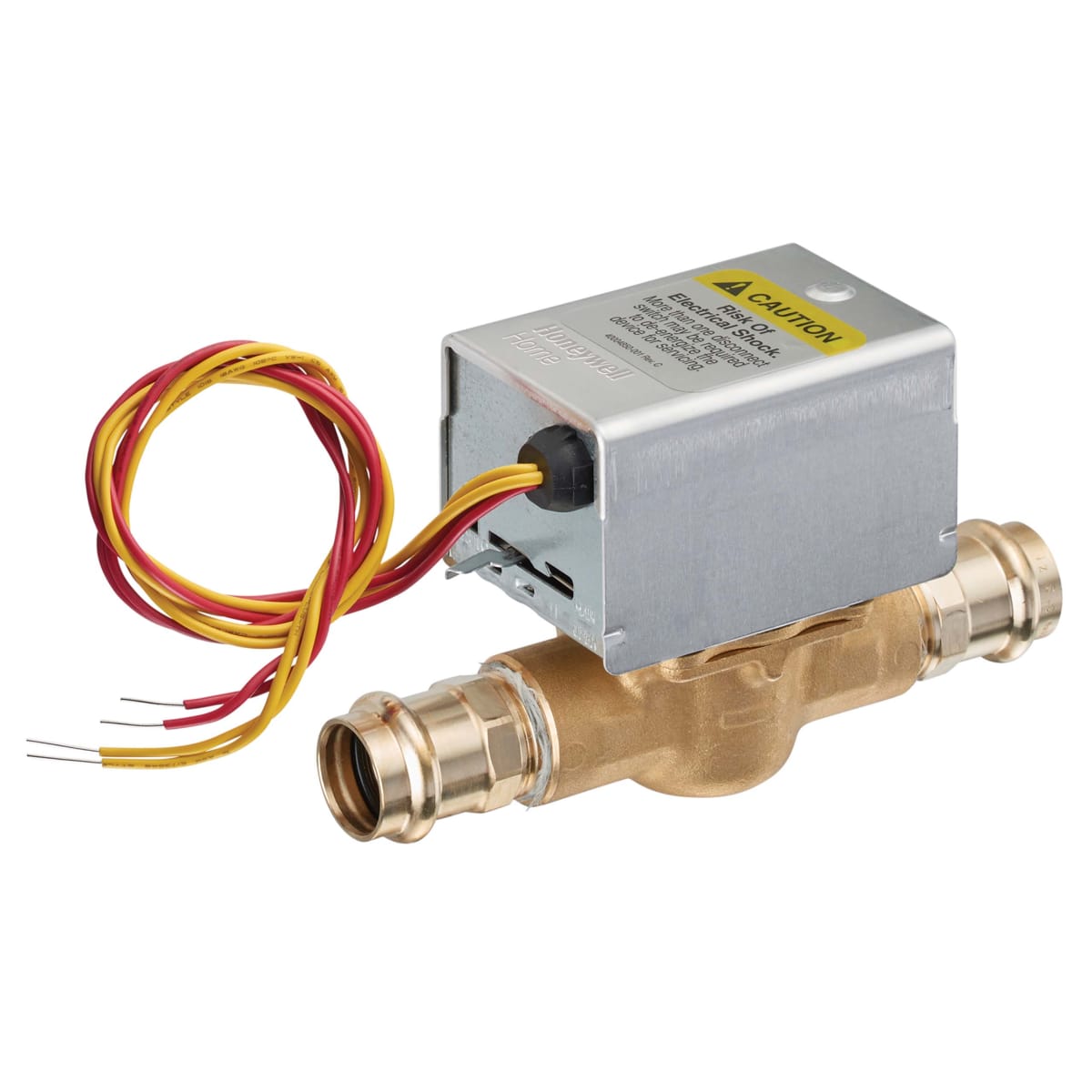

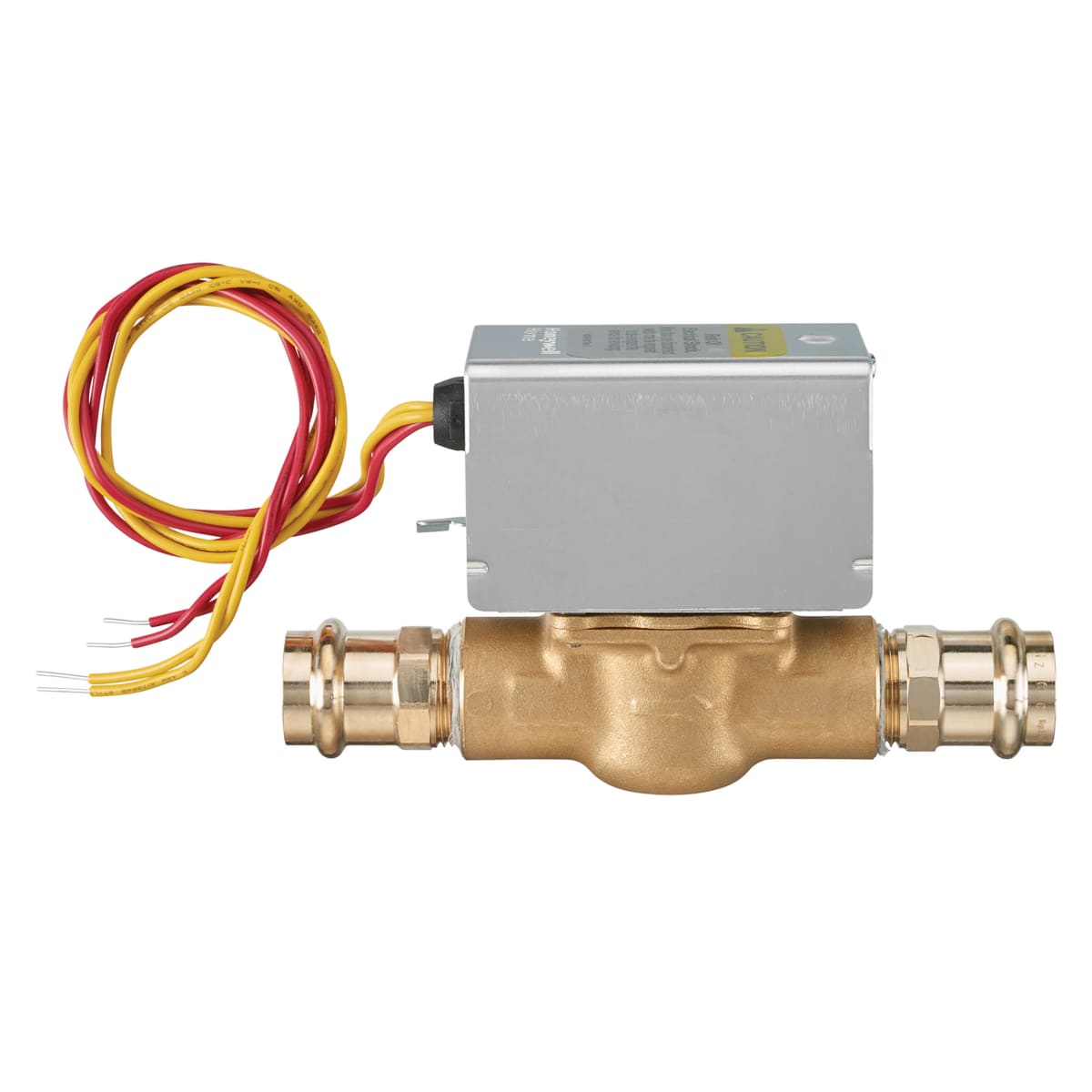

Resideo V8043E1413/U 24 Vac 1 in Pro Press QuickFit Zone Valve with 18 in lead wires and end switch

Product Description

The Resideo V8043E1413/U is a 24 Vac zone valve that provides reliable control for hydronic heating systems. This model features a low voltage, normally closed design ideal for managing the flow of hot water to heat exchangers. The valve operates under a pressure of up to three hundred psi. Installation is straightforward as it does not require valve disassembly.

• Suitable for hydronic control applications
• Compatible with heating and cooling systems
• End switch enclosure included

Product Highlights

This zone valve aids in efficient water control, ensuring the right temperature in your heating systems.

Product Information

Standard Information

• Brand: Resideo
• Part Number: HONE-V8043E1413/U

Technical Specifications

• MPN: V8043E1413/U
• Application: Hydronic Control
• Connection Type: Press
• Power Loss Action: Valve Closed
• Valve Ball Material: Buna-N (NBR) Rubber
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
• Operating Pressure: 300 psi
• Warranty: 1 Year
• Approvals and Standards: UL Listed: File MH11826, CSA Certified: File 1322
• Includes: End switch enclosure, Manual Opener
• Compatible With: Heating and cooling systems
