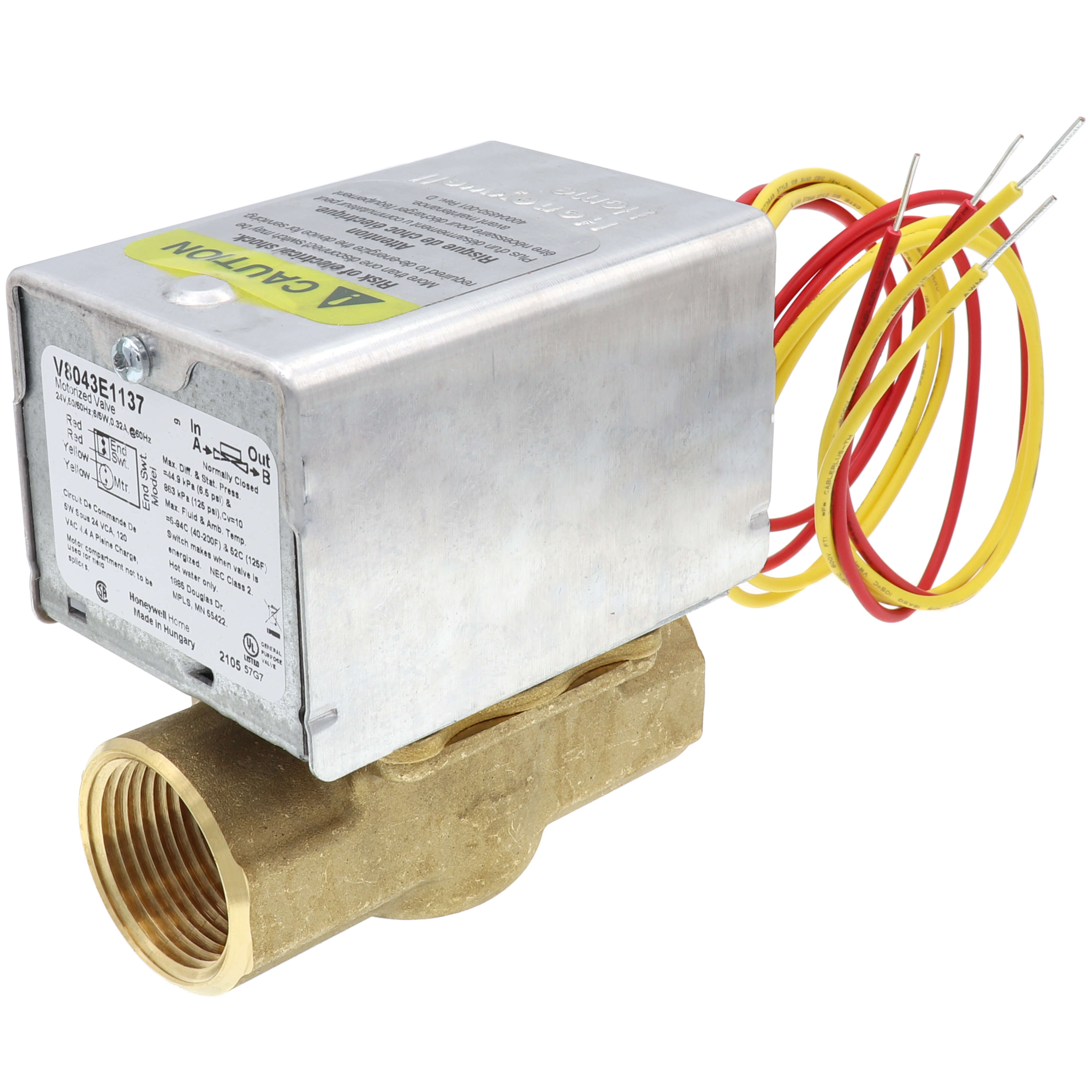

Resideo V8043E1137 1 Inch NPT 24V NC 10CV Zone Valve with End Switch Replacement MPN

Product Description

The Resideo V8043E1137 zone valve is engineered to control the flow of hot water in HVAC systems precisely and efficiently. This valve is ideal for closed loop hydronic systems free from dissolved oxygen.

• Includes a manual opener for valve operation during power failure; returns to automatic position when power is restored.

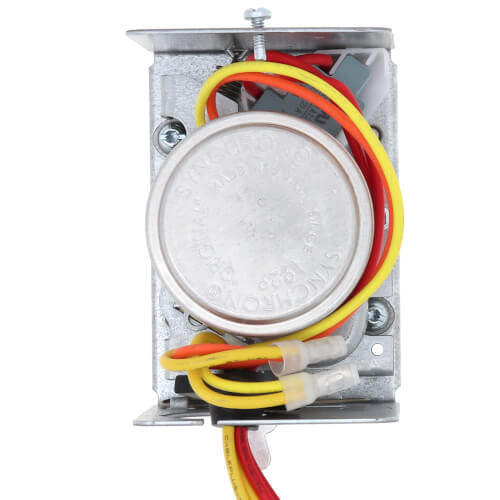

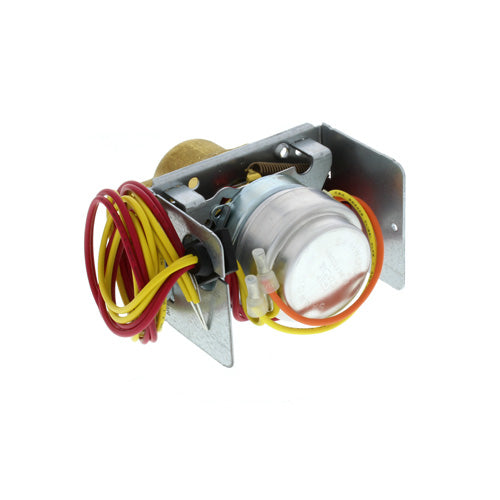

• Quick installation with no need to disassemble the valve; actuator motor can be replaced without removing valve body.
• Features SPST end switch for system monitoring, enhancing workflow efficiency in complex setups.

Product Highlights

Constructed with a durable brass body and a stainless steel stem for longevity. Built-in Buna-N rubber ball ensures a tight seal, managing pressures up to 125 psi effectively.

Product Information

Standard Information

• Connection Type: 1 inch NPT threaded
• Operation Mode: Normally closed

Technical Specifications

• Brand: Resideo
• SKU: V8043E1137
• Voltage: 24V
• Energy Consumption: 7.7 VA
• Static Pressure: 125 psi
• Temperature Range: 50°F - 200°F
• End Switch Capacity: 4.4 A running, 26.4 A inrush at 120 V
