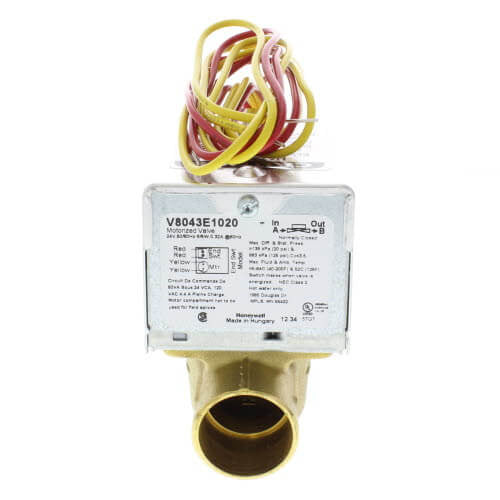

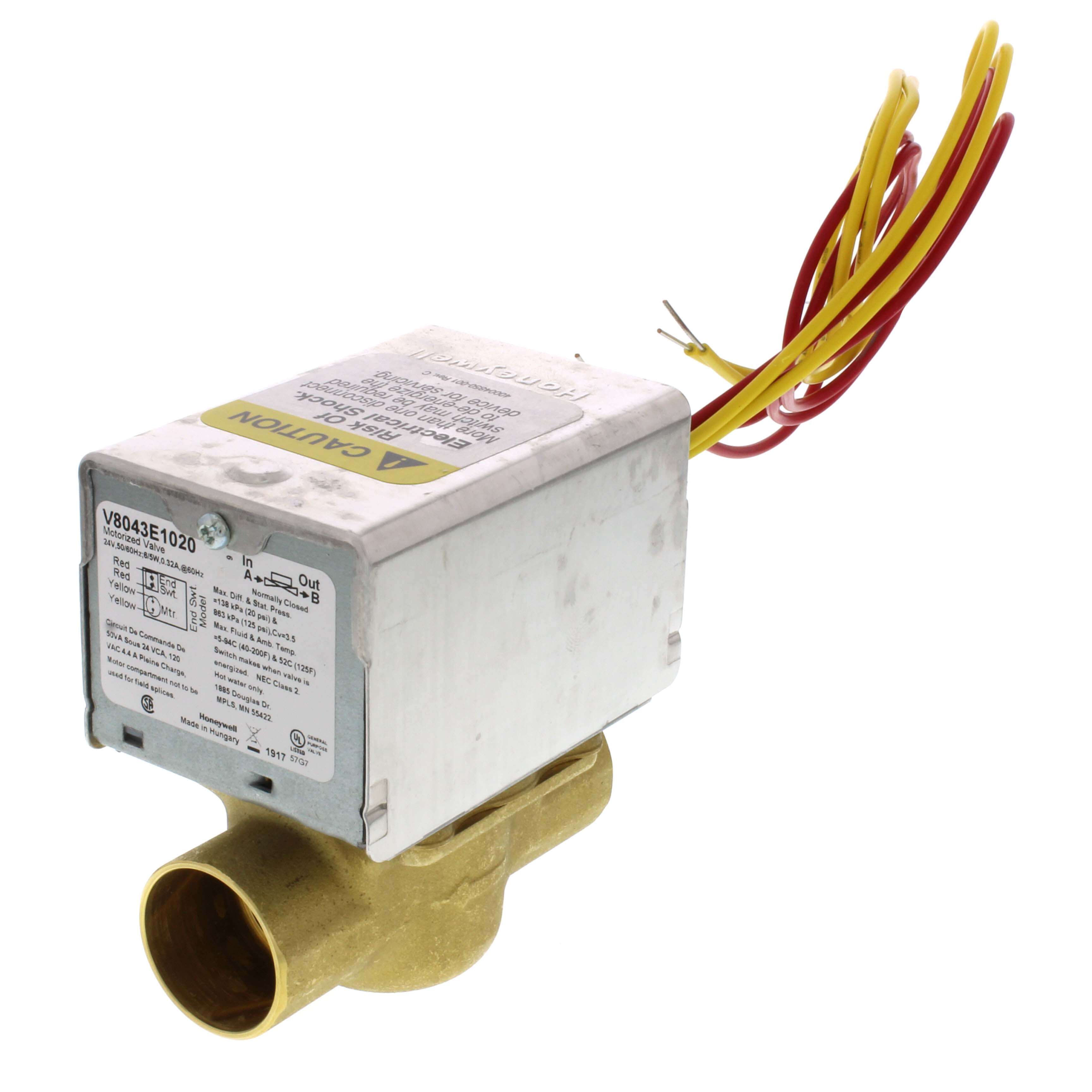

Resideo V8043E1020 1 Inch Sweat Zone Valve 24V N/C 3.5CV with End Switch

Product Description

The Resideo V8043E1020 Honeywell Motorized Zone Valve, expertly designed for robust control of hot water flow within HVAC systems. A premier choice in commercial and industrial settings, this valve offers a blend of reliability, efficiency, and precision. Highlighting a 1-inch sweat connection and operating under a 24V system, its features cater to varied environmental conditions without loss of functionality.

• Effective temperature management from 50°F to 200°F.
• End switch for exceptional control and override possibilities.
• Durable brass construction ensures long-term reliability.

Product Highlights

Constructed to ensure continuous operation in environments as demanding as -40°F to 185°F, ensuring adaptability and resilience. Engineered for easy installation and low maintenance needs, this zone valve exemplifies streamlined operational efficiency.

Product Information

Standard Information

• Brand: Resideo
• MPN: V8043E1020

Technical Specifications

• Size: 1 inch
• Voltage: 24V
• Flow Capacity: 3.5 Cv
• Connection Type: Sweat
• Operation: Normally closed
• Max Pressure: 300 PSI
• Temperature Range: 50°F to 200°F
• Material: Brass
• Weight: 1.98 lbs
