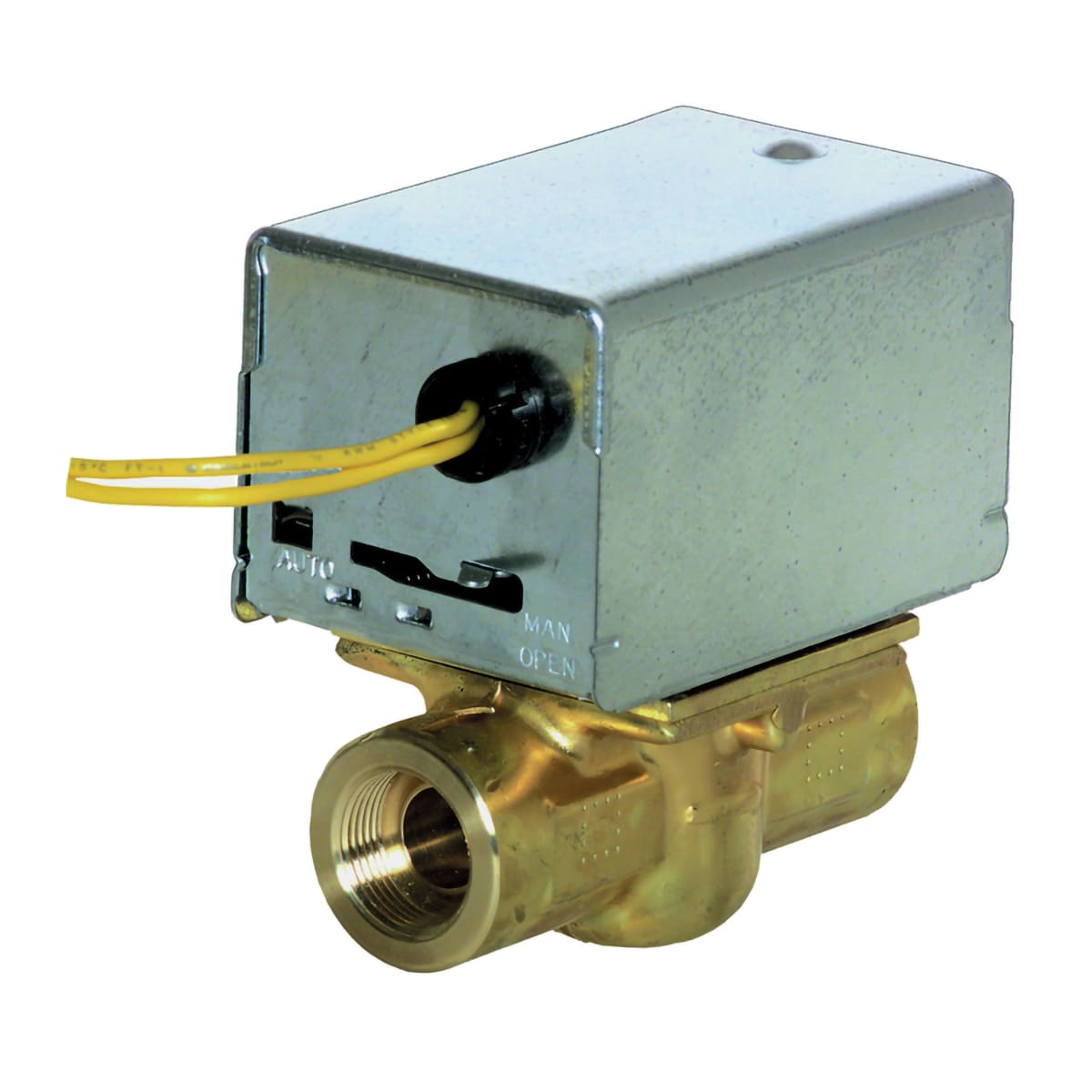

Resideo V8043C1124/U 24 Vac 1/2 in Invert-Flare N.C. Zone Valve

Product Description

The Resideo V8043C1124/U is a two-way, on-off low voltage zone valve designed for maintaining hot water flow in hydronic heating systems. This valve includes an actuator and valve assembly which operates efficiently to ensure proper water distribution. A key feature is the manual opener that enables operation even during power outages, reverting to automatic mode once power is restored.

• Designed for quick installation and compact construction
• Manual opener for reliability during power failure
• Compatible with various heating and cooling systems

Product Highlights

The Resideo V8043C1124/U valve supports effective hydronic control for heating applications.

Product Information

Standard Information

• Brand: Resideo
• Part Number: HONE-V8043C1124/U

Technical Specifications

• Application: Hydronic Control
• Valve Ball Material: Buna-N (NBR) Rubber
• Connection Type: Flare
• Compatible With: Heating and cooling systems
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
• Includes: Less Adapters, Manual Opener
• Warranty: 1 Year
• Approvals and Standards: CSA Certified: File 1322
