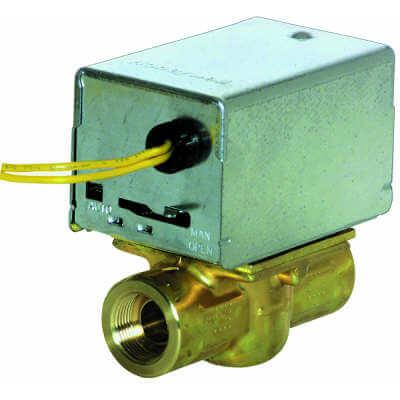

Resideo V8043C1124 1/2 Inch Inverted Flare Zone Valve 3.5Cv 24Vac 18 Inch Leads

Product Description

The Resideo V8043C1124 1/2 inch Inverted Flare Zone Valve is specifically designed for controlling the flow of hot water in HVAC systems. This model, known for its robust construction and reliable operation, is ideal for residential and light commercial applications.

• Features a manual opener for functionality during power outages.
• Allows for installation without disassembling or draining the system.
• Equipped with a 3.5 Cv flow capacity and operates on a 24V control voltage.

Product Highlights

Constructed from durable galvanized steel, the Resideo V8043C1124 ensures a long service life and resistance to corrosion. Its compact design facilitates easy installation in tight spaces. This valve offers a convenient solution for zone control in heating systems, with the capability to handle a maximum differential pressure of 20 psi and temperature ranges from 50°F to 200°F.

Product Information

Standard Information

• Electrical Connections: 18 inch leads
• Operating Voltage: 24 volts

Technical Specifications

• Body Material: Brass
• Stem Material: Stainless Steel
• Sealing Material: EPDM O-rings
• Control Feature: Spring return to close
• Dimensions: 4 inches high x 3-5/8 inches wide x 2-3/8 inches deep
• Max Static Pressure: 125 psi
• Power Consumption: 7.7 VA
