Resideo V8043B1076 Zone Valve 3/4 NPT 24V NO 3.5CV

Product Description

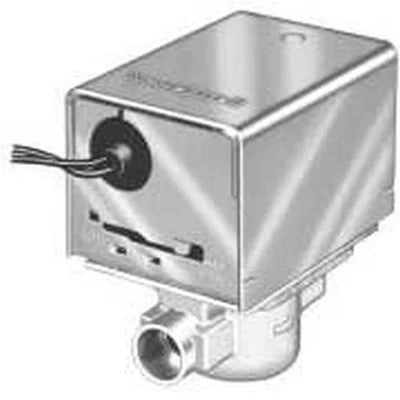

The Resideo V8043B1076 is a high-performance zone valve designed for controlling the flow of hot water in HVAC systems. Crafted with a durable brass body, this valve ensures longevity and robustness.

• 3/4 NPT connection size ensures compatibility with standard pipelines.
• Electrically powered at 24V for seamless integration into control systems.
• Features a 3.5CV actuator for rapid and precise response.

Product Highlights

Equipped with a spring-loaded diaphragm, the V8043B1076 provides reliable on/off operations essential for HVAC efficiency. Its compact design allows for easy installation without the need to disassemble, making it an ideal choice for both new systems and upgrades.

Product Information

Standard Information

• Brand: Resideo
• MPN: V8043B1076

Technical Specifications

• Connection Type: NPT
• Body Type: Two-way, Straight-through
• Operation: Normally Open
• Electrical Connection: 18 in leads
• Max Close-Off Pressure: 20 psi
• Fluid Temperature Range: 40°F to 200°F
• Power Consumption: 7.7 VA
